5.2 High Performance Model QCPU, Process CPU and Redundant CPU
5.2.8 Execution of standard ROM/memory card programs (boot run)
5
MEMORIES AND FILES HANDLED BY CPU MODULE
(b) Boot file by GX Developer
To execute the programs in the standard ROM or memory card, set the names of
files to be booted (read) to the program memory in the boot file of the PLC
parameter dialog box.
(c) Hardware setting for boot run
Set the parameter-valid drive DIP switches to indicate the memory that will store
the parameters.
When executing boot run, set the parameter storage location to the standard
ROM or memory card. ( (5)(a)in this section)
(d) Installation of memory card
When storing files to a memory card by boot run, install the memory card into the
High Performance model QCPU, Process CPU or Redundant CPU.
(e) Writing parameters and programs by GX Developer
Write the parameters to the memory set by the parameter-valid drive DIP
switches.
Also, write the files set in the boot file setting in (b) to the transfer source memory.
(f) Program execution
Reset the CPU with the RESET/L.CLR switch.
The BOOT LED turns on upon completion of the boot from the specified memory.

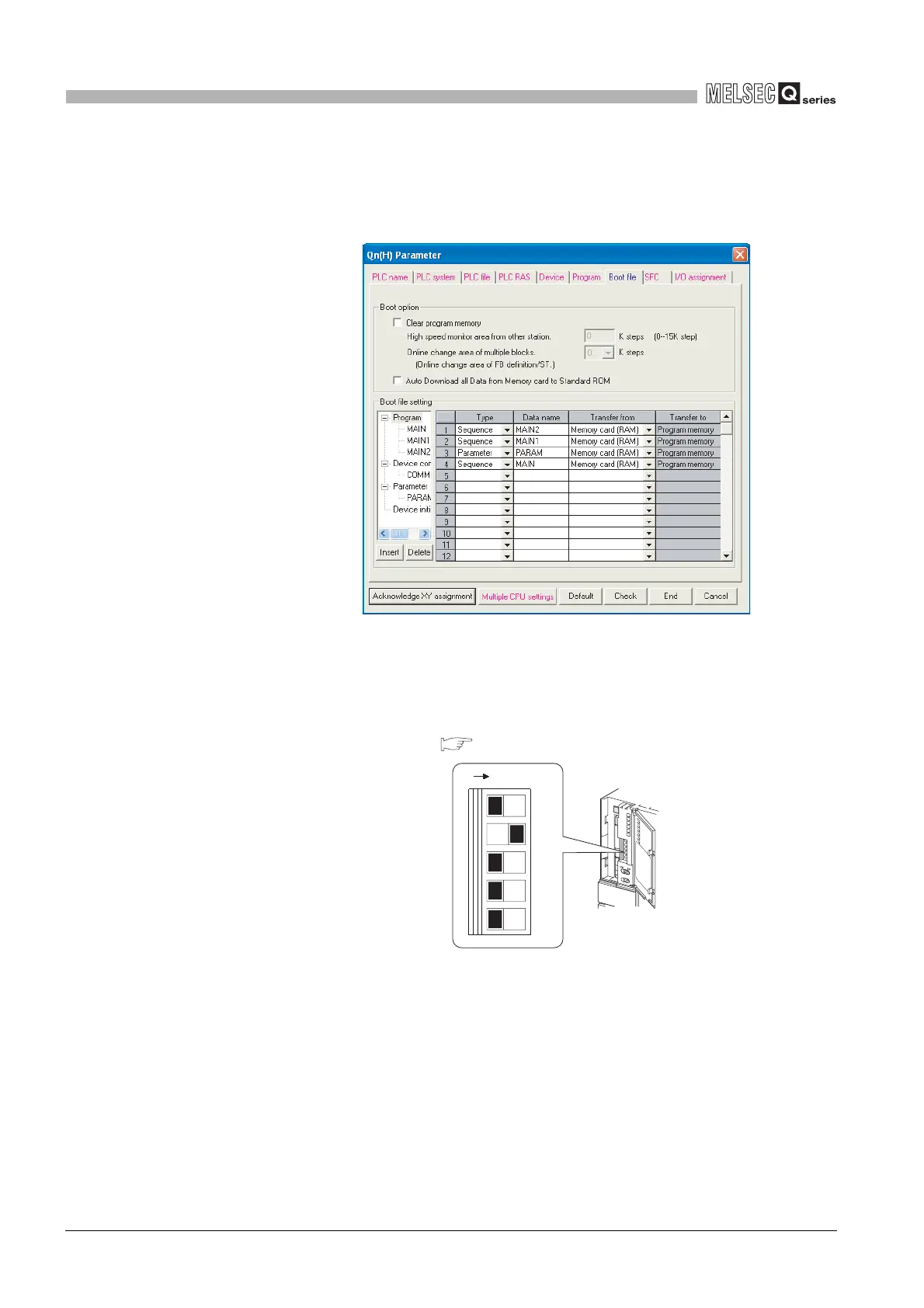

Diagram 5.34 Boot file
Diagram 5.35 When parameter-valid drive DIP switches are set to SRAM card
1
2
3
4
5
ON SW
