8
PARAMETERS
8.1 PLC Parameters
8.1.1 Basic model QCPU
8
- 9
1
Overview
2
Performance
Specification
3
Sequence Program
Configuration and
Execution Conditions
4
I/O Nunber Assignment
5
Memories and Files
Handled by CPU Module
6
Functions
7
Communication with
Intelligent Function
Module
8
Parameters
(8) I/O assignment
Set the mounting status of each module in the system.
(Continued on next page)

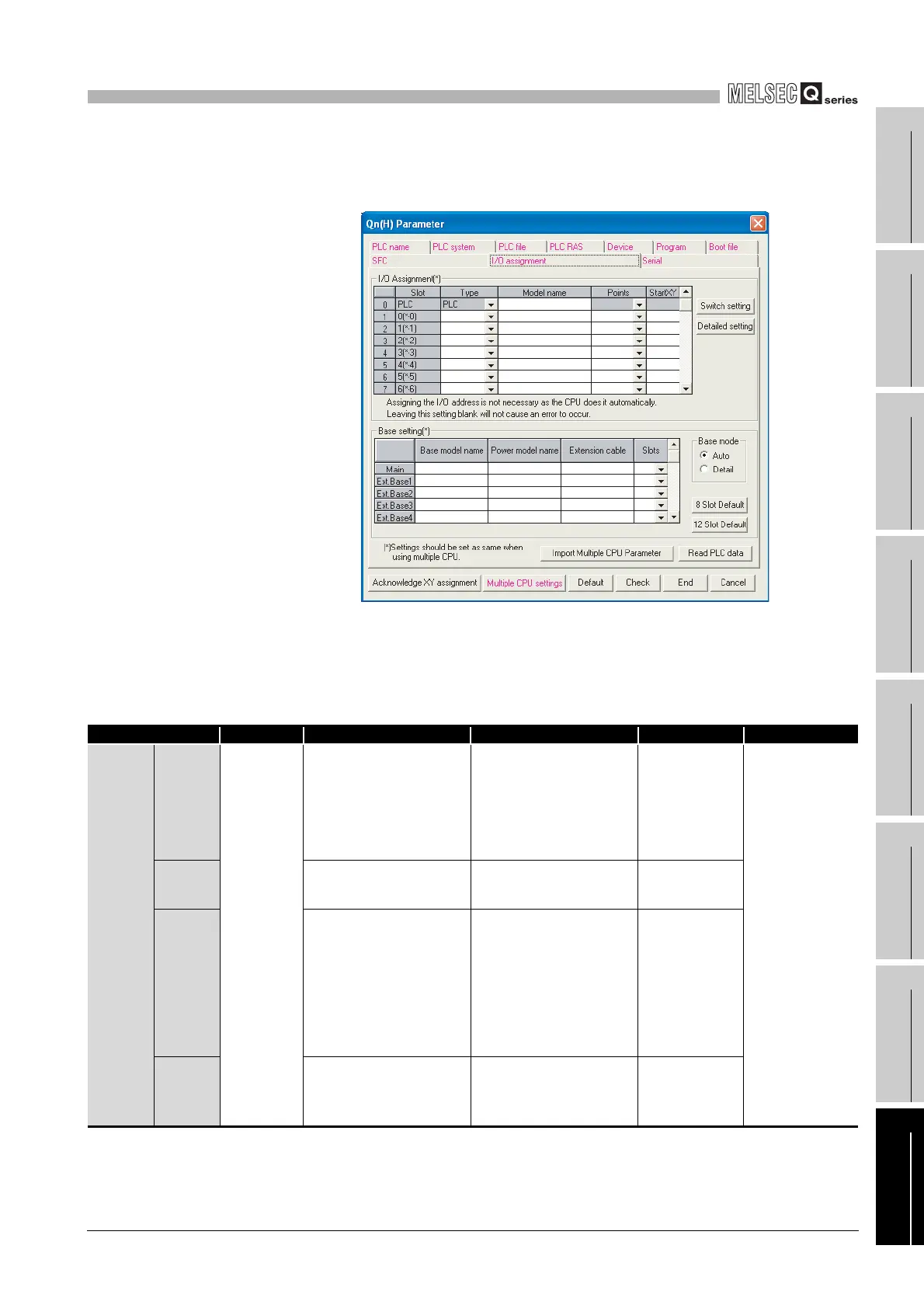

Diagram 8.8 I/O assignment
Table8.8 I/O assignment list
Item Parameter No. Description Setting range Default value Reference
I/O
assignment
Type
0400
H
Set the type of the mounted
module.
CPU No. 2 to No. 3: No. n/
empty (Set "CPU (Empty)" on
the slot not mounted with the
CPU module.)
Empty, input, high-speed
input, output, intelli., hybrid I/
O, interrupt
No setting
Section 4.7
Model
name
Set the model name of the
mounted module. (User memo.
Not used for the CPU module.)
16 characters No setting
points
Set the number of points of each
slot.
[ Q00JCPU ]
0 points, 16 points, 32 points,
48 points, 64 points, 128
points, 256 points
[ Q00CPU, Q01CPU ]
0 points, 16 points, 32 points,
48 points, 64 points, 128
points, 256 points, 512 points,
1024 points
No setting
Start XY
(Start I/O
No.)
Set the start I/O number of each
slot.
[ Q00JCPU ]
0
H
to F0
H
[Q00CPU, Q01CPU ]
0
H to 3F0H
No setting
