10.1 Scan Time
10.1.2 Time required for each processing included in scan time
10
CPU MODULE PROCESSING TIME
(Example)

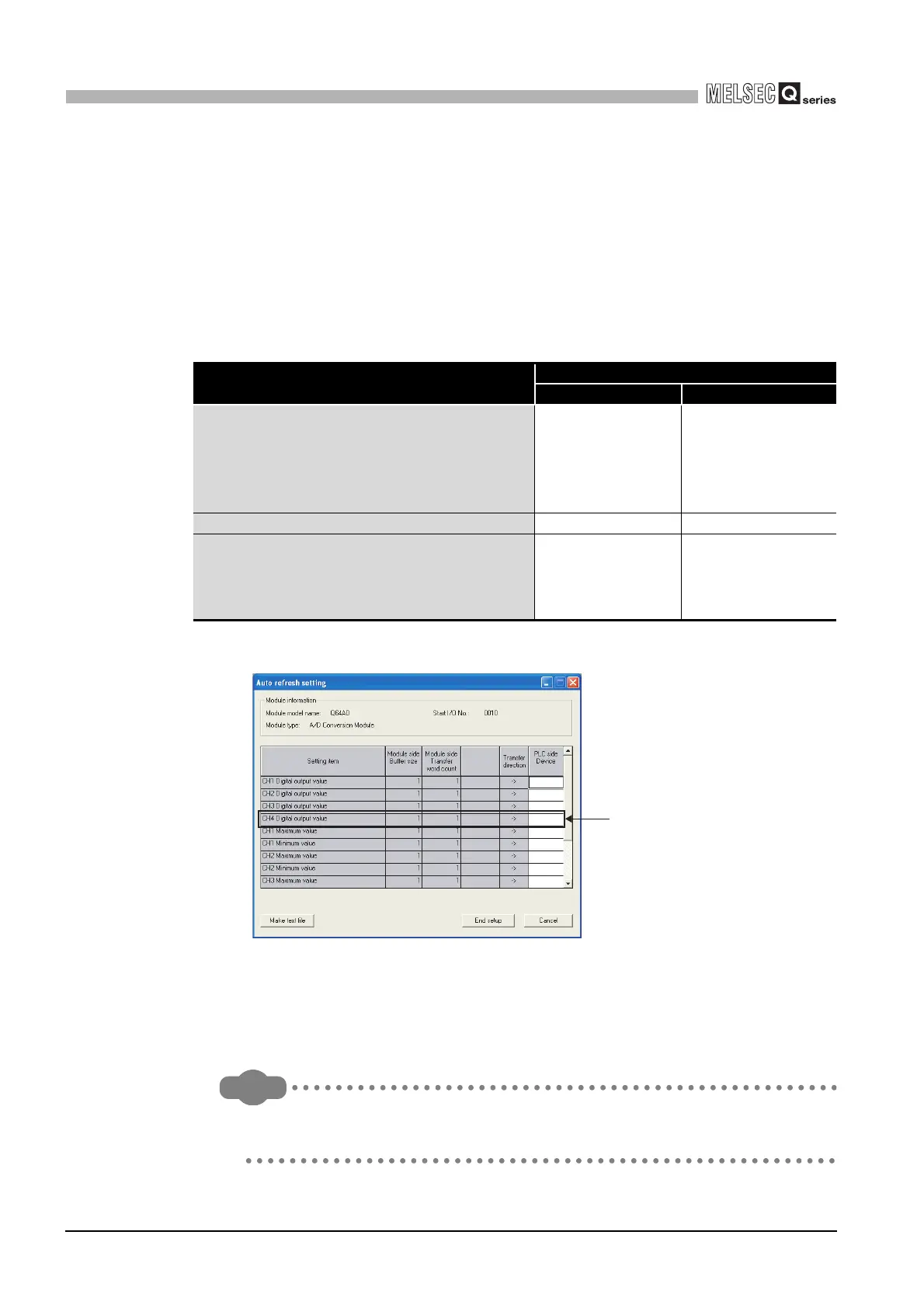

When the number of auto refresh points for the analog-digital conveter module
(Q64AD) is 4 points (when the module is mounted on the Q01CPU main base
unit)
0.249(ms) = 0.085 + 0.041 4
(7) Service processing time
Service processing indicates the processing for communication with GX Developer
and external device.
(a) Basic model QCPU
• Monitor by GX Developer
This indicates the processing time taken to execute monitor by GX
Developer.
* 1 : Time taken to read an 8k-step program from the program memory.
* 2 : Time taken when 32 points have been set in registration monitor.
* 3 : Time taken when a 100-step ladder is added.
* 4 : Time taken when access is made via the MELSECNET/H, Ethernet, CC-Link or serial
communication module.
• Communication with serial communication module or Ethernet interface
module
This indicates the time taken to communicate with the serial communication
module or Ethernet module.
Refer to the following manual for the time taken for communication with each
module.
Q Corresponding MELSECNET/H Network System Reference
Manual
Table10.11 When intelligent function module is mounted on extension base unit
CPU module KN1 KN2
Q00JCPU 120 s 56 s
Q00CPU 92 s 48 s
Q01CPU 86 s 43 s
Q02CPU 61 s 15 s
Q02HCPU, Q06HCPU,
Q12HCPU, Q25HCPU,
Q12PHCPU, Q25PHCPU,
Q12PRHCPU, Q25PRHCPU
29 s 8 s
Table10.12 Monitor processing time by GX Developer
Function
When connected to RS-232 of host station
CPU module
When connected to other station
*4
Q00JCPU Q00CPU Q01CPU Q00JCPU Q00CPU Q01CPU
Read of program from PLC
*1
1.6ms 1.3ms 1.2ms 2.3ms 1.9ms 1.8ms
Device monitor
*2
1.2ms 1.0ms 0.9ms 2.4ms 2.0ms 1.9ms
Online program
change
*3
1.0ms 1.0ms 1.0ms 1.9ms 1.6ms 1.5ms
