9
PARAMETERS
9.1 PLC Parameters
9.1.2 High Performance model QCPU, Process CPU, Redundant CPU, Universal model QCPU
9 - 31
9
Parameters
10
Device Explanation
11
CPU Module Processing
Time
12
Procedure for Writing
Program to CPU ModuleAppendicesIndex
(13) Built-in Ethernet port
Note9.4
Note3
Make settings required for using built-in Ethernet ports of the Built-in Ethernet port
QCPU.
Note3

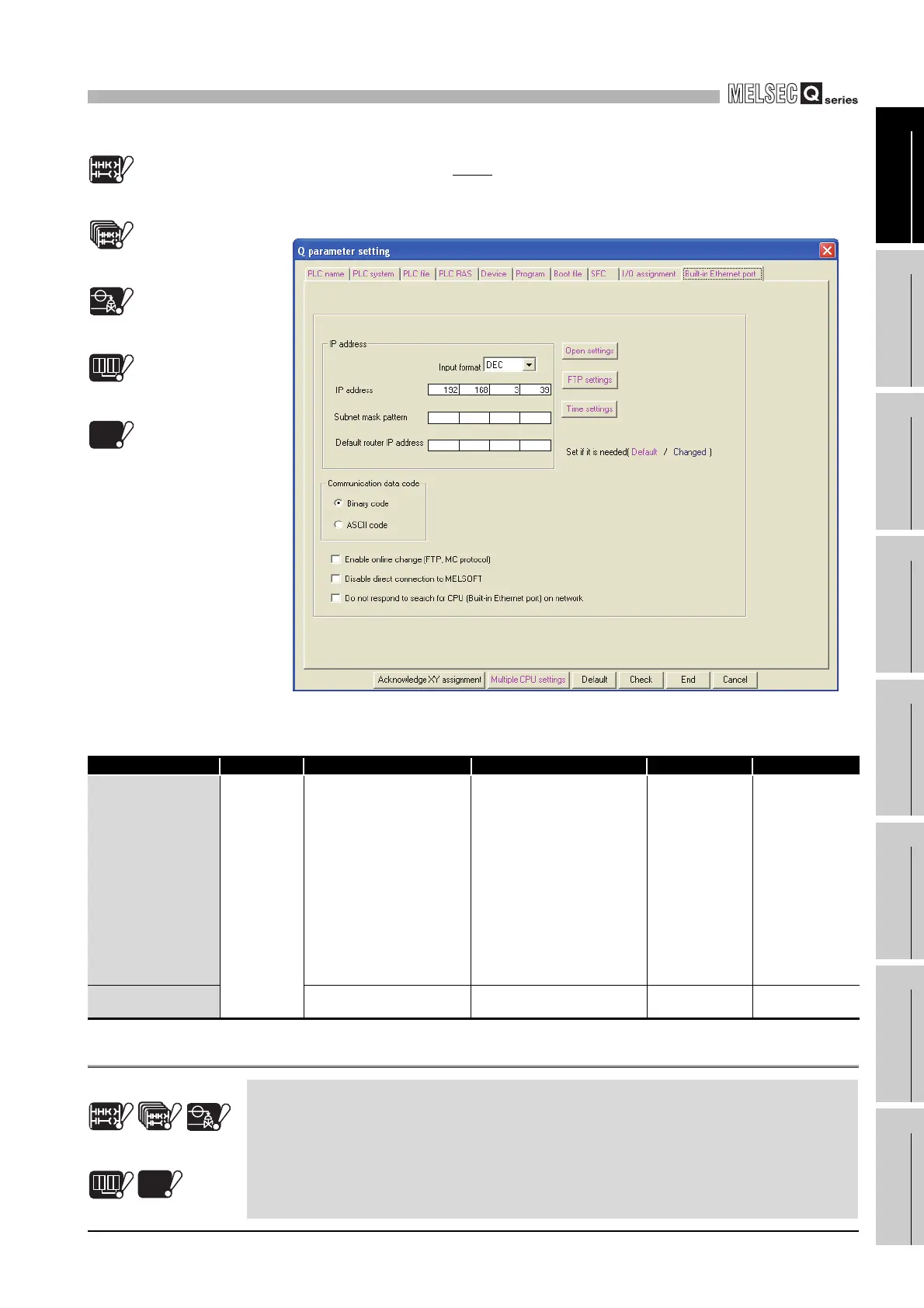

Figure 9.24 Built-in Ethernet port
Table9.25 Built-in Ethernet por setting list
Item Parameter No. Description Setting range Default value Reference
IP address
1016
H
IP address :
Specify the QnUDE(H)CPU IP
address.
Subnet mask pattern:
Specify the subnet mask for
communication via routers.
Default router IP address:
Specify the router IP address for
communication via routers.
IP address :
0.0.0.1 to 223.255.255.254
(00000001
H
to 0DFFFFFFE
H
)
Subnet mask pattern:
None/
192.0.0.0 to 255.255.255.252
(0C0000000
H
to 0FFFFFFFC
H
)
Default router IP address:
None/
0.0.0.1 to 223.255.255.254
(00000001
H
to 0DFFFFFFE
H
)
IP address :
192.168.3.39
Subnet mask
pattern: None
Default router IP
address: None
Section 7.2
Communication data
code
Select the code, Binary or ASCII,
for MC protocol communication.
Binary code/ASCII code Binary code Section 7.4
Basic
Note9.4
Note9.4
Note9.4
High
Performance
Process
Note9.4
Redundant
Universal
UD
Note9.4
Only the Built-in Ethernet port QCPU can use the parameter settings on the Built-in Ethernet port
tab.
Basic
Redundant
Note9.4
Process
High
Performance
Note9.4Note9.4
Note9.4
Universal
UD
Note9.4
