Model Rated Load Voltage
(17)
A1SY82 12/24 VDC
Y00
Y08
Y01
Y07
Y02
Y04
Y05
Y06
Y09
Y03
Y0A
Y0B
Y0C
Y0D
Y0E
Y0F
Y10
Y11
Y12
Y13
Y14
Y15
Y16
Y17
Y18
Y19
Y1A
Y1B
Y1C
Y1D
Y1E
Y1F
B20 A20
B19 A19
B18 A18
B17 A17
B16 A16
B15 A15
B14 A14
B13 A13
B12 A12
B11 A11
B10 A10
B9 A9
B8 A8
B7 A7
B6 A6
B5 A5
B4 A4
B3 A3
B2 A2
B1
A1
5/12VDC
+
-
5/12VDC
COM
COM
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
Vacant
Vacant
Vacant
Vacant

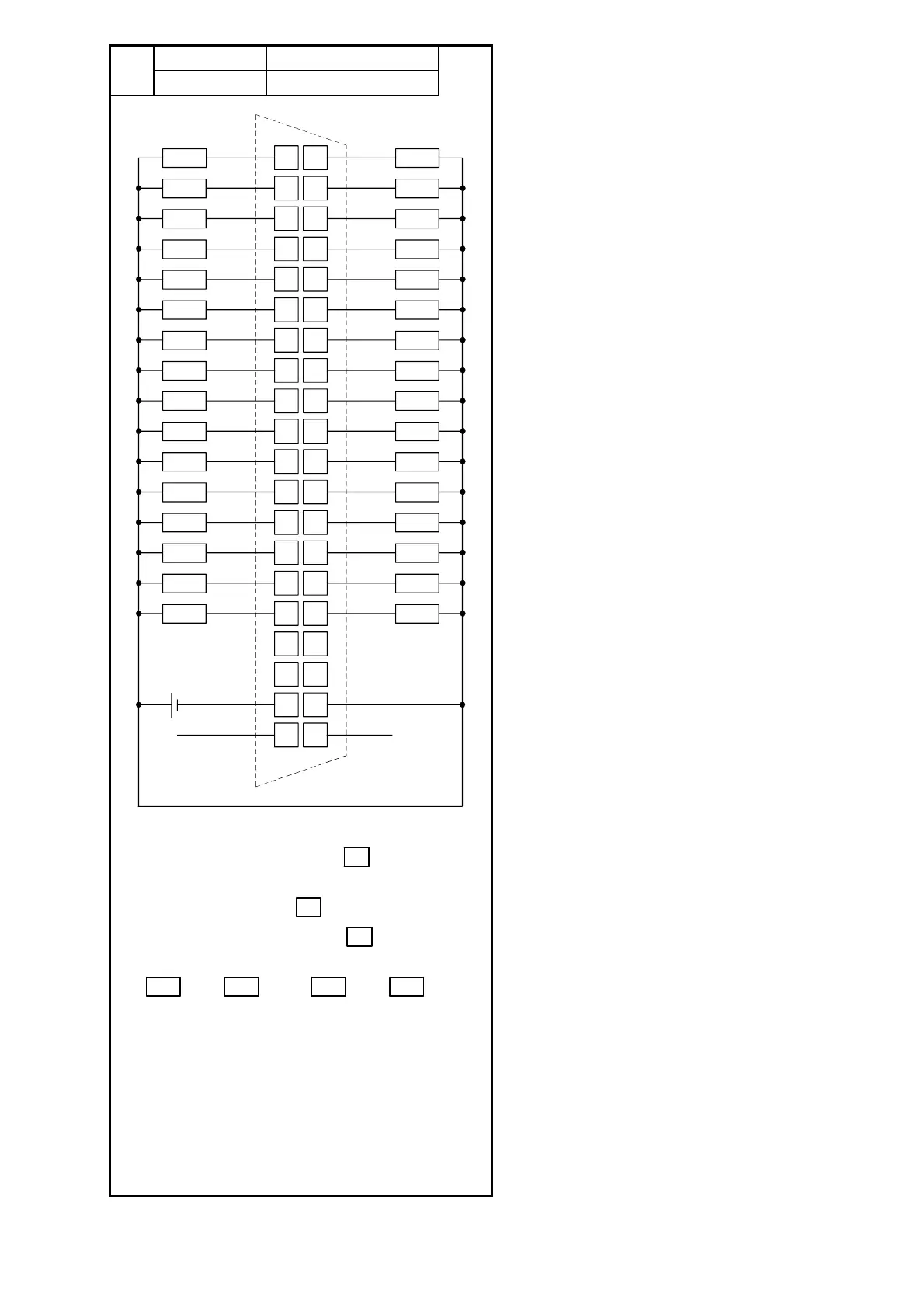

*1 The figure above indicates F (the first half
32 points).
The connections for
L (the latter half 32
points) are the same as for F (regard Y00
to Y1F as Y20 to Y3F.)
B1 and B2 , and A1 and A2 , are
connected internally.
*2 The A and B pin number rows shown above
are transposed with respect to the diagram of
the A and B rows which is printed on the
module. Remember that the A row pin
numbers correspond to the B row of the
module.
