1 PRODUCT OUTLINE

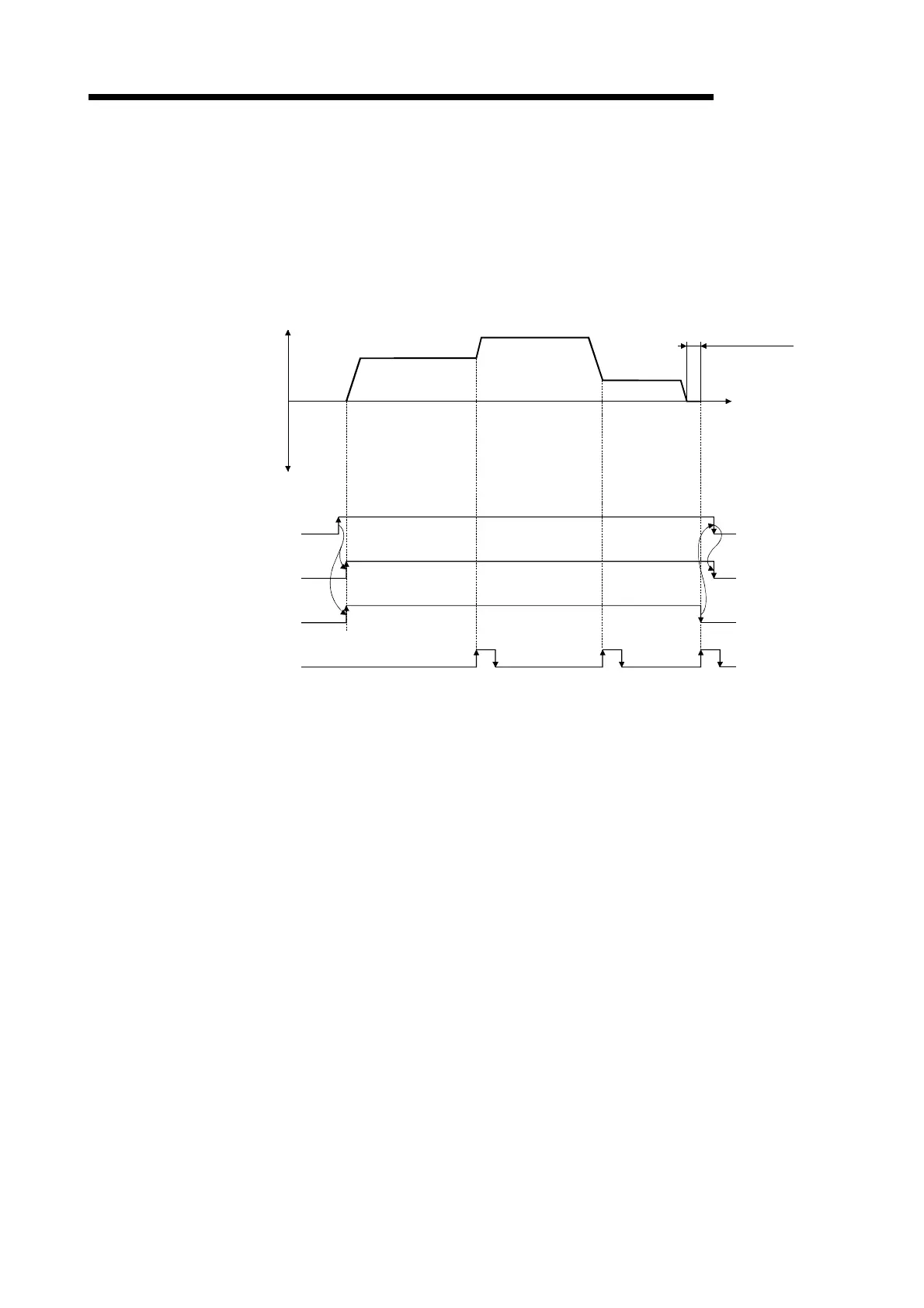

(3) Continuous path control (operation pattern = 11: positioning
continue)
After executing positioning using the specified positioning data, the operation
changes its speed to that of the next positioning data number and continues
positioning.
This is specified when continuously executing multiple positioning data items
having consecutive positioning data numbers at a specified speed.
ON
ON
ON
OFF
OFF
OFF
OFF
V
Address(+)
direction
Address(-)
direction
Dwell time
t
Positininig start signal
Positioning start
complete signal
BUSY signal
Positioning complete
signal
ON
(By the sequence
program creation)
Positioning continue (11)
Positioning continue (11)
Positioning
terminated
(00)
