'16 • SCM-T-199

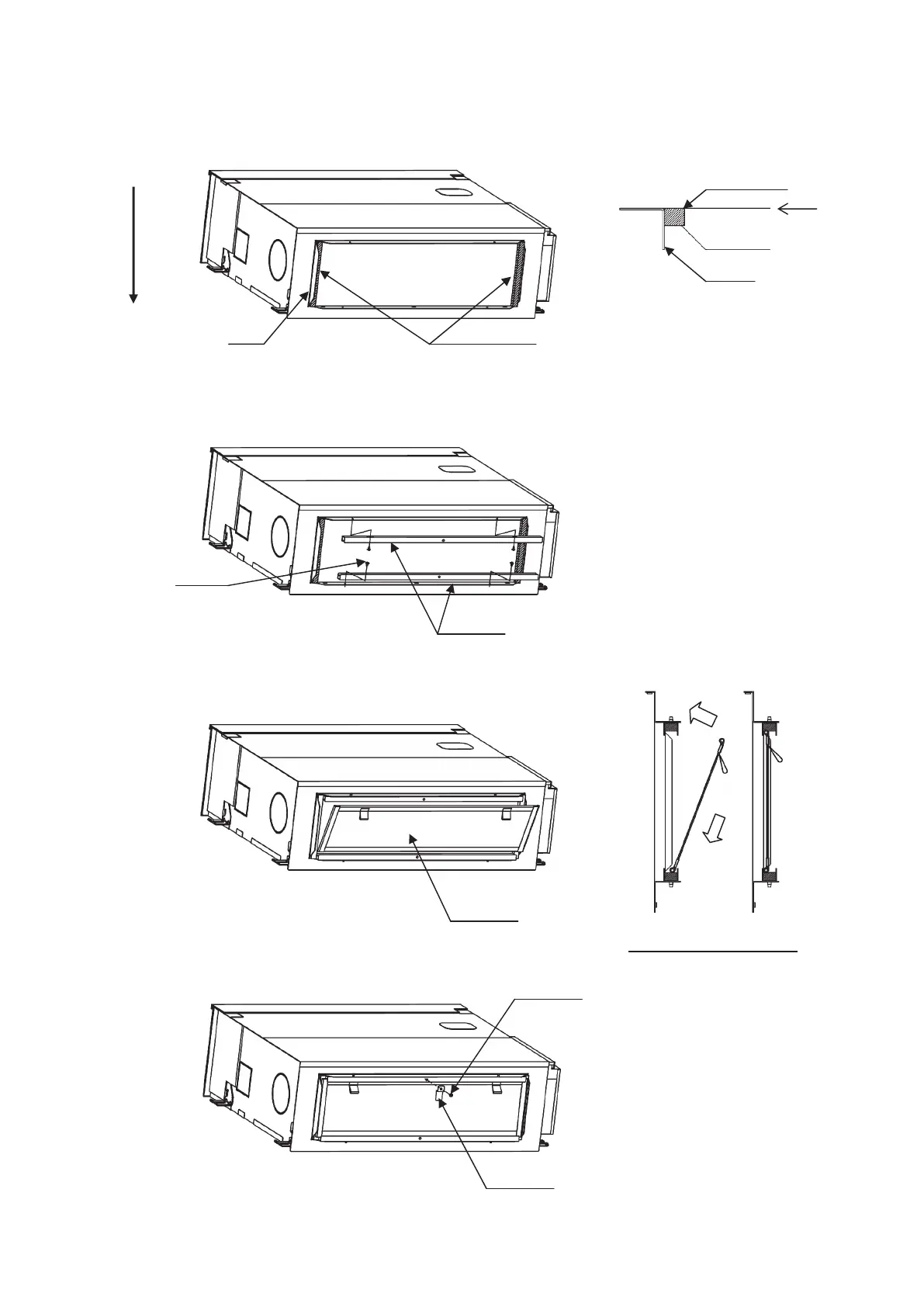

3. Installation Points
(1) Stick the insulation on both inner sides of the duct, leaving no space up and down.
BOTTOM
(Unit inside)
(Unit outside)
TOP
(*) After unpacking, bottom side of the unit is located at the upper side.
(2) Install the rail on both inner sides of the duct with the screw.
(3) Install the air filter on the rails.
Installation procesure
(4) Install the bracket on the rail with the screw.
PJZ012D076
(**) When the unit is installed,
bottom side of the unit is
located at the lower side.
Insulation
Rail
Screw
Air filter
①
②
③
Bracket
Screw
Insulation
Duct
Sticking standard position
for insulation
InsuDuct lation
3. Installtion Points
