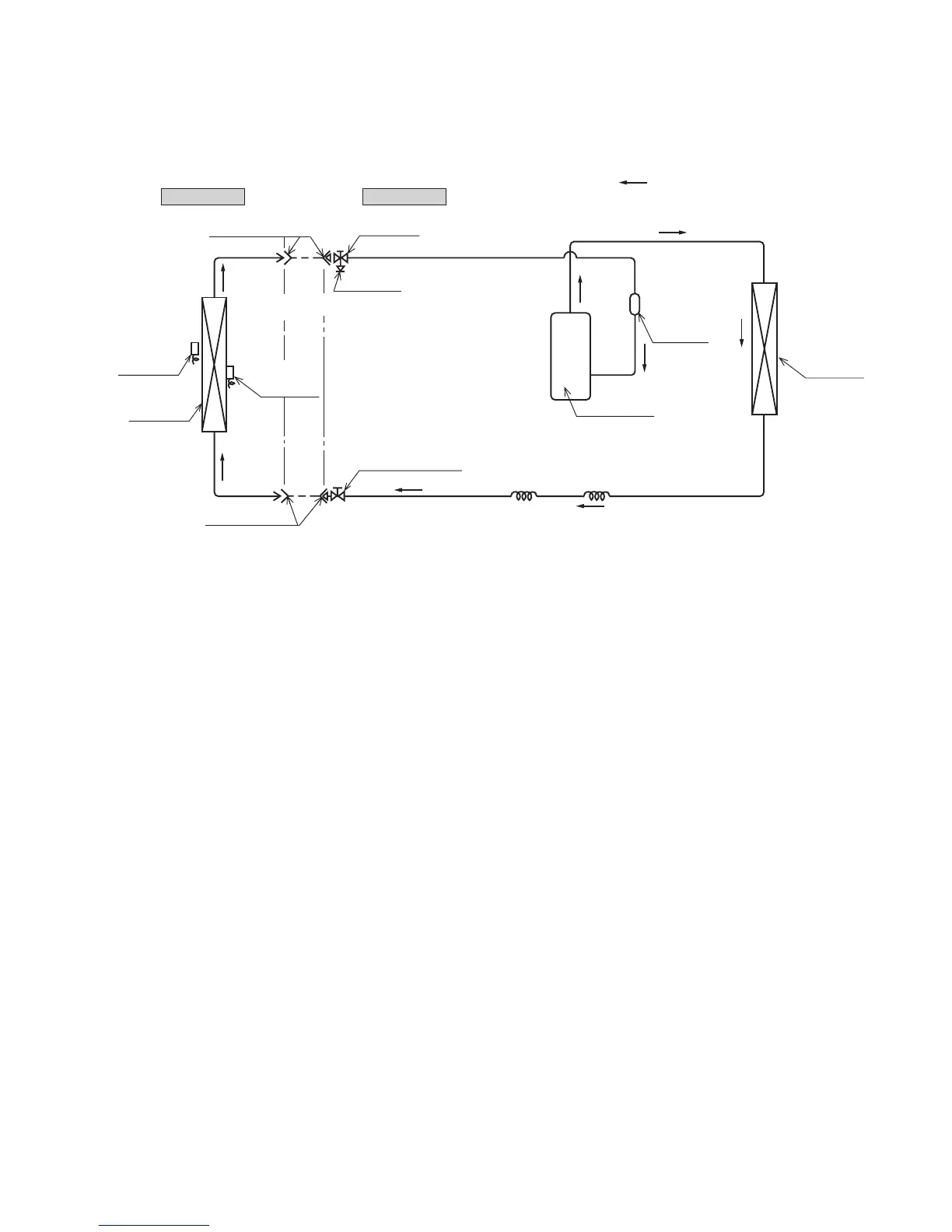

5. PIPING SYSTEM
Outdoor unitIndoor unit
Room temp.
sensor
Heat
exchanger
Flare connecting
Heat
exchanger
sensor
Liquid
pipe
ø6.35
Check joint
Service valve (Liquid)
Flare connecting
Heat
exchanger
Compressor
Capillary tube
Accumulator
Service valve
Cooling cycle
(Gas)
Capillary tube
10 : ø9.52
Gas pipe
13 : ø12.7
( )
All models
