① A place where good air circulation can be obtained and where rain,
snow or sunshine will not directly strike the unit.
② A place where discharged hot air or unit’s operating sound will not
be a nuisance to the neighborhood.
③ A place where servicing space can be secured.
④ A place where vibration will not be enlarged.
*Avoid installing in the following places.
s! place near the bedroom and the like, so that the operation noise
will cause no trouble.
s
A place where there is possibility of flammable gas leakage.
s!PLACEexposed to strong wind.
s)N a salt-laden atmosphere or a place where the generation of oil
mist, vapor or fume is expected.
⑤ Blowing out port and suction port on the back side of the unit can be
installed at a distance of 10cm from walls.
)NCASETHEBARRIERISMORABove in height, or is overhead, the
sufficient space between the unit and wall shall be secured.
⑥ When the unit is installed, the space of the following dimension and
above shall be secured.
OUTDOOR UNIT
Note (1) )F the wall is higher than m or a ceiling
is present, distances larger than indicated
in the above table must be provided.

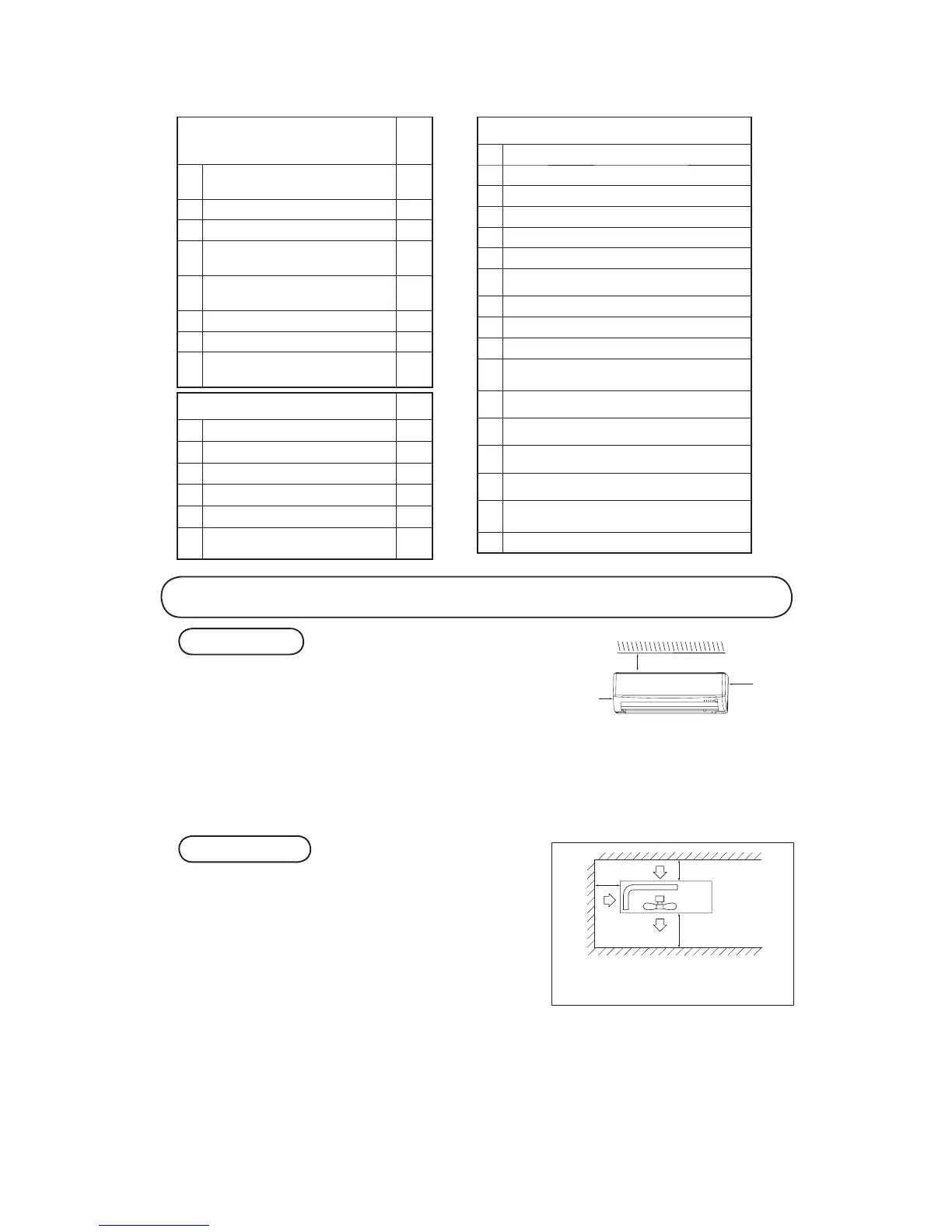

Selection of installation location
① Where there is no obstructions to the air flow and where the cooled
air can be evenly distributed.
② A solid place where the unit or the wall will not vibrate.
③ A place where there will be enough space for servicing. (Where
space mentioned right can be secured)
④ Where wiring and the piping work will be easy to conduct.
⑤ The place where receiving part is not exposed to the direct rays of
the sun or the strong rays of the street lighting.
⑥ A place where it can be easily drained.
⑦
A place separated at least 1m away from the television or the radio.
(To prevent interfence to images and sounds.)
⑧ A place that home appliance and household goods, etc. aren’t
below unit.
INDOOR UNIT
10 cm
5 cm
10 cm
Left
side
CM-).
Air intake
CM-).
10 cm
-).
Air outlet
Air
intake
No obstacles
(Service space
for electrical
parts)
Right
side
)(
Standard accessories
)NSTALLATIONKIT
Accessories for indoor unit
Q'ty
①
)NSTALLATIONBOARD
(Attached to the rear of the indoor unit)
1
②
Wireless remote control 1
③
Remote control holder
④
Tapping screws
FORINSTALLATIONBOARDDIABYMM
⑤
Wood screw
FORREMOTECONTOROLSWITCHHOLDERDIABYMM
⑥
"ATTERY;2!!!-ICRO6]
⑦
Air-cleaning fi sretl
⑧
Filter holders
(Attached to the front panel of the indoor unit)
Option parts Q'ty
ⓐ
Sealing plate 1
ⓑ
Sleeve 1
ⓒ
)NCLINATIONPLATE 1
ⓓ
Putty 1
ⓔ
Drain hose (extention hose) 1
ⓕ
Piping cover
(for insulation of connection piping)
1
Necessary tools for the installation work
1 Plus headed driver (Phillips screwdriver)
Knife
3 Saw
4 Tape measure
Hammer
6 Spanner wrench
7 Torque wrench
(
^.qM
^KGFqM
)
8 (OLECOREDRILLMMINDIAMETER
9 Wrench key (Hexagon) [4m/m]
10 6acuum pump
11
6acuum pump adapter
(Anti-reverse flow type)
(
Designed specifically
for R410A
)
1 Gauge manifold
(
Designed specifically
for R410A
)
13 Change hose
(
Designed specifically
for R410A
)
14 Flaring tool set
(
Designed specifically
for R410A
)
1 Gas leak detector
(
Designed specifically
for R410A
)
16
Gauge for projection adjustment (Used when flare is
made by using conventional flare tool)
17 Pipe bender
