– 33 –

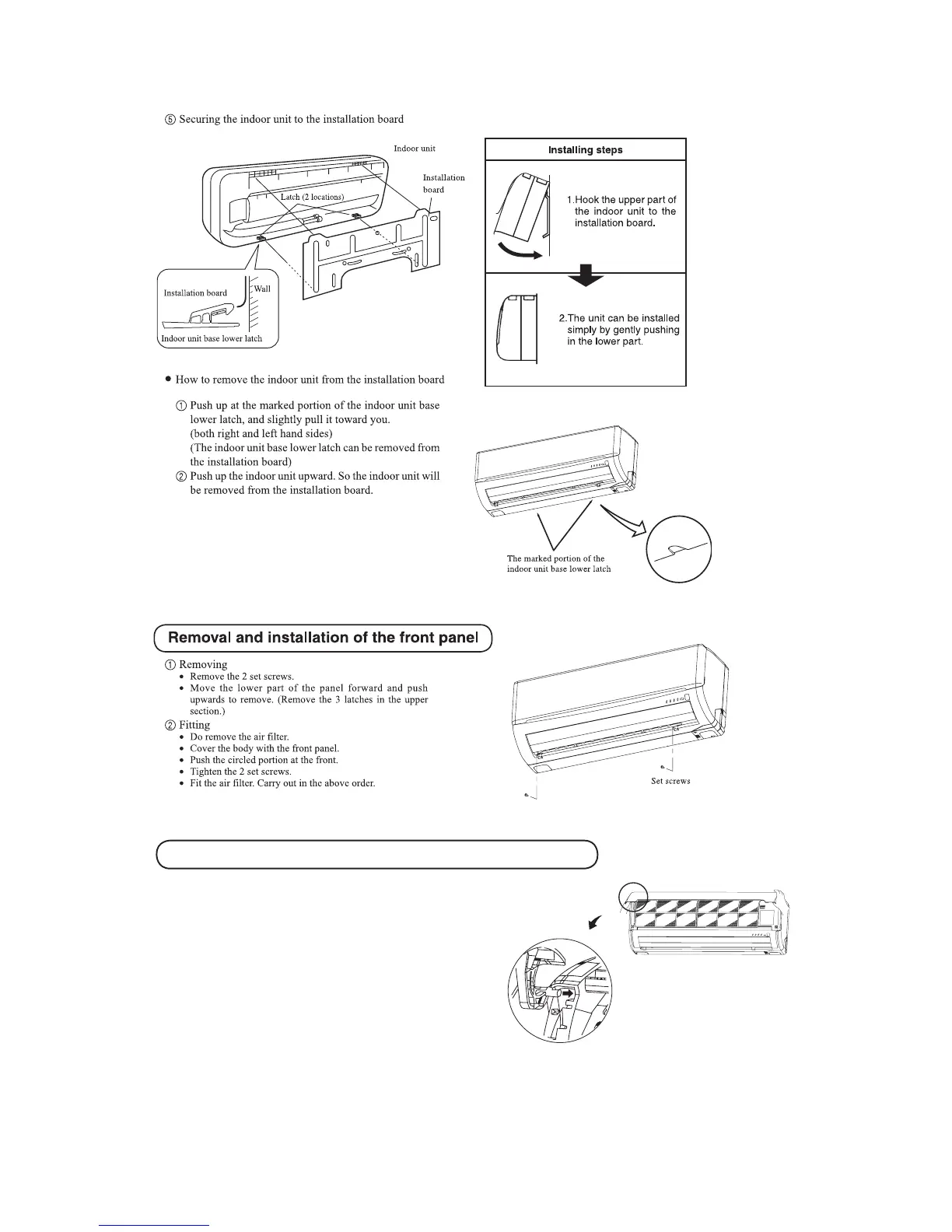

Open/close and detachment/attachment of air inlet panel
1 To open, pull the panel at both ends of lower part and release
latches, then pull up the panel until you feel resistance. (The
air inlet panel stops at approx. 60˚ open position.)
2 To close, hold the panel at both ends of lower part to lower
downward and push it slightly until the latch works, then push
the center portion slightly.
3 To remove, pull up the panel to the position shown in right
illustration and pull it toward you.
4 To install, insert the air inlet panel arm into the slot on the
front panel from the position shown in right illustration, hold
the panel at both ends of lower part, lower it downward slowly,
then push it slightly until the latch works and further push the
center portion slightly.
RMA012A086_EN.indb 33 17/11/2014 15:17:38
