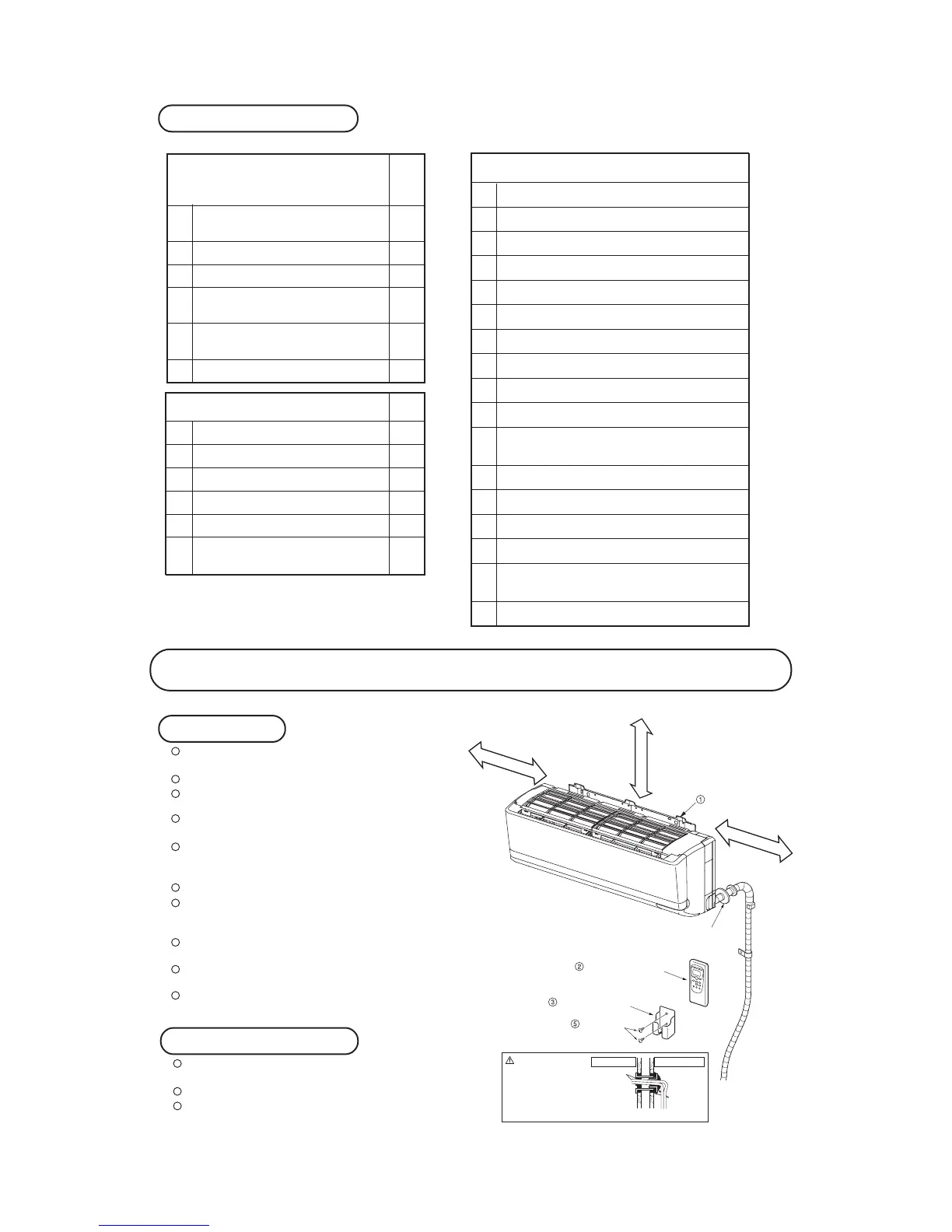

Necessary tools for the installation work
1 Plus headed driver (Phillips screwdriver)
2 Knife
3 Saw
4 Tape measure
5 Hammer
6 Spanner wrench
7 Torque wrench
8 Hole core drill (65mm in diameter)
9 Wrench key (Hexagon)
[4m/m]
10 Vacuum pump
11
Vacuum pump adapter
(Anti-reverse flow type)
12 Gauge manifold
13 Change hose
14 Flaring tool set
15 Gas leak detector
16
Gauge for projection adjustment (Used when flare
is made by using conventional flare tool)
17 Pipe bender
( )
Standard accessories
(Installation kit) Q'ty
Accessories for indoor unit
①
Installation plate
1
(Attached to the rear of the indoor unit)
② Wireless remote control 1
③ Remote contorol holder 1
④
Tapping screws
4
(for installation board 4dia. by 25mm)
⑤
Wood screw
2
(for remote contorol switch holder 3.5dia. by 16mm)
⑥
Baterry [R03 (AAA, Micro) 1.5V]
2
Option parts Q'ty
ⓐ 1etalpgnilaeS
ⓑ 1eveelS
ⓒ 1etalpnoitanilcnI
ⓓ 1yttuP
ⓔ Drain hose (extention hose) 1
ⓕ
Piping cover
1
(for insulation of connection piping)
Selection of installation location
Where there is no obstructions to the air flow and where
the cooled air can be evenly distributed.
A solid place where the unit or the wall will not vibrate.
A place where there will be enough space for servicing.
(Where space mentioned right can be secured)
Where wiring and the piping work will be easy to con-
duct.
The place where receiving part is not exposed to the di-
rect rays of the sun or the strong rays of the street light-
ing.
A place where it can be easily drained.
A place separated at least 1m away from the television or
the radio.
(To prevent interfence to images and sounds.)
A place that home appliance and household goods, etc.
aren’t below unit.
Avoid installing this unit in place where there is much oil
mist.
Places where there is no electric equipment or household
under the installing unit.
INDOOR UNIT
14.0 ~ 82.0N · m
(1.4 ~ 8.2kgf · m)
( )
Designed specifically
for R22
( )
Designed specifically
for R22
( )
Designed specifically
for R22
( )
Designed specifically
for R22
( )
Designed specifically
for R22
Before installation check that the power supply matches the air conditioner.
BEFORE INSTALLATION
(Install at location that meets the following conditions, after getting approval from the customer)
A place where the air conditioner can be received the sig-
nal surely during operating the wireless remote control.
Places where there is no affected by the TV and radio etc.
Do not place where exposed to direct sunlight or near
heat devices such as a stove.
Wireless remote control
Installation plate
5 cm mi
nimum
from the
w
all
10 cm mi
nimum
from the w
all
10 cm minimum from the ceiling
Wireless remote control
Remote control holder
Wood screws
Sleeve
(sold separately)
CAUTION
putty
putty
Indoor side
Outdoor side
Completely seal the hole
on the wall with putty.
Otherwise, furniture, or
other, may be wetted by
leaked water or dewing.
To Next Page
