114

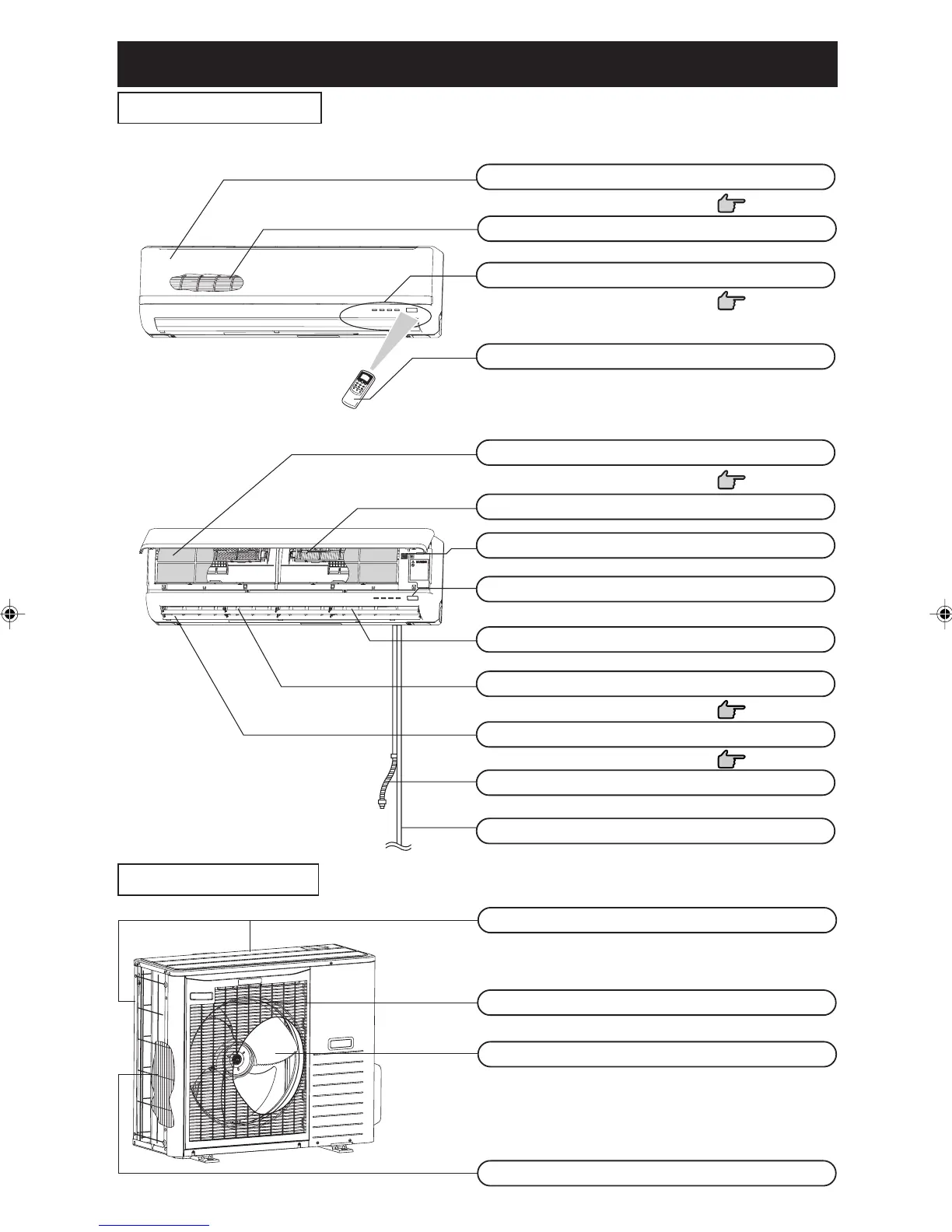

Naam en functie van de onderdelen
BINNENAPPARAAT
BUITENAPPARAAT
Luchtuitlaat
Luchtinlaat
(Aan de zijkanten en achterkant)
Ventilator buitenapparaat
Warmtewisselaar
SRK63ZK-S
SRK71ZK-S
SRK80ZK-S
Luchtreinigingsfilter
Luchtinlaatpaneel
Aanzuiging van de binnenlucht.
Luchtfilter
Verwijdert stof en vuil uit de ingevoerde lucht.
‘AAN/UIT’-knop op het apparaat
Kamertemperatuur detector
Aansluiting van koelvloeistofleidingen en elektrische bedrading
Flap voor bijstelling luchtstroom naar boven/beneden
Draadloze afstandsbediening
Aftapslang
Voert water af van het binnenapparaat.
Instellamellen voor aanpassing van de richting van de luchtstroom links/rechts
Luchtuitvoer
Uitvoer van lucht.
Display van het apparaat
Ventilator binnenapparaat
Pagina 126
Pagina 126
Pagina 120
Pagina 120
Pagina 115
RKW012A401B_NL_111-121 12/08/2010, 14:15114
