–4–

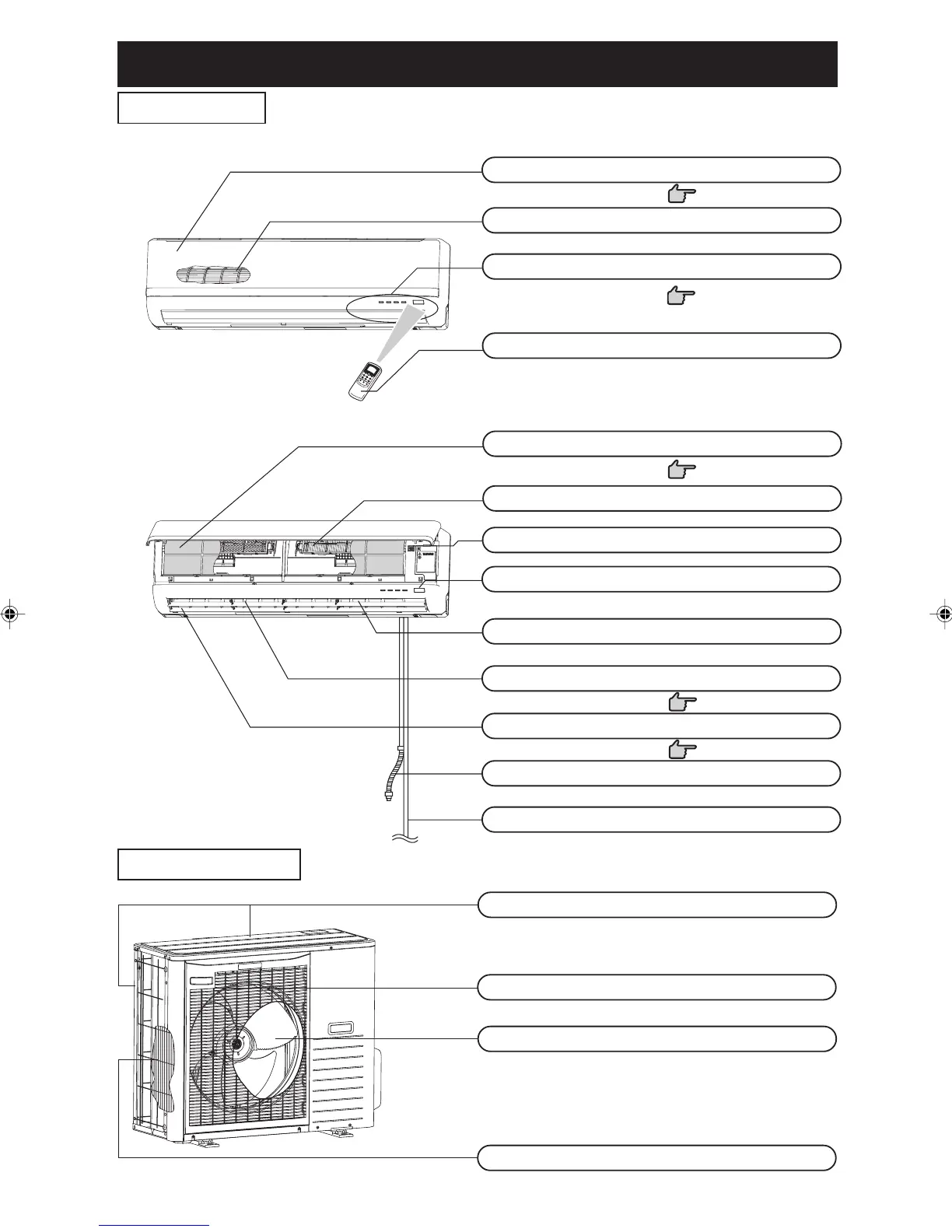

Name of each part and its function
INDOOR UNIT
OUTDOOR UNIT
Air outlet
Air inlet
(On side & rear surface)
Outdoor unit fan
Heat exchanger
SRK63ZK-S
SRK71ZK-S
SRK80ZK-S
Air inlet panel
Draws in the indoor air. Page 16
Indoor unit fan
Air filter
Removes dust or dirt from the inlet air. Page 16
Wireless remote control
Drain hose
Drains water from the indoor unit.
Left/right air flow direction adjustment louver
Page 10
Up/down air flow direction adjustment flap
Page 10
Air outlet
Air blows out of here.
Unit operation switch
Room temperature sensor
Air-cleaning filter
Refrigerant piping connection and electric wire
Unit display section
Page 5
RKW012A401B_EN_001-022 12/08/2010, 13:574
