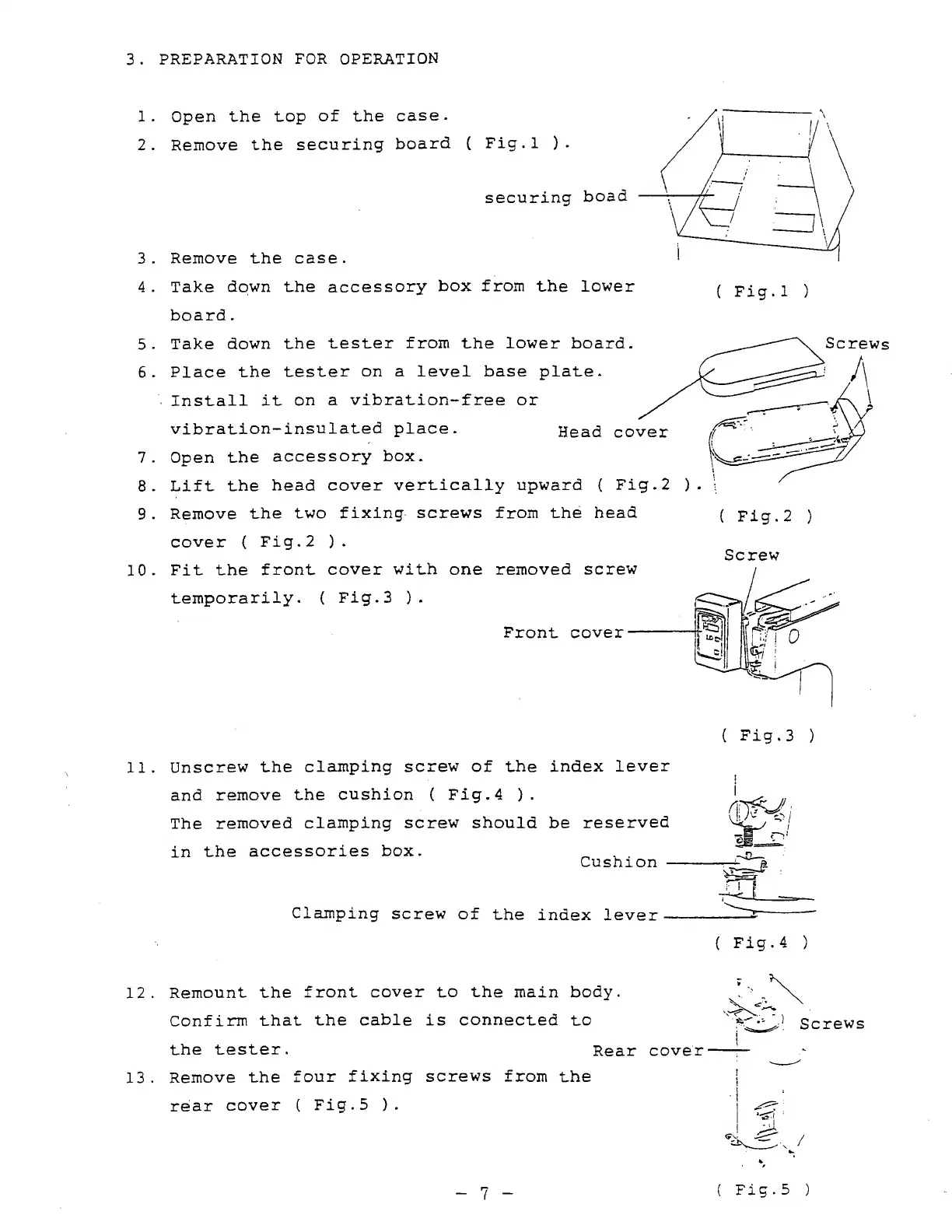

3. P R EPARATION FOR OPERATION
1. Open the top of the case.
2. Remove the securing board { Fig.l )
{ Fig.l )
securing boad
3. Remove the case.
4. Take down the accessory box from the lower
board.
5. Take down the tester from the lower board.
6. Place the tester on a level base plate.
Install it on a vibration-free or
vibration-insulated place. Head cover
7. Open the accessory box.
8. Lift the head cover vertically upward ( Fig.2 ). '
9. Remove the two fixing screws from the head ( Fig.2 )
cover ( Fig.2 ).
10. F i t the front cover with one removed screw
temporarily. ( Fig.3 ).
Front cover
Screw
11. U n s c r ew the clamping screw of the index lever
and remove the cushion ( Fig.4 ).
The removed clamping screw should be reserved
in the accessories box. „ . .
Cusnion -
Clamping screw of the index lever-
( Fig.3 )
!
( Fig.4 )
12 .
13 .
Remount the front cover to the main body.
Confirm that the cable is connected to
the tester. Rear
Remove the four fixing screws from the
rear cover { Fig.5 ).
7
{ Fig.5 )
