MK Sound MX-200 - Speaker Wire Connections

page 7powered subwoofers

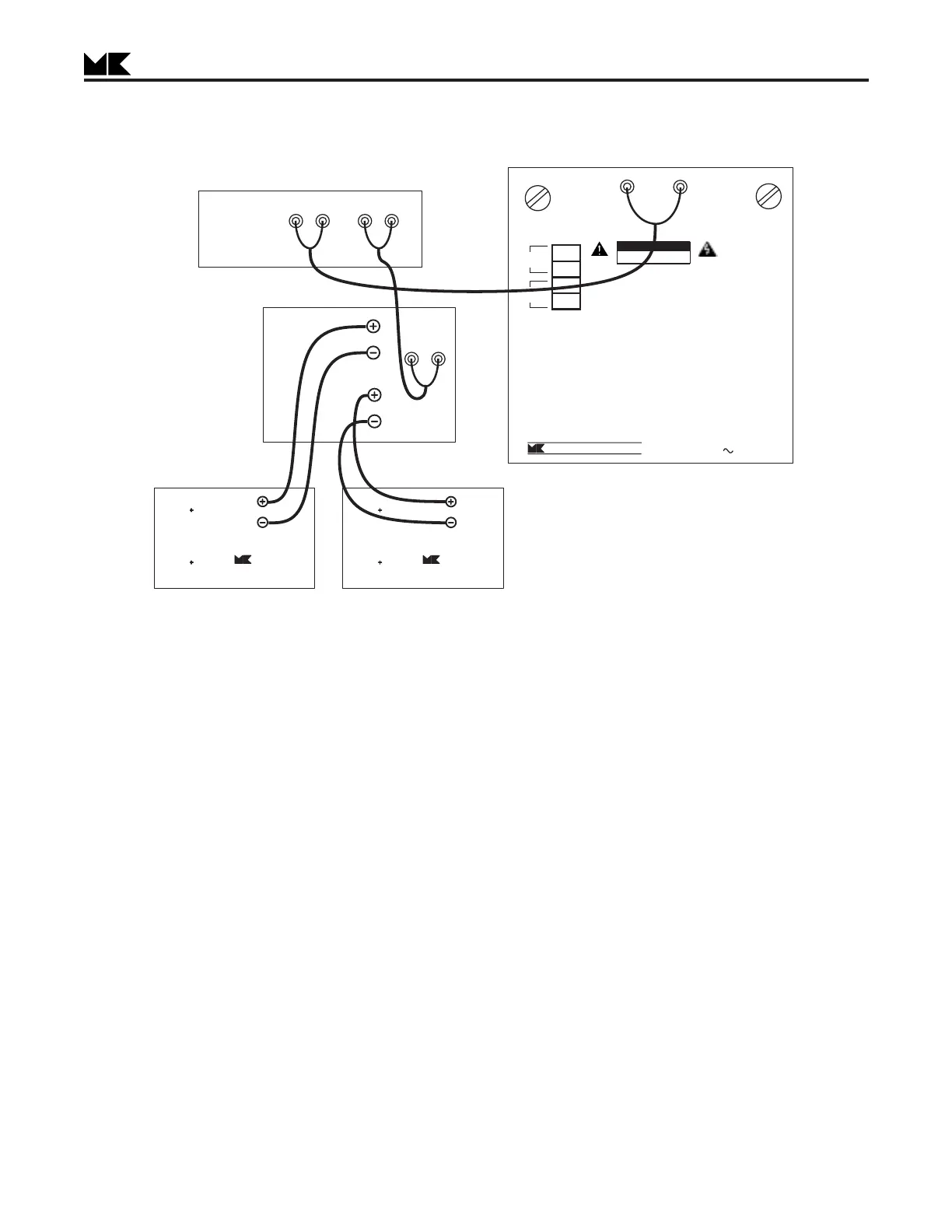

FIGURE 2 - CONNECTING TO A STEREO AMP OR PREAMP
USING SPEAKER WIRE CONNECTIONS
(MX-70B, V-125, V-75 Mk II, VX-7 Mk II only)
Some M&K subwoofer owners hook up their Subwoofer by connecting it to their receiver or
amplifier using speaker wires. To do so, you make the same kind of connections that you would use
for your Satellite (or main) speakers, except that both the left and right channels go to the Subwoofer.
(If you are using two Subwoofers, connect one channel only to each Subwoofer).
NOTE: You cannot connect the MX-700, MX-200, MX-125 Mk II, or MX-105 Mk II using
speaker wires. If you are connecting one of these to an amplifier or receiver without RCA outputs,
please contact your dealer or the M&K factory. We offer an optional RM-2 High Level to Low Level
convertor with Remote Volume Control, which will allow you to drive these subwoofers with speaker-
level amplifier outputs.
1. Run speaker wire between the Amplifier's Left channel output terminals and the
Subwoofer's Left channel "FROM AMPLIFIER" terminals.
a. Connect the Amplifier's Left channel Positive (+) terminal and the Subwoofer's
Left RED (+) "FROM AMPLIFIER" terminal.
b. Connect the Amplifier's Left channel Negative ( — ) terminal and the Subwoofer's
Left BLACK ( — ) "FROM AMPLIFIER" terminal.
2. Make matching connections for the Right channel. See Figure 3 on page 8.
If you have one Preamp Output, connect both the Subwoofer and the Amplifier to it.
100
PHASE
10391 Jefferson Blvd, C ulver C ity, C A 90232 310/204-2854
M ILLER & KREISEL SO U N D CO RPO RATIO N
RIGHT
RIGHT
FROM PREAMP
BASS LEVEL LOW PASS FILTER
(Hz)
FROM AMPLIFIER
MAX
50
75
60
125
Made in U.S.A.
T 4 AMP
120 VAC 50/60 Hz
TO SPEAKERS
LEFT
RIGHT
LEFT
MIN
LEFT/MONO
SLOW-BLOW
ATTENTION:
DEBRANCHER AVANT DE
REMPLACER LE FUSIBLE.
UTILIZER UN FUSIBLE
DE RECHANGE DE MEME TYPE.
CAUTION:
DISCONNECT SUPPLY CORD
BEFORE CHANGING FUSE.
REPLACE FUSE ONLY
WITH SAME TYPE.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
AVIS:
RISQUE DE CHOC ELECTRIQUE. NE PAS OUVRIR.
+

RIGHT
LEFT
PREAMP
MADE IN USA
INPUT
4 ohms
MIDRANGE CONTOUR
MID
EFFICIENCY
NORMAL
SATELLITE SPEAKER
TREBLE CONTOUR
MID
TWEETER
NORMAL
LOW
TWEETER
LOW
EFFICIENCY
M ILLER & KREISEL
SO UND CORPORATIO N
10391 Jefferson Boulevard., C ulver C ity, C A 90232
Voice (310) 204-2854 Fax (310) 202-8782
INPUT
4 ohms
MIDRANGE CONTOUR
MID
EFFICIENCY
NORMAL
SATELLITE SPEAKER
TREBLE CONTOUR
MID
TWEETER
NORMAL
LOW
TWEETER
LOW
EFFICIENCY
M ILLER & KREISEL
SO UND CORPORATIO N
10391 Jefferson Boulevard., C ulver C ity, C A 90232
Voice (310) 204-2854 Fax (310) 202-8782
MADE IN USA
AMPLIFIER
OR RECEIVER
L
R
LEFT
RIGHT
RIGHT
LEFT
MAIN INPUT
RIGHT
LEFT
MAIN OUT 1
MAIN OUT 2
