Mobatime PROFILINE Series - Mounting Guidelines; Wall-, Ceiling-, or Pedestal Mounting (S); Wall Bracket (WA) resp. Ceiling Suspension (DA)

© MOBATIME 3 / 20 800640.03

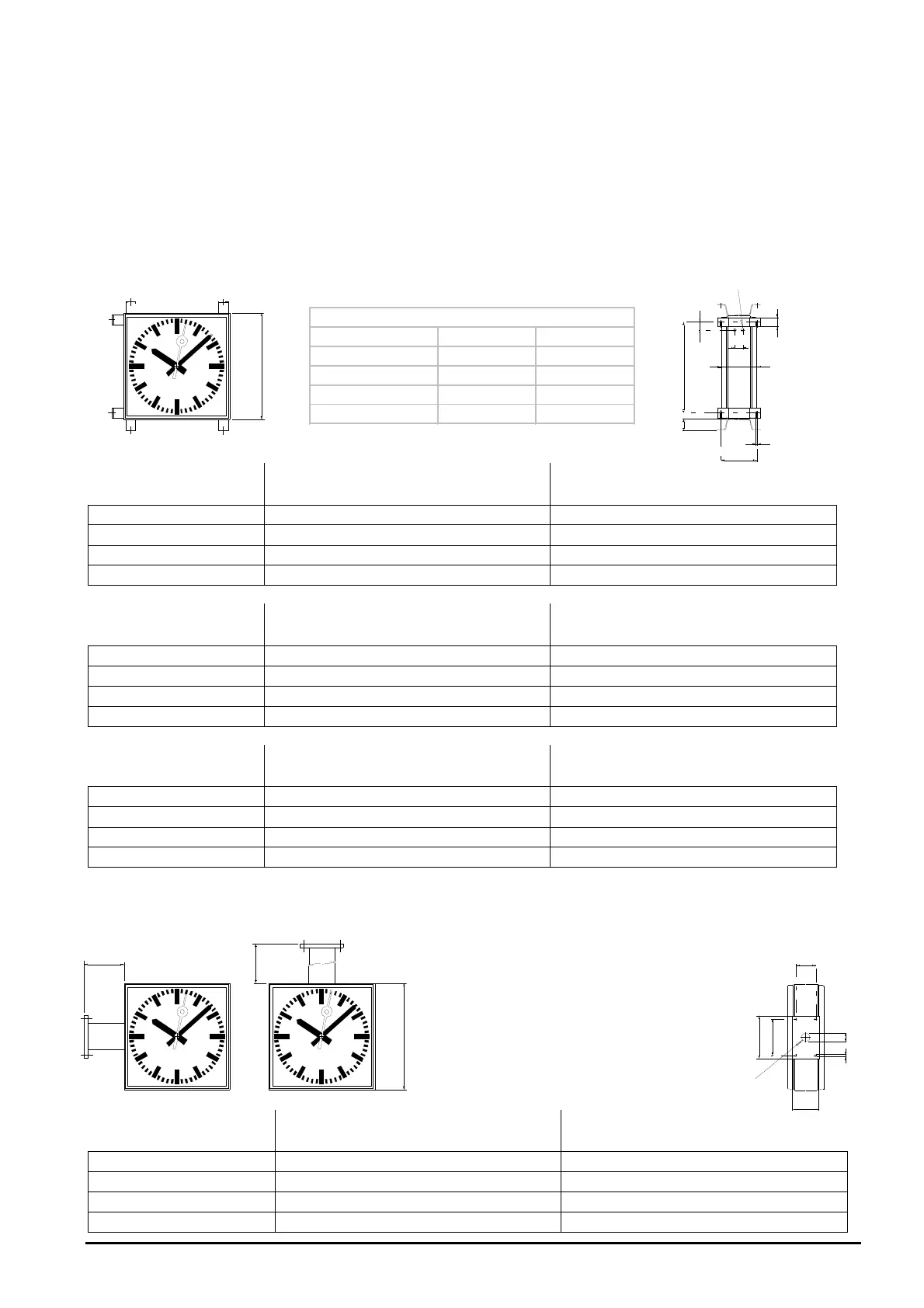

1 Mounting guidelines
Fastening of the double-sided clock is done by the STANDARD – mounting location (see D, W, S) of the
standard model through the respective enclosed adapter sets. The models with wall bracket (WA) or ceiling
bracket "DA" are completely delivered with the bracket and mounted with them.
1.1 Wall- (W), Ceiling- (D) or pedestal mounting (S)
Wall mounting (W)
Nominal- 
without illumination
model
with illumination
model
2-sided 50 cm PLQ.xxx.40.W PLQB.xxx.50.W
2-sided 60 cm PLQ.xxx.50.W PLQB.xxx.60.W
2-sided 80 cm PLQ.xxx.60.W PLQB.xxx.80.W
2-sided 80 cm PLQ.xxx.80.W PLQB.xxx.80.W
Ceiling mounting (D)
Nominal- 
without illumination
model
with illumination
model
2-sided 50 cm PLQ.xxx.40.D PLQB.xxx.50.D
2-sided 60 cm PLQ.xxx.50.D PLQB.xxx.60.D
2-sided 80 cm PLQ.xxx.60.D PLQB.xxx.80.D
2-sided 80 cm PLQ.xxx.80.D PLQB.xxx.80.D
Sockelbefestigung (S)
Nominal- 
without illumination
model
with illumination
model
2-sided 50 cm PLQ.xxx.40.S PLQB.xxx.50.S
2-sided 60 cm PLQ.xxx.50.S PLQB.xxx.60.S
2-sided 80 cm PLQ.xxx.60.S PLQB.xxx.80.S
2-sided 80 cm PLQ.xxx.80.S PLQB.xxx.80.S
1.2 Wall bracket (WA) resp. Ceiling Suspension (DA)
Wall bracket (WA)
Nominal- 
without illumination
model
with illumination
model
2-seitig 40 cm PLQ.xxx.40.WA PLQB.xxx.40.WA
2-seitig 50 cm PLQ.xxx.50.WA PLQB.xxx.50.WA
2-seitig 60 cm PLQ.xxx.60.WA PLQB.xxx.60.WA
2-seitig 80 cm PLQ.xxx.80.WA PLQB.xxx.80.WA
A
W
D
S
Values in mm
Dial dimension A B
40 cm 446 364
50 cm 546 464
60 cm 646 564
80 cm 846 864
Cable entrance
220
50
50
B70
225
13
60
C
B
WA DA
A
Dial dimension A B C
40 cm 446 150 400
50 cm 546 180 500
60 cm 646 240 600
80 cm 846 320 800
Values in mm
Cable-
entrance
120
150
220 260
ø50ø13
