MobileVision M130C User Manual

7

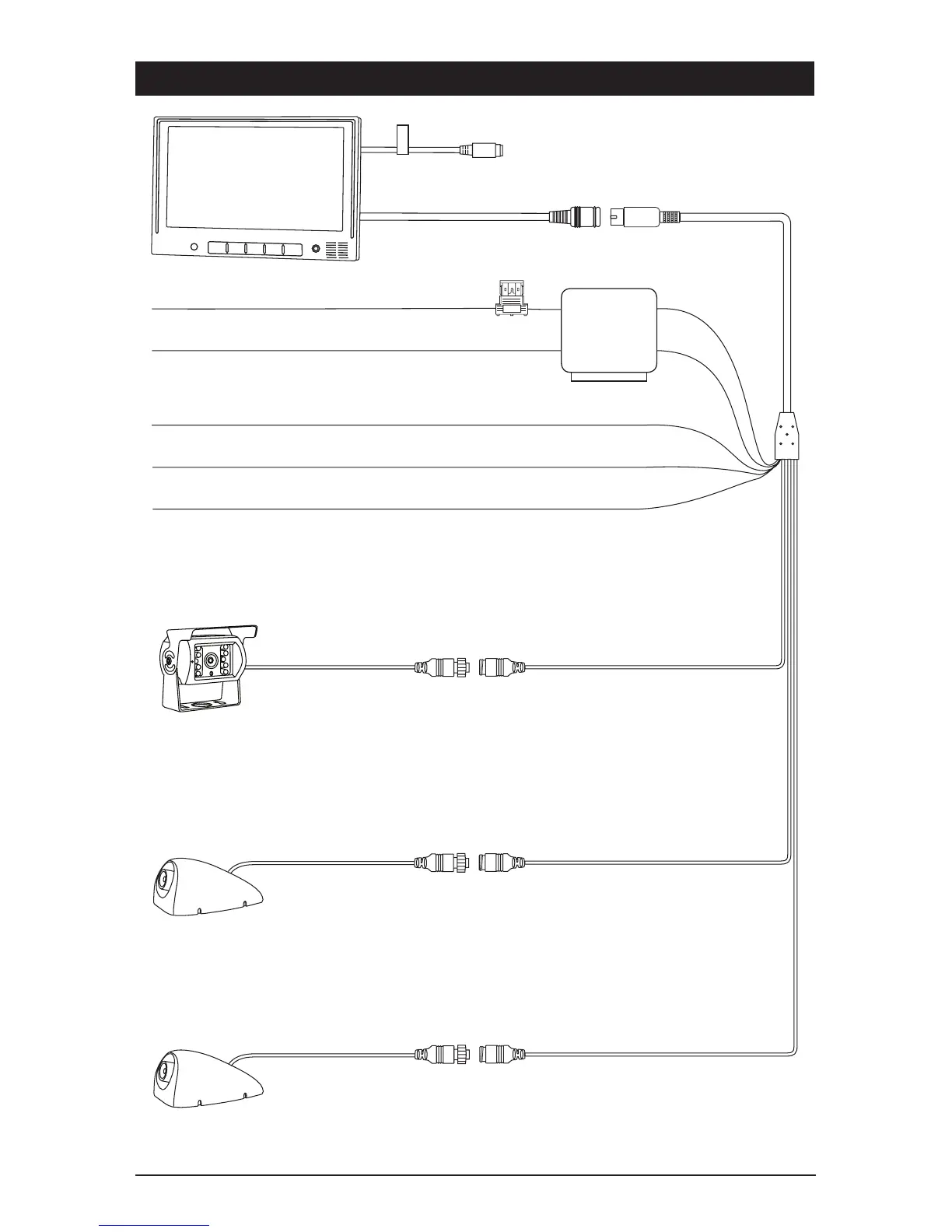

Wiring Diagram
Red Wire: 12 Volt Switched
Black Wire: Ground
Green Wire: Rear Trigger
Gray Wire: Right Trigger
White Wire: Left Trigger
2 Amp
Rear View Camera
(Model: C125, Optional)
Right View Camera
(Model:C-SDR, Optional))
Left View Camera
(Model:C-SDL, Optional))
Rear Camera (Green)
Right Camera (Gray)
Left Camera (White)
13-Pin Din
8-Pin Din
Av1 IN
