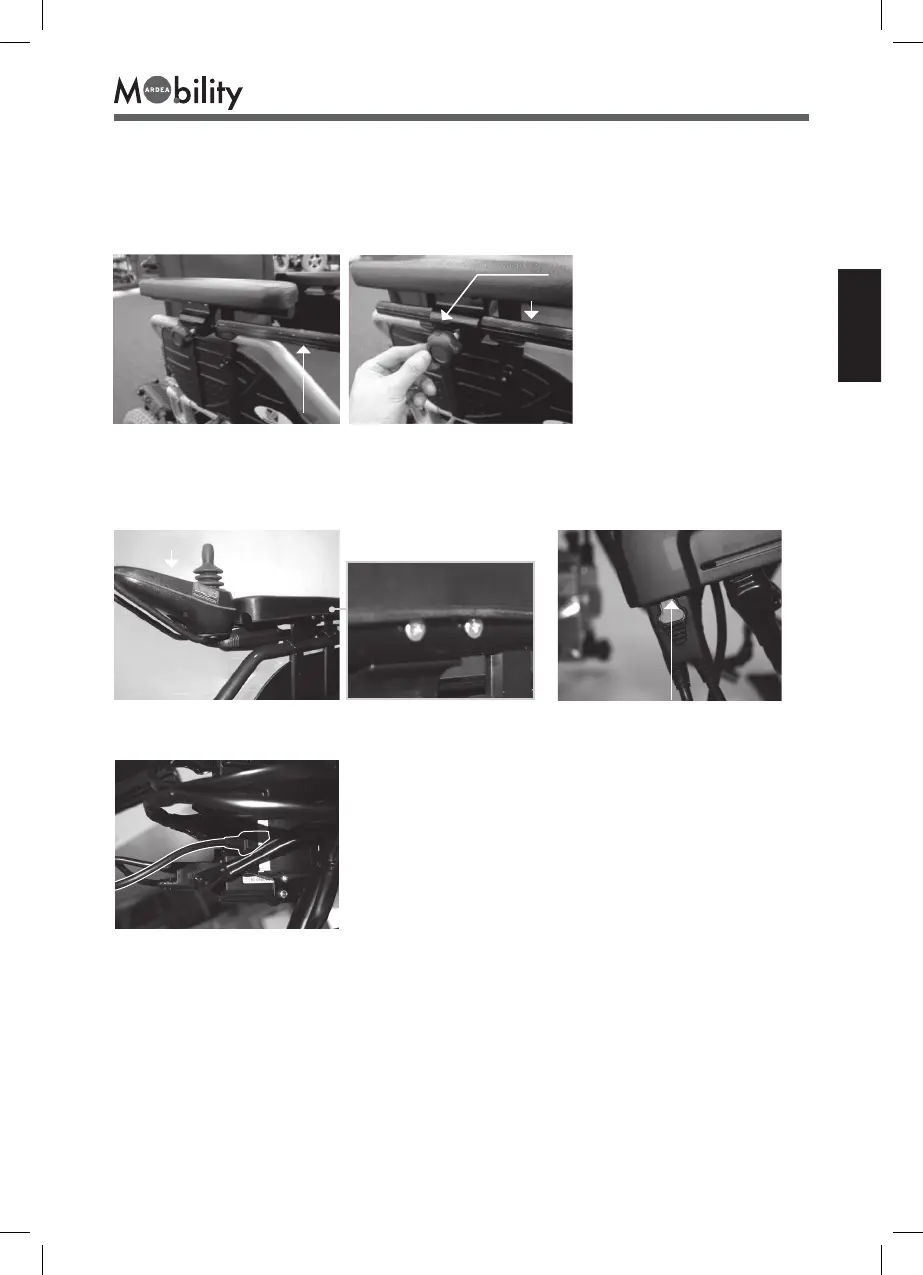

11. ASSEMBLY INSTRUCTIONS
11.1 Installing the controller and the connection cables
Slide the fixed bar of the controller (# 4) into the tube of the frame sufficiently (fig.2),
then tighten the knob (fig.3).
(# 4)
(fig.2)
Fixed bar of the controller (fig.3) Knob
Mount the controller (# 3) (fig.4) onto the bracket of the right or left armrest, as needed,
with two screws (fig.4A). Then connect the attachment of the plug to the jack of
the control unit. (fig.5)
(# 3)
(fig.4) (fig.4A) (fig.5) Control unit connector
Proceed in the same manner with the lighting system connector (if present) (fig.6).
(fig.6) Lighting connector
