modbar espresso system - Recommended Clearances

EN
11

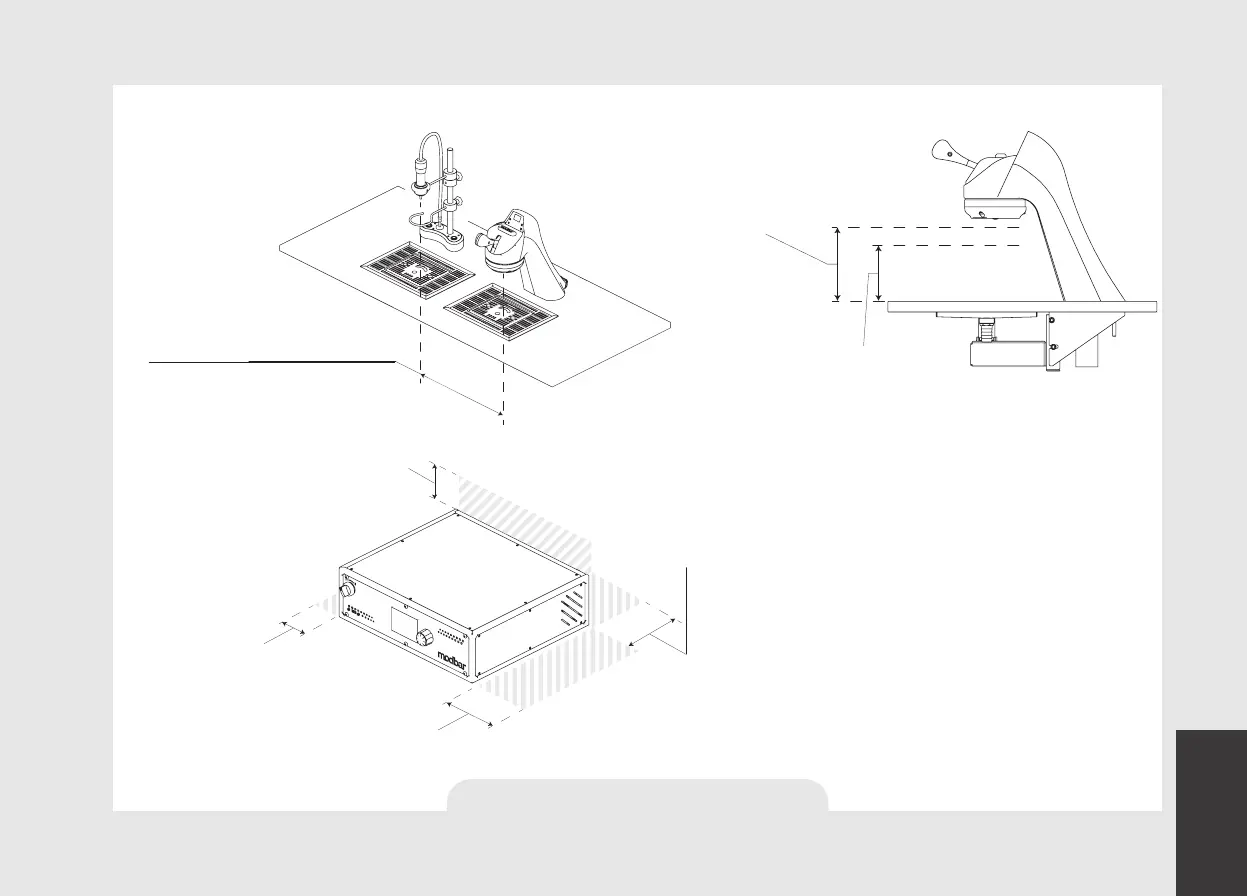

Fig. 2 - Installation guide
200 mm - 8 in.
Clearance rear
75 mm - 3 in.
Clearance right side
150 mm - 6 in.
Clearance above
75 mm - 3 in.
Clearance left side
350 mm - 14 in.
Minimum clearance
between Taps
69 mm - 2,7 in.
Clearance between portalter with
2 cup spout and counter
116 mm - 4,6 in.
Clearance between naked portalter
and counter
Recommended Clearances
