when you view your sketches, seek help or
find the answer in a rigging text (consult the
bibliography). U
se the final sketches as you
rig the model.
You won’t need to crawl your
way thru the rigging plan again.
When rigging such items as yards, booms
and gaffs, do as much rigging as possible
with the item in hand before installing the
part on the model. Seize the lines to the part
and have enough running rigging line so it
can reach to its final destination, such as a
belaying pin, with a little line left. Better to
be too long than too short. Standing rigging
such as yard footropes are included as these
would be very difficult to do with the yard
hanging at the mast.

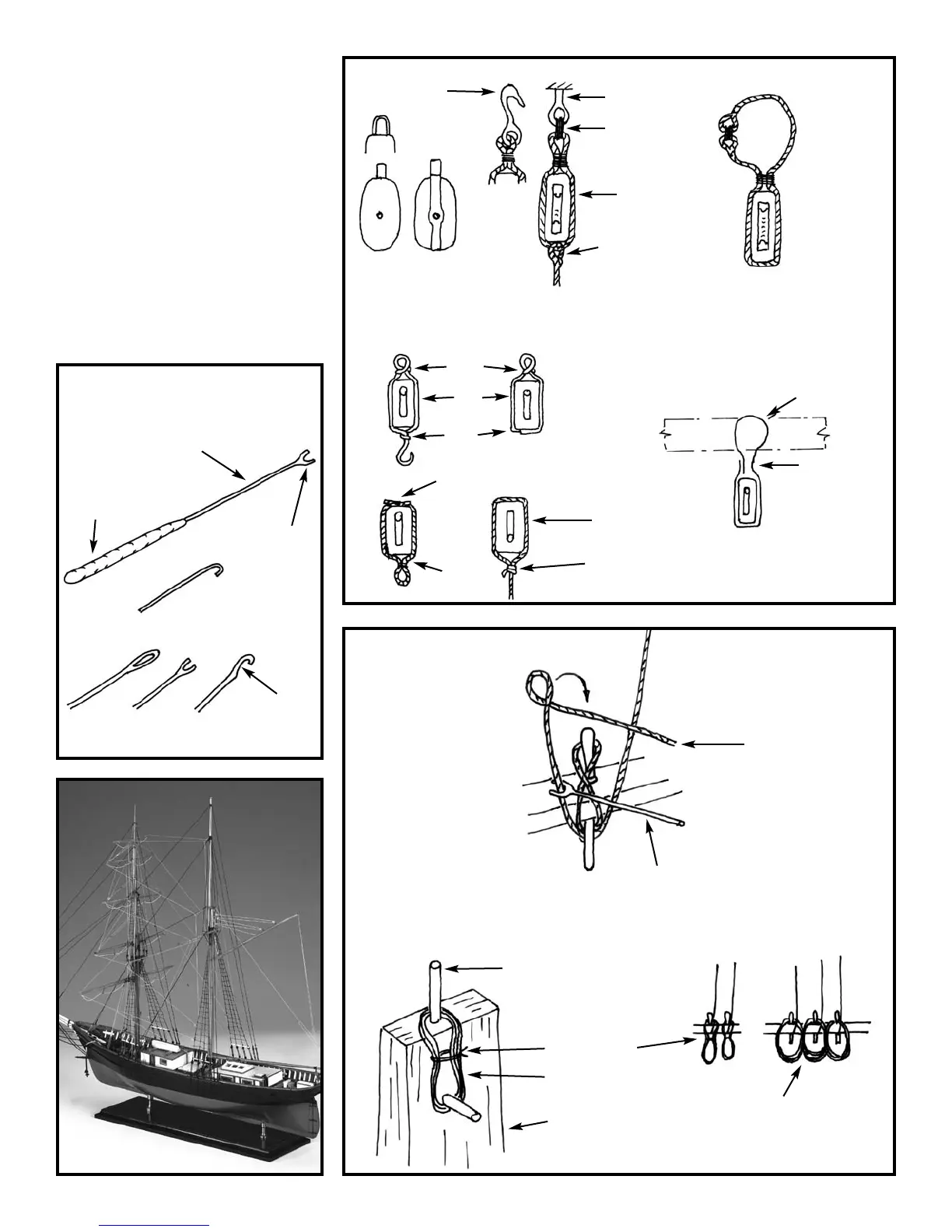

FIG. E-9 BLOCK STROPS
HOOK
EYEBOL
T
LASHING
BECKET
R
OPE STROP
REAL SHIP
IRON
ROPE
FOR WRAPPING AROUND SPARS
MODEL OPTIONS
NO HOOK
TWIST
WIRE
GLUE
GLUE
SEIZE
WITH
THREAD
BELA
YING LINE
T
O PIN
SEPARATE ROPE COILS
PULL TIGHT,
CUT & GLUE
REMOVABLE PIN
JIG
REMOVABLE PIN
FOR A MORE OPEN,
REALISTIC LOOK,
OMIT THREAD &
GLUE COILS TO
EACH OTHER
ADD WHITE GLUE
TO STIFFEN
USE
T
OOL
T
O
PUSH LINE UNDER PIN
USING
RIGGING LINE
SEIZE &
GLUE
LINE OR WIRE
SLIP NOT & GLUE
FIG. E-11 BELAYING LINES
BRASS R
OD
W
OOD
HANDLE
LARGE SEWING NEEDLE
PUSH
FLATTEN
END,
FILE
SHAPE
CUT WITH
SNIPS OR
FILE
PULL
FIG. E-10 RIGGING TOOLS
