8. INSTALLING THE WALL CONTROL (cont.)
Wall Mounting Plate
Wall Outlet Box
Wall Control
Wall Plate
Mounting Screws
Mounting Screws

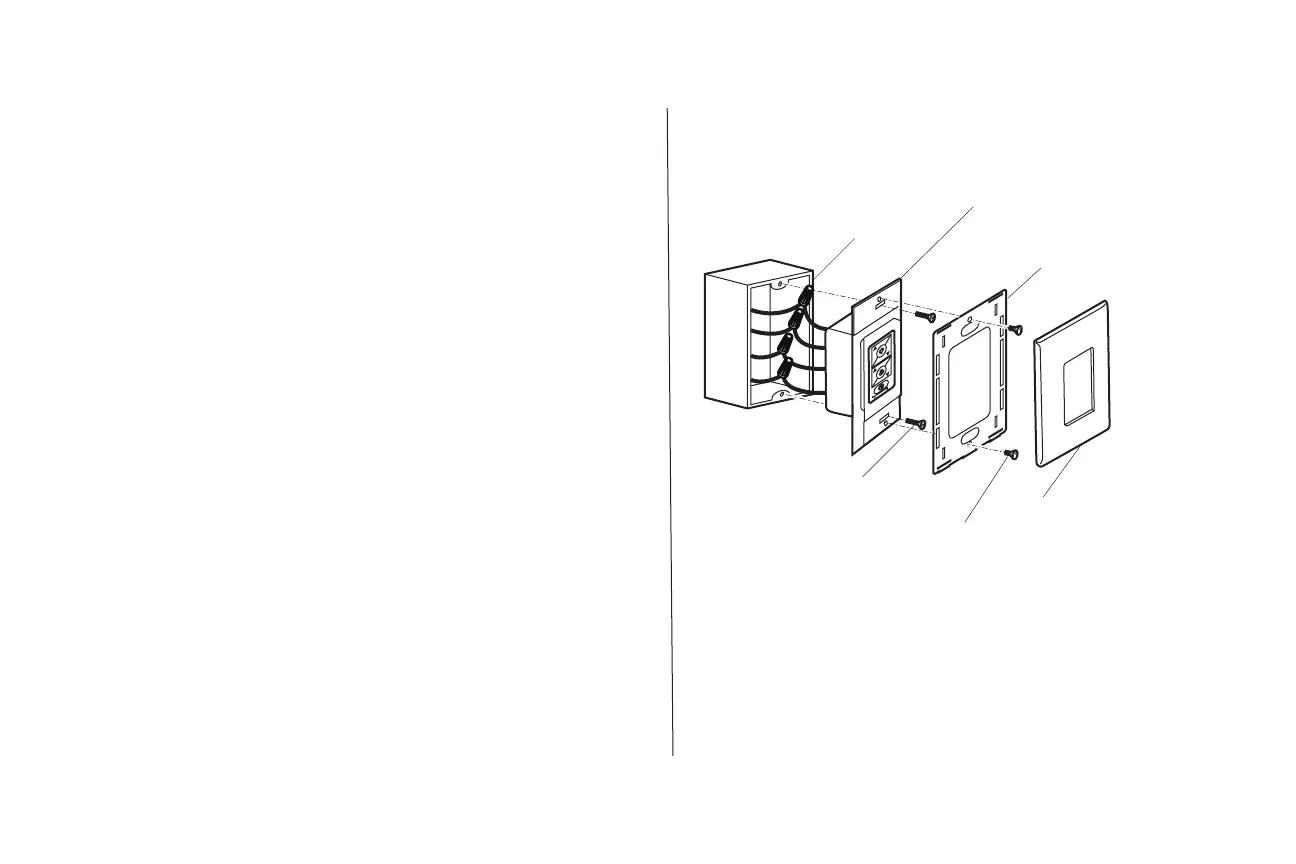

FIGURE 15
1. Carefully tuck the wire connections inside the junction box.
Secure the wall control with the two wall control mounting
screws provided (Fig. 15).
2. Attach the wall mounting plate over the wall control and
secure with the two wall mounting plate screws provided.
3. Fasten the wall plate to the wall mounting plate.
NOTE: A maximum of 2 fans can operate on a circuit through
the wall control.
A maximum of 12 fans can operate on a circuit through an on/o
switch or breaker when utilizing the app for the fan control (without
the wall control in the circuit).
