9. FINISHING THE INSTALLATION
1. Secure all wire connections with supplied wire ties to assist in
canopy installation.
2. Tuck connections neatly into ceiling outlet box.
3. Slide the canopy up to hanger bracket and place the key
hole on the canopy over the screw on the hanger bracket.
Turn canopy until it locks in place at the narrow section
of the key holes (Fig. 16).
4. Align the circular hole on canopy with the remaining hole
on the hanger bracket. Secure by tightening the one screw
previously loosened and the one previously removed.
5. Adjust the canopy screws as necessary until the canopy and
canopy cover are snug.

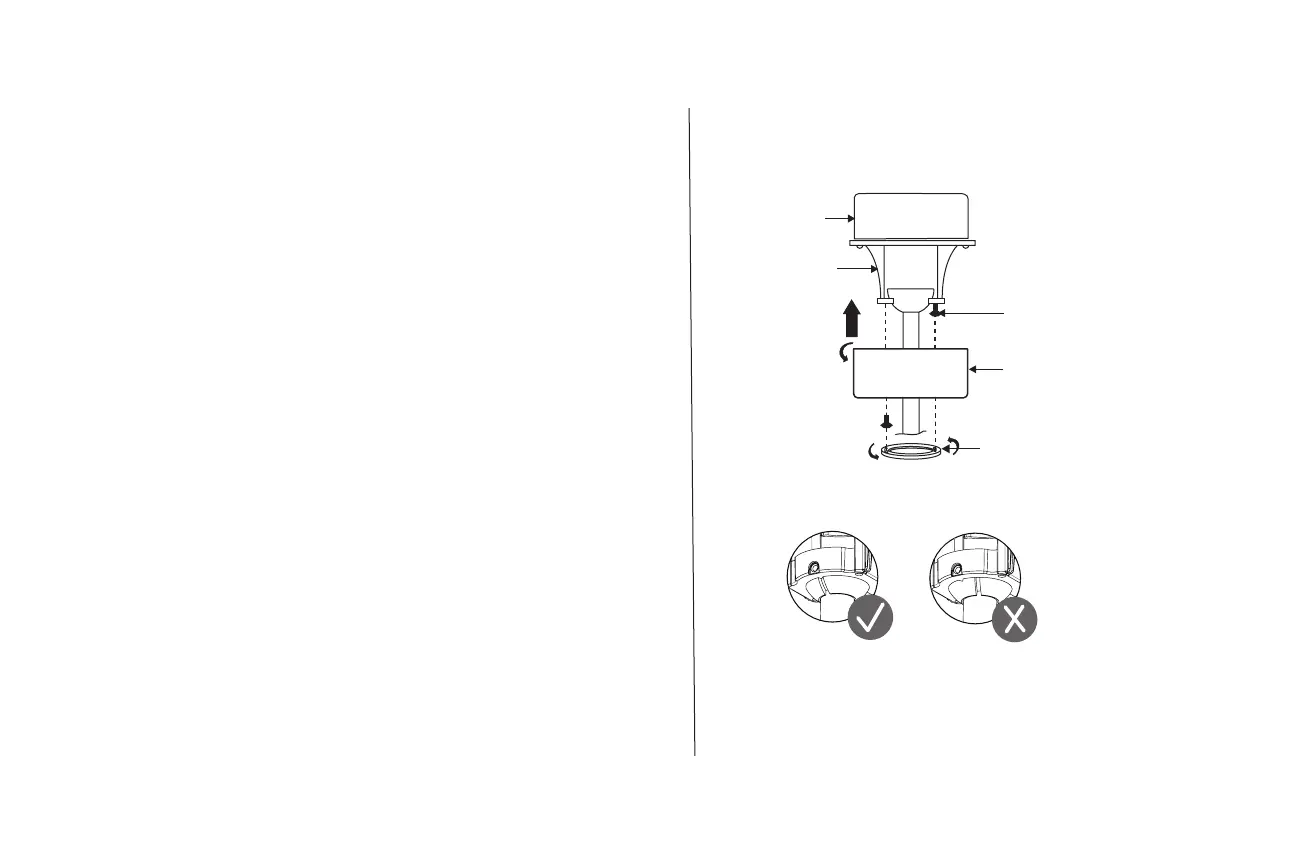

FIGURE 16
Screws
Outlet Box
Hanger Bracket
Canopy
Canopy Screw Cover
WARNING: Make sure tab at bottom of hanger bracket is properly
seated in groove of hanger ball before attaching canopy to bracket.
Failure to properly seat tab in groove could cause damage to
electrical wiring.
