Modern Forms WINDFLOWER - Installing the Wall Control

13FR-W1815
8. INSTALLING THE WALL CONTROL
Green (Ground)
To hanger ball
Green (Ground)
To hanger bracket
White (for light)
Blue (for light)

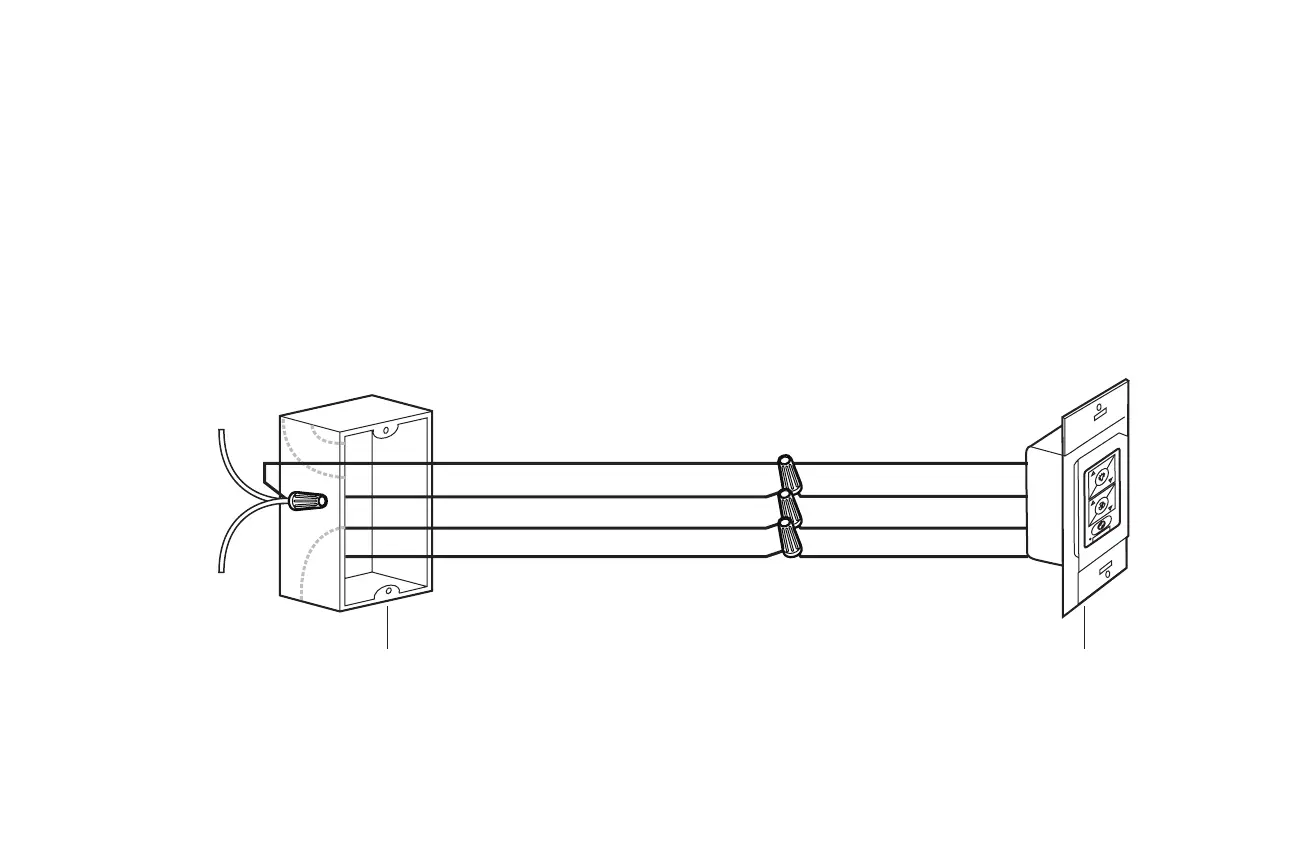

FIGURE 14
White White
Red
Black
Green (Ground)
Black (to fan)
Copper
Ground
White
(Neutral)
Black (from Breaker)
Wall control
Wall outlet box
1. Connect ground wires - Important for proper control function.
2. Connect the black wire marked “LINE IN” from the control to the black LINE VOLTAGE wire from the outlet box that
feeds back to the breaker.
3. Connect the red wire from the control to the black wire from the wall outlet box that feeds up to the fan.
4. Connect the white wire from the control to the white (neutral) wire from the wall outlet box.
Wall control to wall outlet box electrical connections (Fig. 14):
WARNING: Remember to shut the power o at the circuit breaker or fuse box.
