Modern Forms Wynd - Making the Electrical Connections; Safety Cable Installation; Wiring Diagram and Connections

FR-W180114
9
White (neutral)
Outlet Box
Black (hot)
Black (“AC IN L”)
Red (to motor)
Gray (to motor)
Yellow (to motor)
Yellow (motor)
Gray (motor)
Red (motor)
Receiver
Green (ground)
To Hanger Ball
Green (ground)
To Hanger Bracket
Green (ground)
White (for light)
White (for light)
Blue (for light)
Blue (for light)
White (“AC IN N”)
Green (ground)
10
9
07

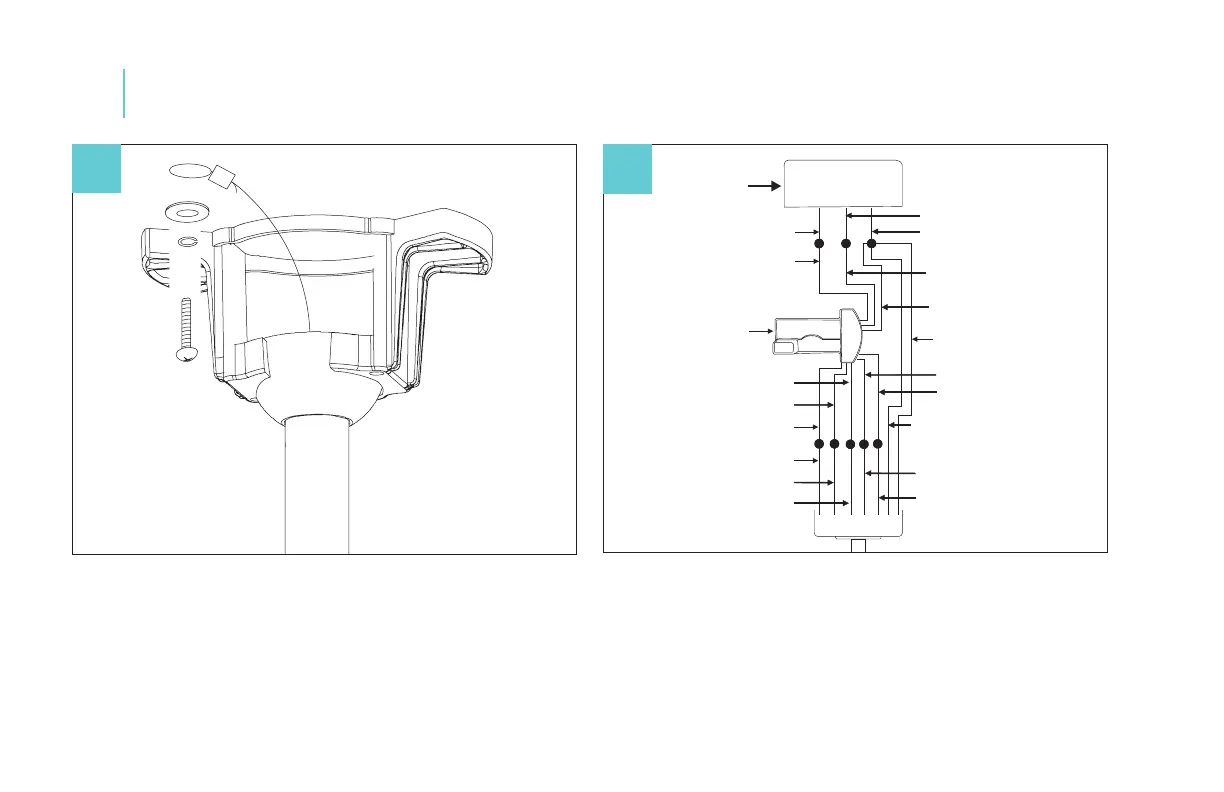

Hanging the Fan Making the Electrical Connections
1. Secure safety cable to structure. 1. Connect the wires from fan to the corresponding wires on the receiver.
2. Connect the wires from the outlet box to the corresponding wires on the
receiver.
NOTE: Follow wiring diagram found on the receive hardware.
