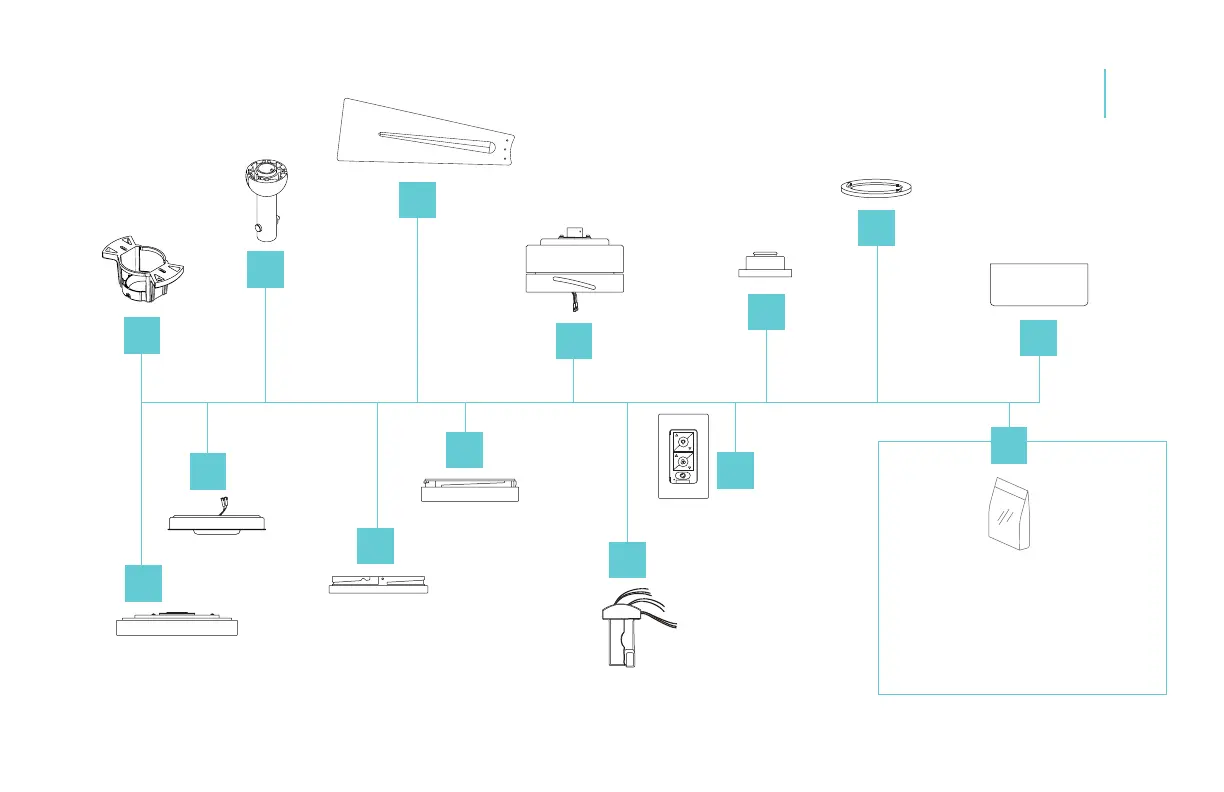

Modern Forms Wynd - Package Contents; Mounting and Downrod Components; Fan Body and Luminaire Components; Hardware, Controls, and Receiver

9FR-W1801
NOTE: ** denotes nish code of fan
*** denotes blade sweep of fan
1
10
6
3
9
15
5
4
14
2
7
11
13
12
Canopy Ring
RPL-CAN-CYL-**
Adapter Plate
Coupling
Cover
Safety Cable
10 x 4mm x 0.8
Flat washers
(2pcs)
Safety Cable
5/32” Spring
Washers (2pcs)
Safety Cable
5.4mm
Spring washer
(2pc)
Hardware Bag
RPL-F1801-60-PARTS
Blade Screws
3/16” x 15mm
Blade screws (16pcs)
Machine Screws
8 x 3/4” Machine
Screws (2pcs)
Self-tapping Screws
12 x 11W x 2L
Phillips Self-Tapping
Screws (2pcs)
Canopy
RPL-CAN-CYL-**
Motor Housing
Fan Blade
RPL-F1801-***-BD-**
Wall Control
F-WCBT-WT
Package Contents
04
Downrod
Assembly
RPL-HGR-ASM-**
Mounting
Bracket
RPL-HGR-ASM-**
Luminaire Cover
RPL-F1801-COVER-**
Luminaire Module
F4IN-120V-R1-30
Receiver
F-R3-1801-***
Acrylic Shade
RPL-F1801-GLA
