11FR-W1801
Screws with
Lock Washers
Slot
Blade
3

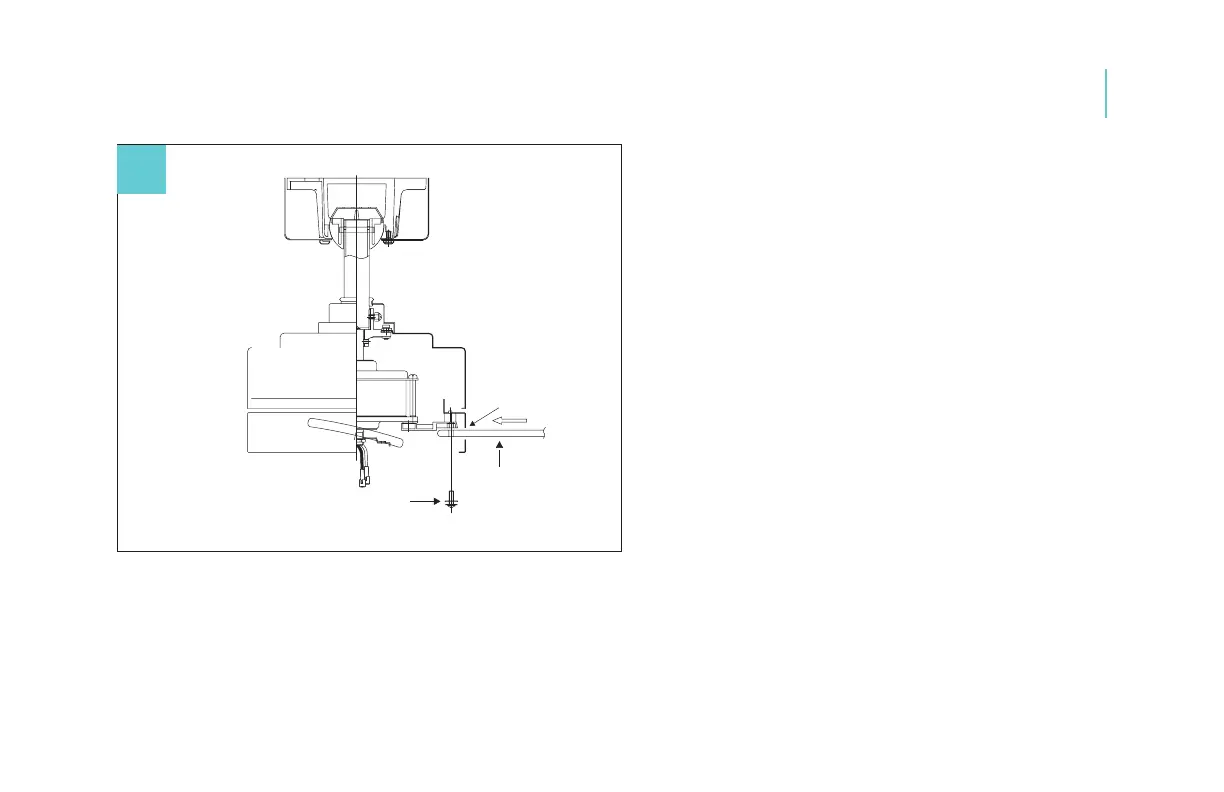

Attaching the Fan Blades
06
1. Place blade on motor and secure with the blade attachment,
screws and washers.
2. Insert blades in slots, aligning with motor assembly holes.
3. Secure blades with blade attachment screws & washers.
4. Remove set screws from motor housing, install blade collector
ring (when applicable), and re-install screws.
