08 Installing the Wall Control
Wall Controller 1 Wall Controller 2 Wall Controller 3
if Applicable
Green
Green to Fan
Black to Fan
White to Fan
Green White Black Red
Black Black White Red Red White
Green Green
HOT IN
12

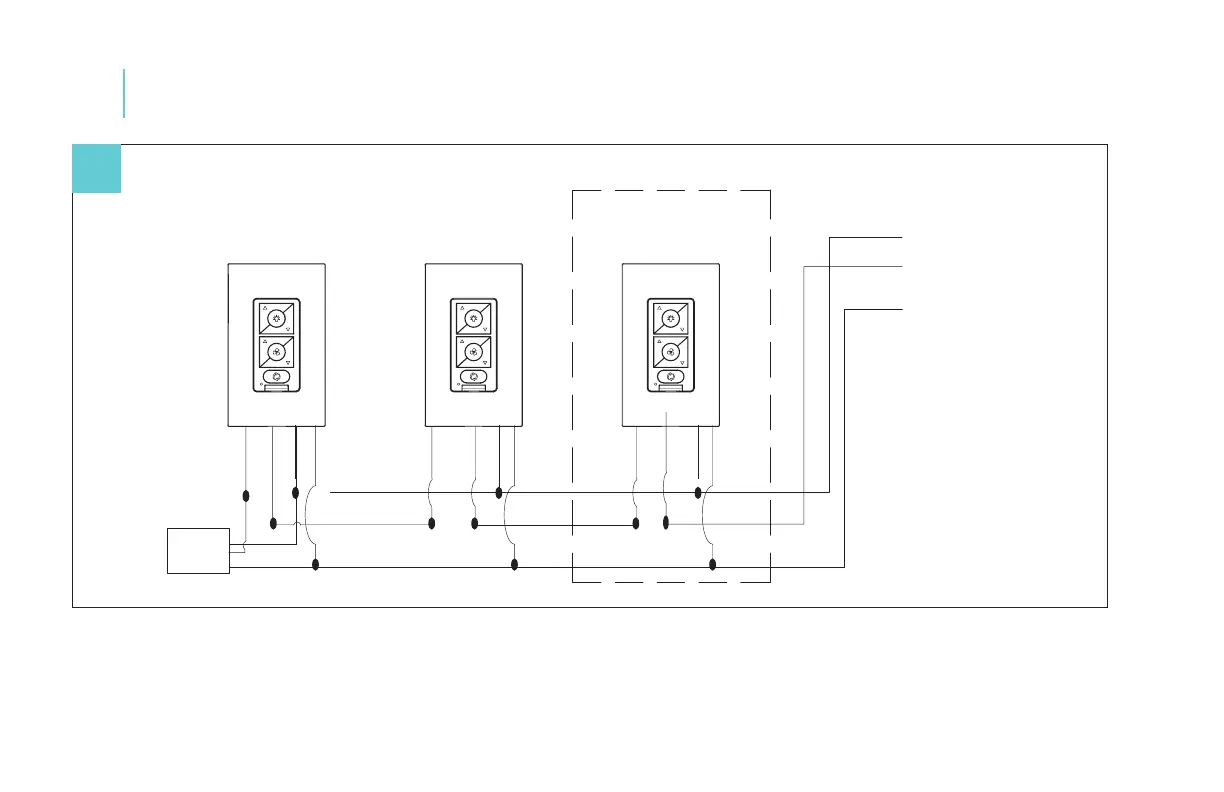

1. Install the wall control using the wiring diagram in below.
2. Individually pair each of the wall controls with the fan receiver using the pairing instructions in section 18.
