DIMENSIONAL DATA - MODEL PTX
Propeller Units - Model PTX

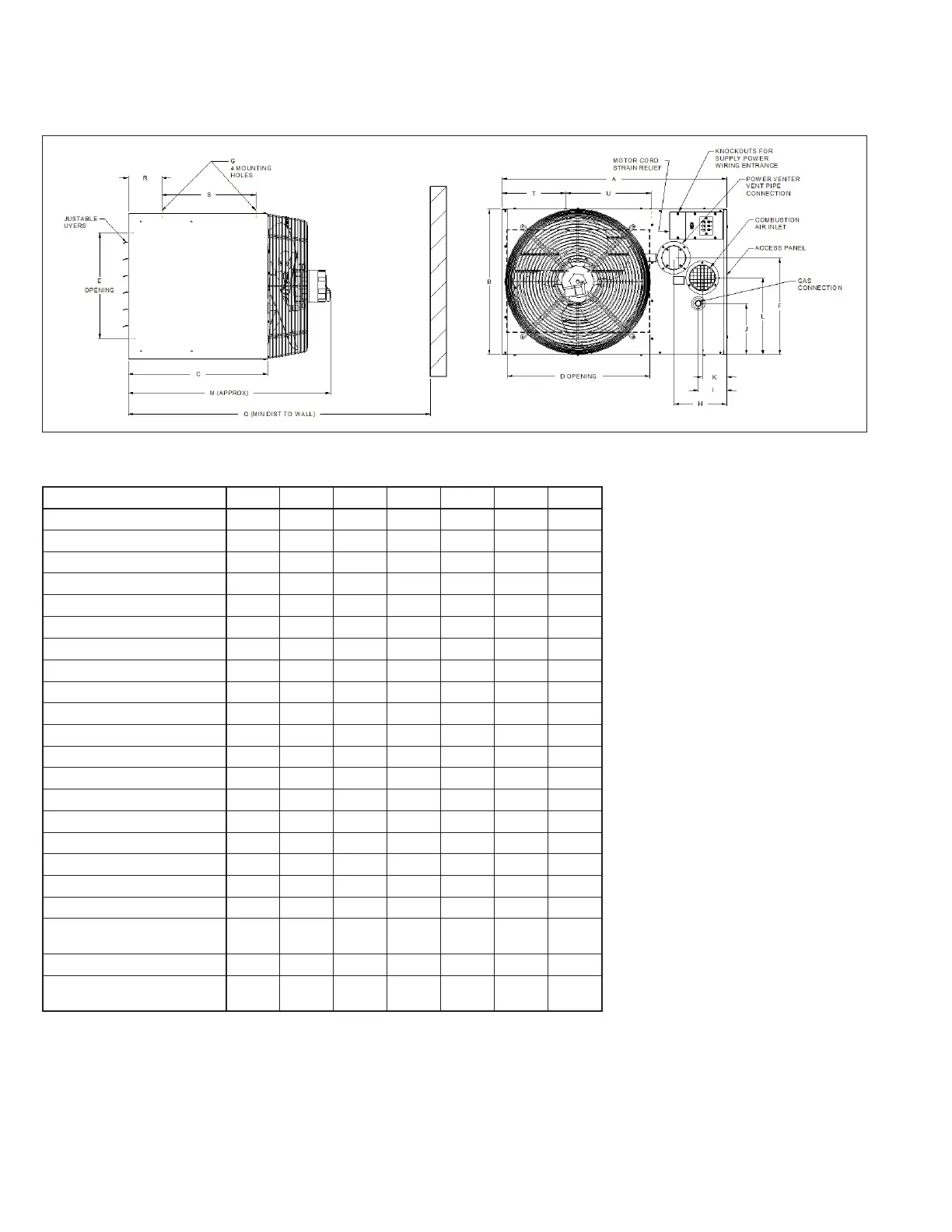

Figure 28.1 - Dimensional Drawings
 Do not use propeller units with duct work.
 Listed is the hole diameter and threads per inch to accept threaded rod.
 Dimension equals overall plus 12".
Table 28.1 - Dimensions (inches) - PTX 
Models PTX150 PTX175 PTX200 PTX250 PTX300 PTX350 PTX400
A 35.53 42.53 42.53 42.53 42.53 42.53 42.53
B 23.06 25.81 25.81 31.31 31.31 39.56 39.56
C 22.05 22.05 22.05 22.05 22.05 22.05 22.05
D 22.52 29.52 29.52 29.52 29.52 29.52 29.52
E 16.20 18.95 18.95 24.46 24.46 32.17 32.17
F 15.33 16.70 16.70 19.45 19.45 23.58 23.58
G (Mounting Hole) 
3/8-16 3/8-16 3/8-16 3/8-16 3/8-16 3/8-16 3/8-16
H 8.37 8.37 8.37 8.37 8.37 8.37 8.37
I 4.50 4.50 4.50 4.50 4.50 4.50 4.50
J 8.09 9.47 9.47 6.72 6.72 10.84 10.84
K 3.87 3.87 3.87 5.20 5.20 5.20 5.20
L 12.17 13.55 13.55 12.66 12.66 16.78 16.78
M 31.79 32.83 34.43 33.83 33.83 34.83 34.83
Q 
43.79 44.83 46.43 45.83 45.83 46.83 46.83
R 3.56 3.56 3.56 3.56 3.56 3.56 3.56
S 14.90 14.90 14.90 14.90 14.90 14.90 14.90
T 10.00 10.00 10.00 10.00 10.00 10.00 10.00
U 13.54 20.53 20.53 20.53 20.53 20.53 20.53
Gas Connection 1/2 1/2 1/2 3/4 3/4 3/4 3/4
Vent and Combustion
Air Connector Size
4" 4" 4" 6" 6" 6" 6"
Fan Diameter 20.00 22.00 22.00 22.00 22.00 24.00 26.13
Approx. Shipping Weight
(lbs.)
165 210 220 265 270 310 320
