J
E
F
A
D
C
B
G
H
I
H
I
J
Camlock (Qty 12)
Screw, 5/8" (Qty 2)
Screw, Square Drive,
2.5" (Qty 4)
C
D
E
F
G
Rear Hanging Cleat (Qty 2)
Set Shelf (Qty 2)
Hanging Rod
Rod Bracket (Qty 2)
Cam Post (Qty 12)
A
B
Left Side Panel
Right Side Panel
FRONT
FINISHED EDGE
FINISHED EDGE
FRONT
1.1
1.2
Lay parts out on a protective surface
to prevent damage. Tip: Spread out
the cardboard packaging to use as a
protective surface.
Inventory parts against the Parts List.
Make sure all parts are present before
proceeding.

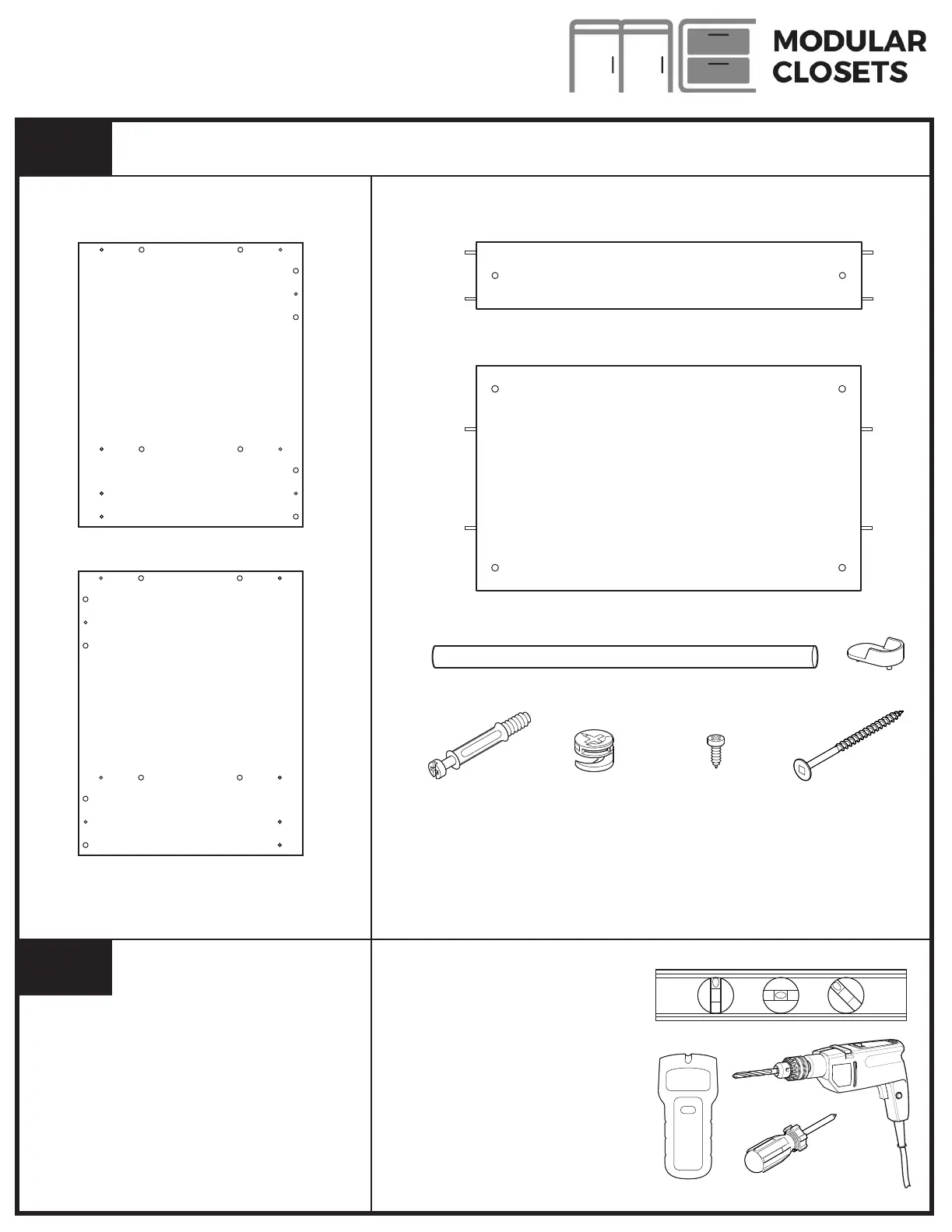

ASSEMBLY AND
INSTALLATION INSTRUCTIONS
TALL HANGING UNIT
PARTS LIST
BOX 1 BOX 2
Level
Stud Finder
Drill, 3/32" bit size
Phillips Screwdriver
Drill Bit, Square #2
TOOLS REQUIRED
(not included unless noted)
1A
1B
To Next Page
