ASSEMBLY AND INSTALLATION INSTRUCTIONS
TALL HANGING UNIT - 18" / 24" / 30" / 36"
4
5
I
I
I
I
A
B
D
D
C
C
5.1
5.2

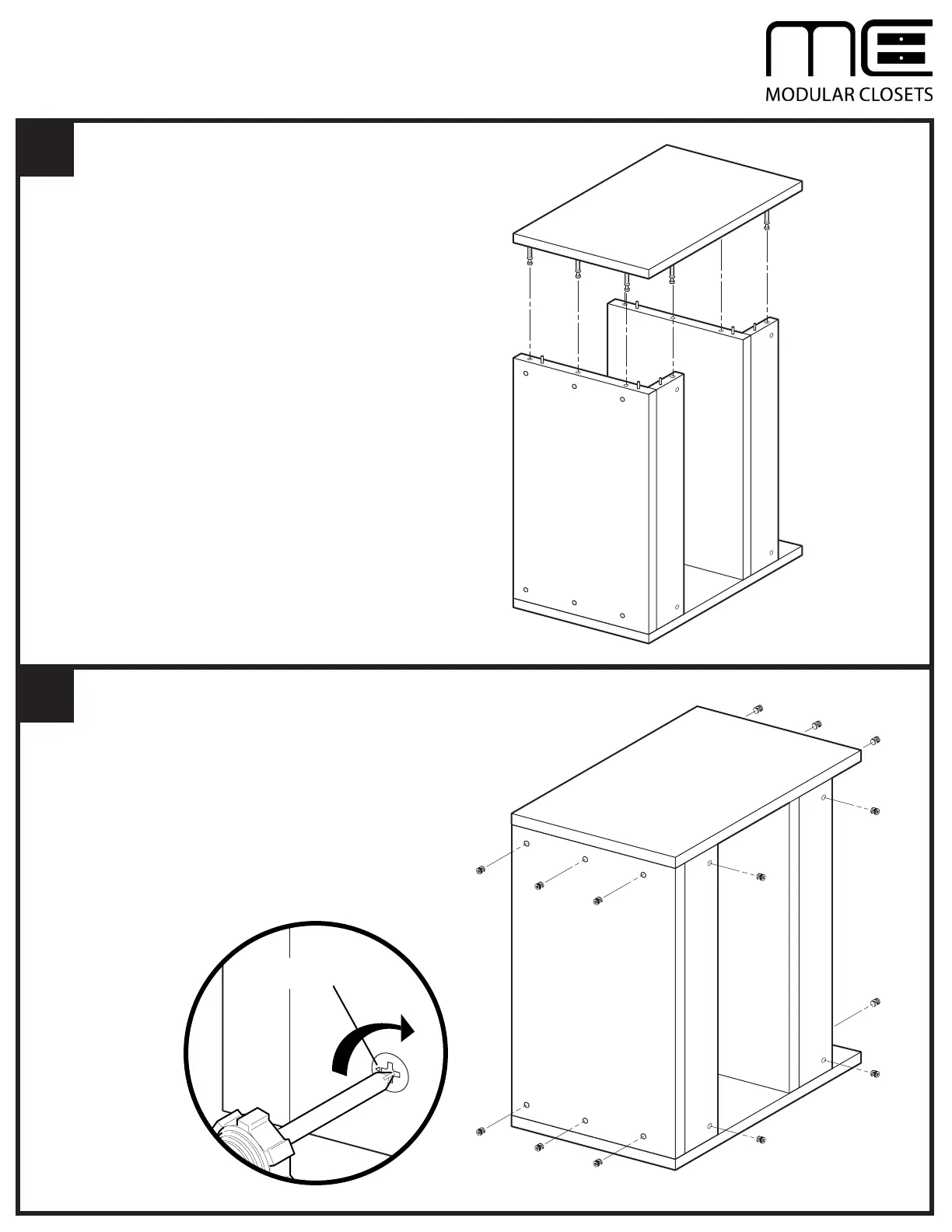

Insert Camlocks (I) in holes in Set Shelves (C)
and Rear Hanging Cleats (D), with arrow pointing
toward Cam Post opening. Be sure Camlocks engage
Cam Posts, and are fully seated in Shelves and
Cleats.
Tighten Camlocks (I) clockwise to lock.
ARROW TOWARD
CAM POST OPENING
3.1 Install Left Side Panel (A) onto assembled Set
Shelves (C) and Rear Hanging Cleats (D). BE
SURE dowel pins in Shelves and Cleats engage
drilled holes in Left Side Panel, and Left Side
Panel is pressed flush against Set Shelves and
Cleats.
