Modular Closets TALL HANGING UNIT - Cam Post and Shelf Assembly; Cam Post Installation; Shelf and Cleat Assembly; Important Assembly Notes

2
3

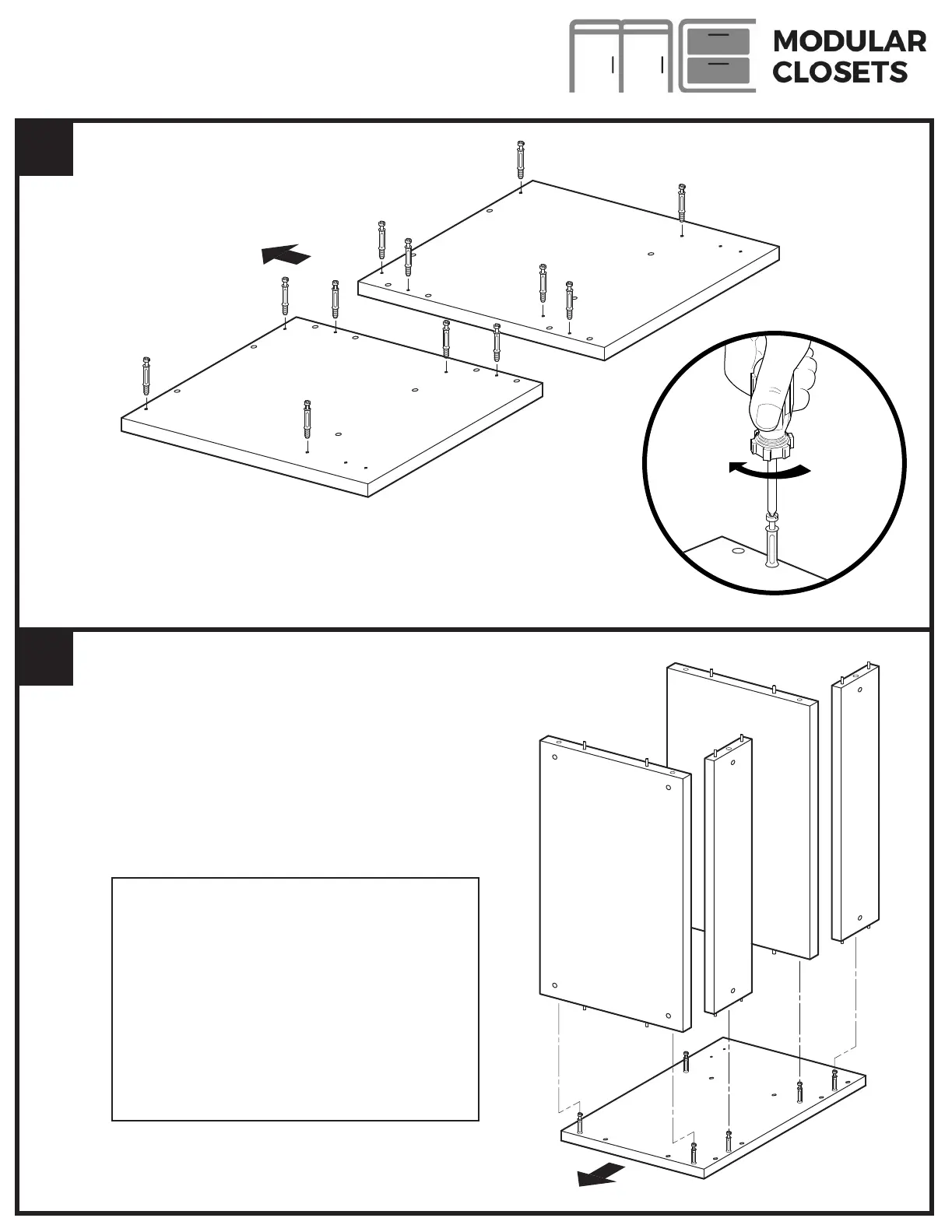

2.1 Install one Cam Post (G) into each of the eight holes on Left Side Panel (A)
and Right Side Panel (B). Tighten until Cam Posts are seated against Side Panels.
3.1 Assemble Set Shelves (D) and Rear Hanging Cleats (C)
onto Right Side Panel (B) by sliding the Shelves and
Cleats onto the Cam Posts (G)on Right Side Panel. BE
SURE dowel pins in Shelves and Cleats engage drilled
holes in RightSide Panel, and all parts are pressed flush
against Right Side Panel.
IMPORTANT NOTES
Install Set Shelves (D) with finished edges facing
forward (toward front of unit).
Install Rear Hanging Cleats (C) with holes for Cam
Locks facing the rear of the unit and the unfinished
edge against the Set Shelf (D).
Install upper Set Shelf (D) with holes for Cam Locks
facing the top of the unit.
Install lower Set Shelf (D) with holes for Cam Locks
facing the bottom of the unit.
B
A
G
ASSEMBLY AND
INSTALLATION INSTRUCTIONS
TALL HANGING UNIT
G
B
D
D
G
G
C
C
TOP
TOP
