MOD-5468 FULL BED FRAME

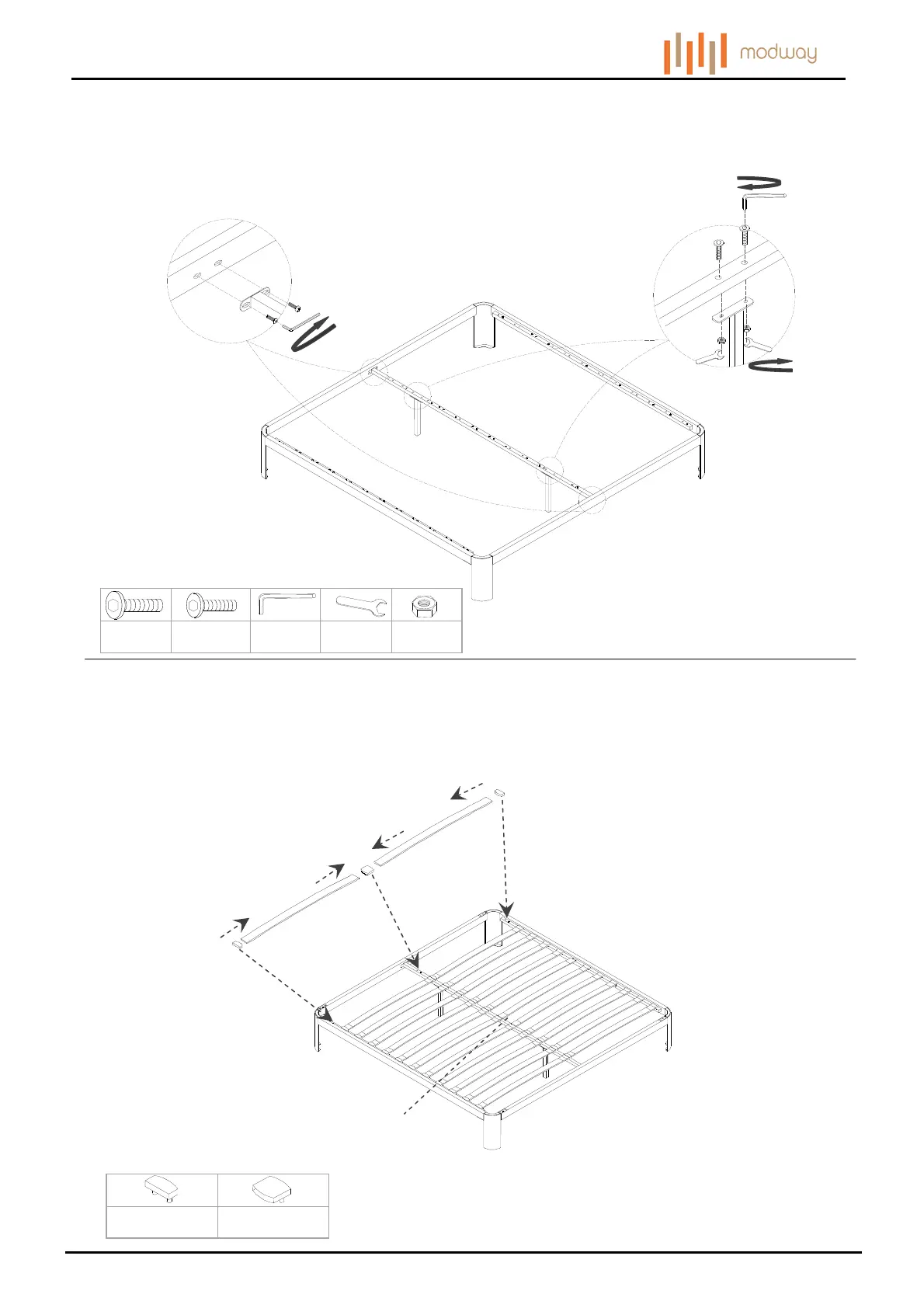

STEP 4:
Insert 2 piece of Side Plastic Cover (F) into each end of 2 pieces of Slat (6) as shown.
Insert the other end of the Slats (6) into 1 piece of Center Plastic Cover (G) as shown.
Insert the assembled Side Plastic Covers (F) into the corresponding holes on Long Board (1), and the assembled Center
Plastic Cover (G) into the corresponding holes on Center Rail (4) as shown.
Repeat the same steps for the remaining 22 pieces Slat (6).
Fx24
Gx12
Hardware & Tool required
1
3
F
2
4
2
Bx4 Cx4 Dx1 Ex1
Hx4
STEP 3:
Place Stretcher (4) to the assembled Long Board (2).
Secure each end of Stretcher (4) by using 2 pieces of Bolt (C) as shown.
Tighten Bolts (C) by using Allen Wrench (D) clockwise until secure.
Place 2 pieces of Support Leg (5) under the assembled Stretcher (4).
Secure each Support Leg (5) by using 2 piece of Bolt (B) and 2 pieces of Nut (H) as shown.
Tighten Bolts (B) and Nuts (H) by using Allen Wrench (D) and Open Wrench (E) until secure.
Hardware & Tool required
B
5
2
2
1
E
1
5
4
3
4
2
6
Assembly is complete. Your bed frame is ready to be enjoyed now!
1
3
3
3
F
G
6
3 3
3
5
C
C
D
B
H
H
E
D
4
