B.2 120/240 V conversion 31

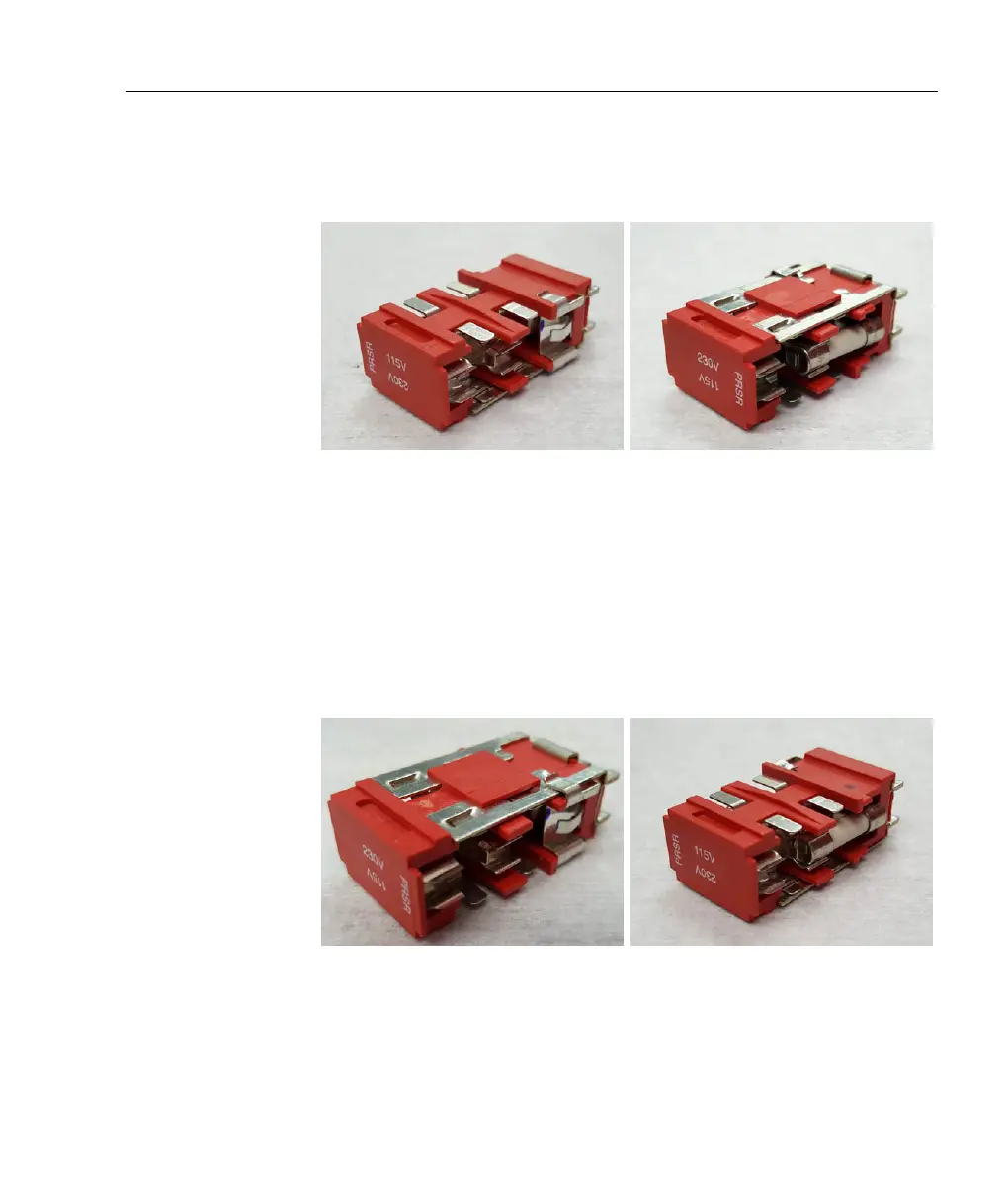

Figure B.4: 230 V bridge (left) and fuse (right). Swap the bridge and fuse
when changing voltage, so that the fuse remains uppermost when inserted.
Figure B.5: 115 V bridge (left) and fuse (right).
