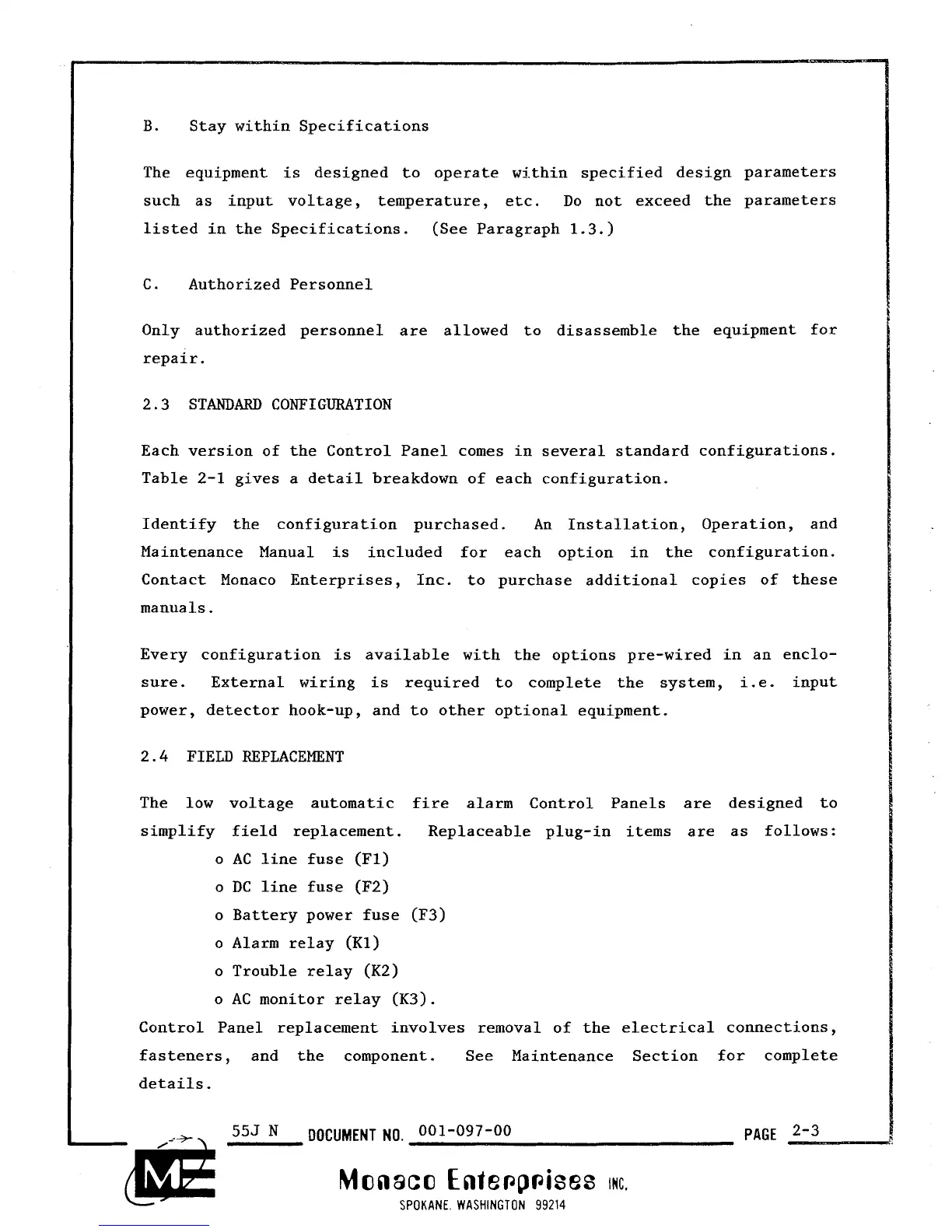

B.
Stay within Specifications
The equipment is designed to operate within specified design parameters
such as input voltage, temperature, etc. Do not exceed the parameters
listed in the Specifications.
(See Paragraph
1.3.)
C. Authorized Personnel
Only authorized personnel are allowed to disassemble the equipment for
repair.
2.3 STANDARD CONFIGURATION
Each version of the Control Panel comes in several standard configurations.
Table 2-1 gives a detail breakdown of each configuration.
Identify the configuration purchased. An Installation, Operation, and
Maintenance Manual is included for each option in the configuration.
Contact Monaco Enterprises, Inc. to purchase additional copies of these
manua 1 s
.
Every configuration is available with the options pre-wired in an enclo-
sure. External wiring is required to complete the system, i.e. input
power, detector hook-up, and to other optional equipment.
2.4 FIELD REPLACEMENT
The low voltage automatic fire alarm Control Panels are designed to
simplify field replacement. Replaceable plug-in items are as follows:
o AC line fuse (Fl)
o DC line fuse
(F2)
o Battery power fuse
(F3)
o Alarm relay
(Kl)
o Trouble relay (K2)
o
AC monitor relay (K3).
Control Panel replacement involves removal of the electrical connections,
fasteners, and the component. See Maintenance Section for complete
details.
