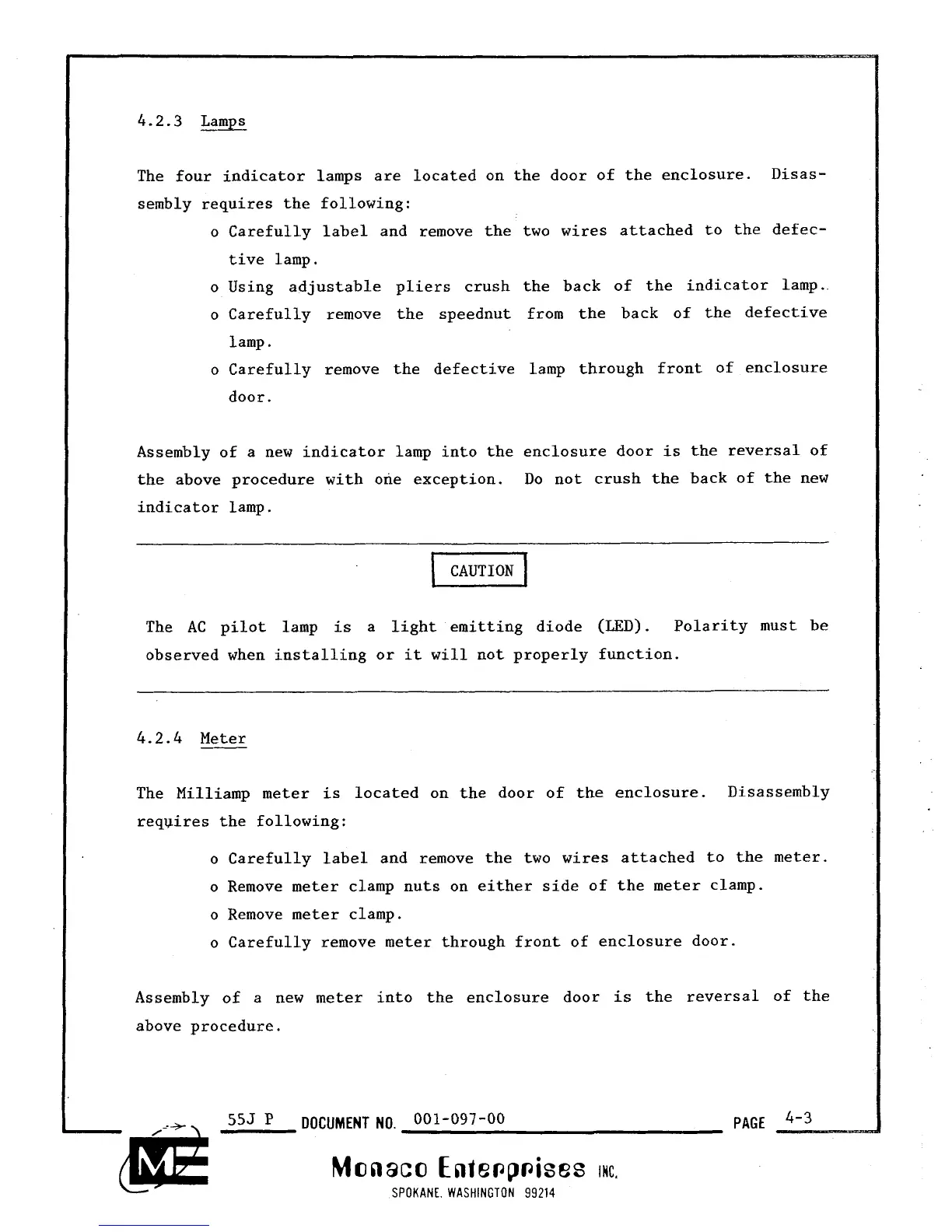

4.2.3
Lamps
The four indicator lamps are located on the door of the enclosure. Disas-
sembly requires the following:
o Carefully label and remove the two wires attached to the defec-
t
ive lamp.
o Using adjustable pliers crush the back of the indicator lamp.
o Carefully remove the speednut from the back of the defective
lamp.
o Carefully remove the defective lamp through front of enclosure
door.
Assembly of a new indicator lamp into the enclosure door
is
the reversal of
the above procedure with one exception. Do not crush the back of the new
indicator lamp.
[
CAUTION
I
The
AC
pilot lamp
is
a
light emitting diode (LED). Polarity must be
observed when installing or
it
will
not properly function.
4.2.4
Meter
The Milliamp meter
is
located on the door of the enclosure. Disassembly
requires the following:
o Carefully label and remove the two wires attached to the meter.
o Remove meter clamp nuts on either side of the meter clamp.
o Remove meter clamp.
o Carefully remove meter through front of enclosure door.
Assembly of a new meter into the enclosure door
is
the reversal of the
above procedure.
Monaco
Ente~p~ises
IMC.
L
fl
~-
SPOKANE. WASHINGTON
99214
