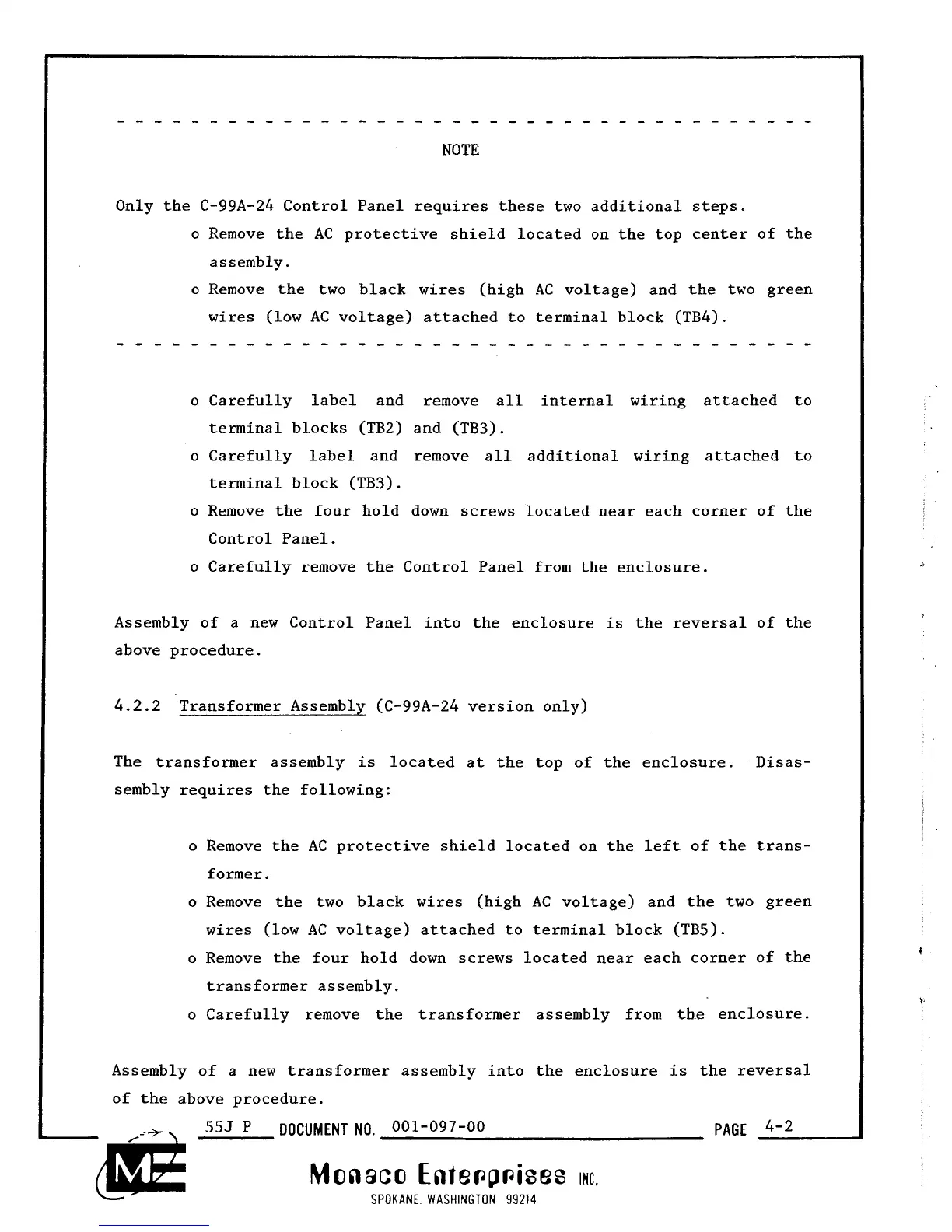

Only the C-99A-24 Control Panel requires these two additional steps.
o Remove the AC protective shield located on the top center of the
assembly.
o Remove the two black wires (high AC voltage) and the two green
wires (low AC voltage) attached to terminal block
(TB4).
......................................
o Carefully label and remove all internal wiring attached to
terminal blocks (TB2) and (TB3).
o Carefully label and remove all additional wiring attached to
terminal block (TB3).
o Remove the four hold down screws located near each corner of the
Control Panel.
o Carefully remove the Control Panel from the enclosure.
Assembly of a new Control Panel into the enclosure is the reversal of the
above procedure.
I
4.2.2
Transformer Assembly (C-99A-24 version only)
The transformer assembly is located at the top of the enclosure. Disas-
sembly requires the following:
o Remove the AC protective shield located on the left of the trans-
former.
o Remove the two black wires (high AC voltage) and the two green
wires (low AC voltage) attached to terminal block
(TB5).
o Remove the four hold down screws located near each corner of the
transformer assembly.
o Carefully remove the transformer assembly from the enclosure.
Assembly of a new transformer assembly into the enclosure is the reversal
of the above procedure.
