SUPERVISORY
NRREM
MILLInIIIIETER
0.10
MA.
IRED) ALLW
(AMBER)
ALAN
SILENCED

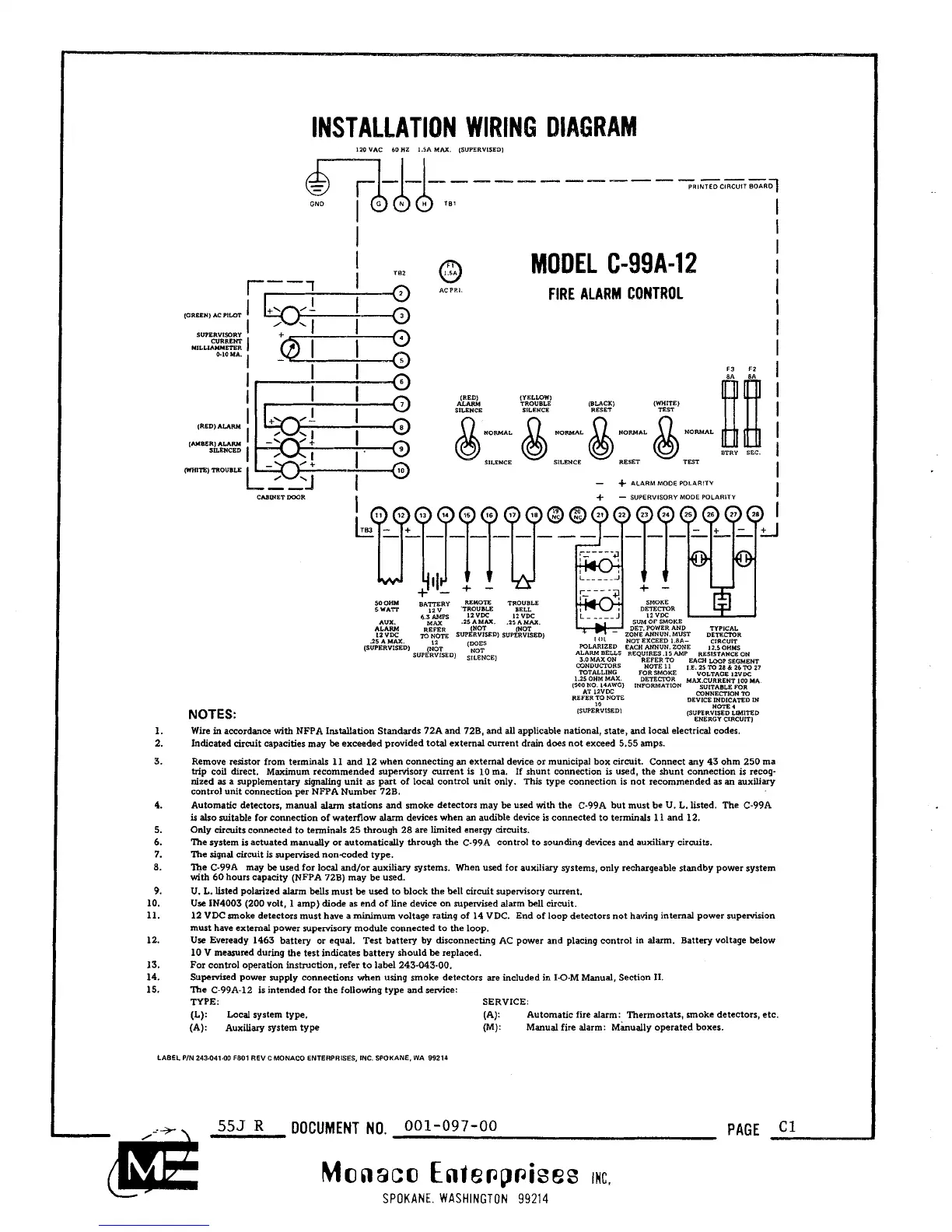

INSTALLATION
WIRING
DIAGRAM
CMMET
DOOR
I
M
OHM
5
WAIT
AUX.
ALARM
12
vD€
25 AMAX.
(SUPERVISED)
MODEL
C-99A-12
FIRE
ALARM
CONTROL
IRED1
ALARM SILENCE
NORMAL
SILENCE
(YELLOW)
TROUBLE
SILENCE
NORMAL
SILENCE
NORMAL
RESET
NORMAL
TEST
-
+
ALARMMODE
POLAR!TV
4-
-
SUPERVISORY
MODE
POLARITY
PAGE
C1
Monaco Ente~p~ises
MC,
SPOKANE WASHINGTON
99214
10
(SUPERVISED)
NOTE
4
NOTES:
(SUPERVISED
LBIITED
ENERGY
CIRCUIT)
Wire in accordance with NFPA Installation Standards 72A and 72B, and all applicable national, state, and local electrical codes.
Indicated circuit capacities may be exceeded provided total external current drain does not exceed 5.55 amps.
Remove resistor from terminals 11 and 12 when connecting an external device or municipal box circuit. Connect any 43 ohm 250 ma
trip coil direct. Maximum recommended supervisory current is 10 ma.
If shunt connection is used, the shunt connection is recog-
nized
as
a supplementary signaling unit
as
part of local control unit only. This type connection is not recommended as an auxiliary
control unit connection per NFPA Number 72B.
Automatic detectors, manual alarm stations and smoke detectors may be used with the C-99A but must be
U.
L. listed. The C-99A
is
also suitable for connection of waterflow alarm devices when an audible device is connected to terminals 11 and 12.
Only circuits connected to terminals 25 through 28 are limited energy arcuits.
The system
is
actuated manually or automatically through the C-99A control to sounding devices and auxiliary circuits.
The
signal
circuit is supervised noncoded type.
The C-99A may be used for local and/or auxiliary systems. When used for auxiliary systems, only rechargeable standby power system
with 60 hours capacity (NFPA 728) may be used.
U.
L. listed polarized alarm bells must be used to block the bell circuit supervisory current.
Use
IN4003 (200 volt, 1 amp) diode as end of line device on supervised alarm bell circuit.
12 VDC smoke detectors must have a minimum voltage rating of 14 VDC. End of loop detectors not having internal power supervision
must have external power supervisory module connected to the loop.
Use
Eveready 1463 battery or equal. Test battery by disconnecting AC power and placing control in alarm. Battery voltage below
10 V measured during the test indicates battery should be replaced.
For control operation instruction, refer to label
243-043-00.
Supervised power supply connections when using smoke detectors are included in I-O-M Manual, Section
11.
The
C-99A-12 is intended for the following type and senrice:
TYPE: SERVICE:
(L): Local system type. (A): Automatic fire alarm: Thermostats, smoke detectors, etc.
(A): Auxiliary system type
(M):
Manual fire alarm: ~huall~ operated boxes.
LABEL
PIN
243041.00
FBDl
REV
CMONACO
ENTERPRISES,
INC. SPOKANE.
WA
99214
