6

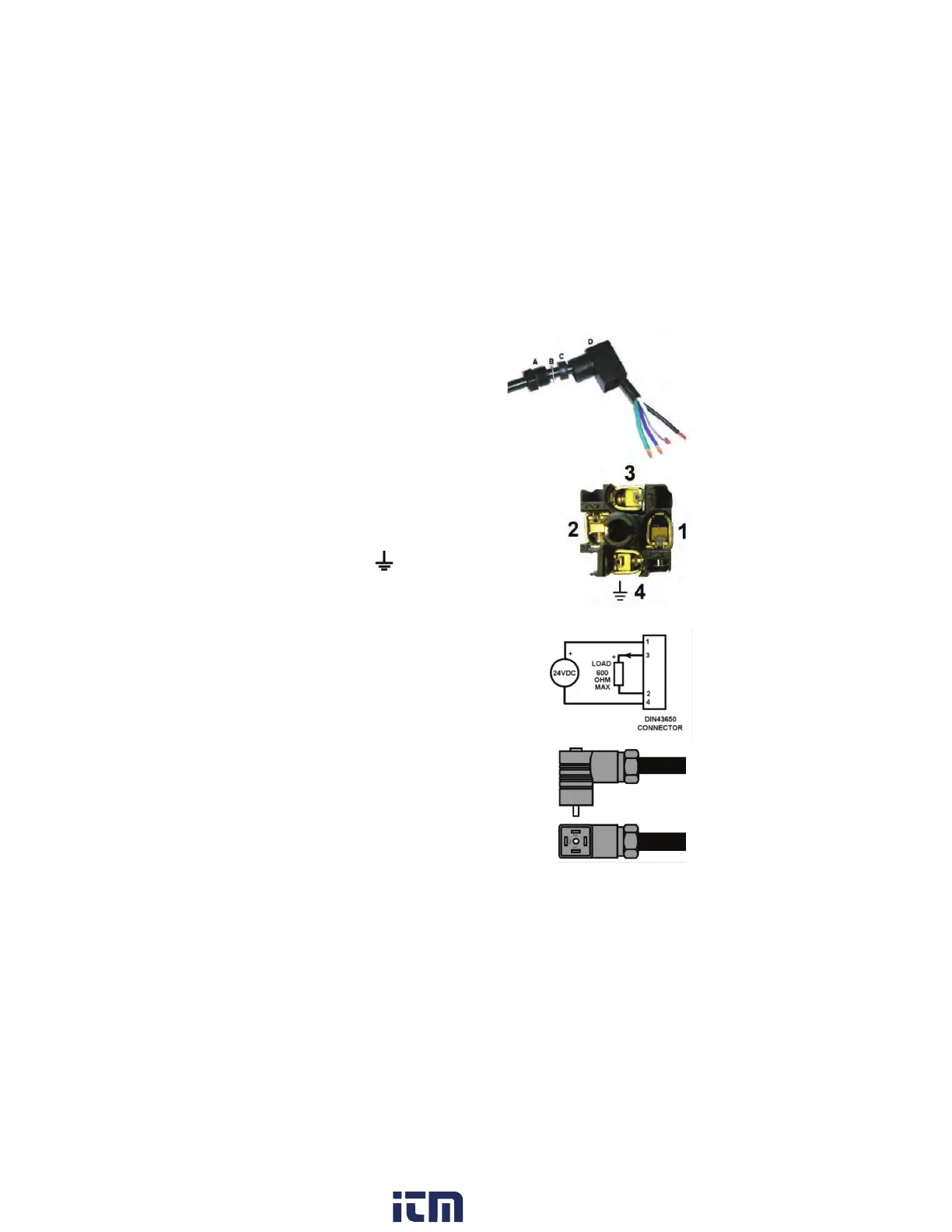

To connect, remove the screw and plug
base from the housing. Thread the
cable through the PG7 gland (A), metal
washer (B) and rubber washer (C).
Insert the wires into the plug housing
(D) and strip the wire ends
~0.24” (6mm).
The plug has four compression screw
connecons. Match pin numbers printed on the
connector against numbers displayed in the
image right – note that pin 4 is not marked and
is the ground pin -
Make a note of the wire colors, insert the
stripped ends of the wires into the connecons
and secure with the screw. The connecons are
as follows:
1) Power +24V DC
2) mA isolated output -
3) mA isolated output +
4) Power 24VDC COM
Once wired, insert the plug into the housing –
note the orientaon of the plug housing. When
connecng the plug to the socket ensure the
gasket is between the plug and socket. Tighten
the screw.
