4.0 POWER / TRANSMITTER CONNECTIONS

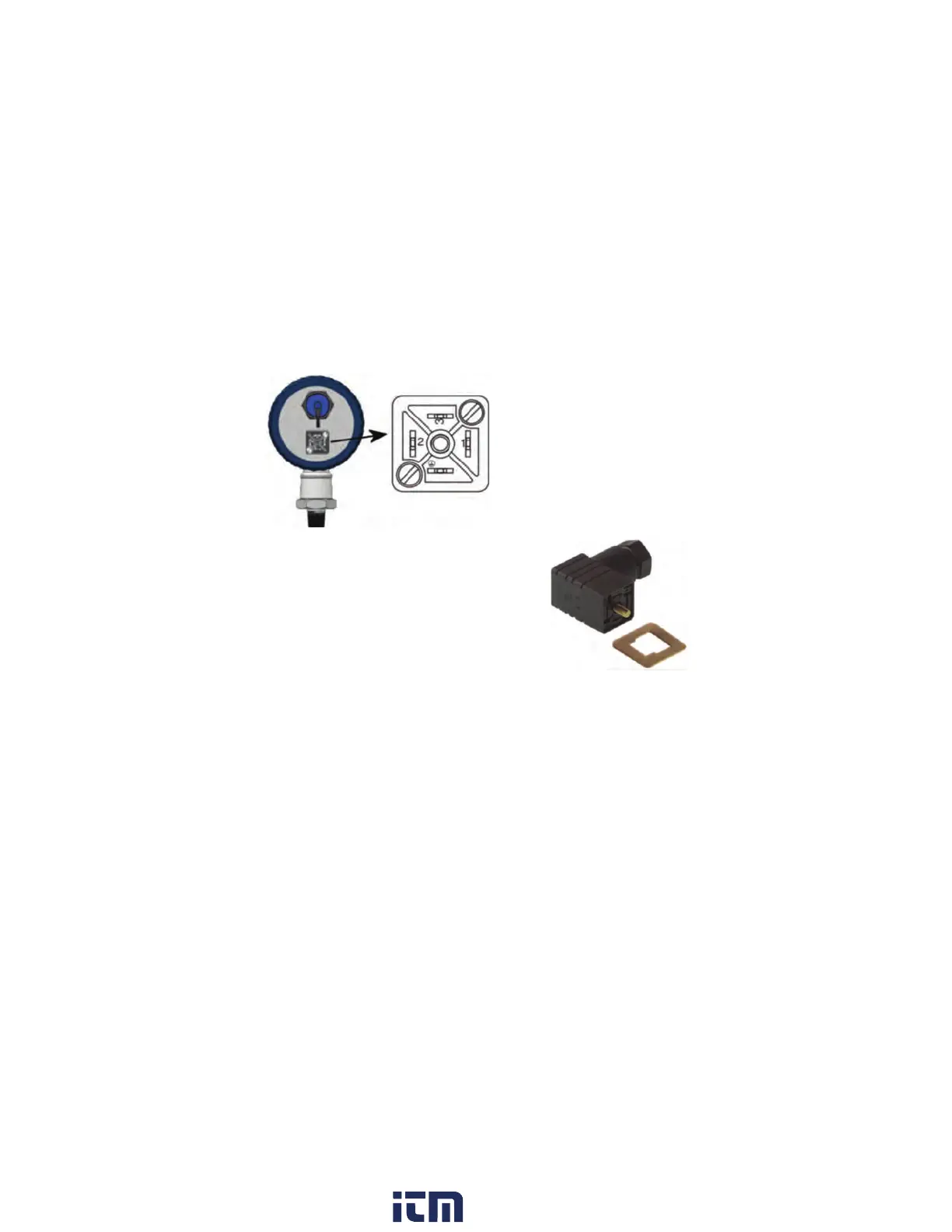

The Logger has a 4 pole
DIN43650 solenoid valve style
connector on the rear panel for
power and current out
connecons.
A mang plug (Hirschmann GDS 307) and flat
gasket (Hirschmann GDS 307-4) are supplied.
The plug is a Form C connector with 3 Poles +
Ground, 9.4 mm pin spacing, with a black
fiberglass reinforced polyamide housing, and a
PG 7 cable entry which accommodates a
4.5 mm to 6 mm (0.177 to 0.236 inch) cable. It
has screw terminaon connecons for field
installaon and is water and dust proof to IP 65 standards when used
with the supplied gasket. The cover can be inserted on the inner plug in
one of four 90° orientaons.
The output is an isolated 4 to 20mA current source with a 12Vdc
compliance voltage capable of driving loads up to 600 Ohms with 24Vdc
power.
