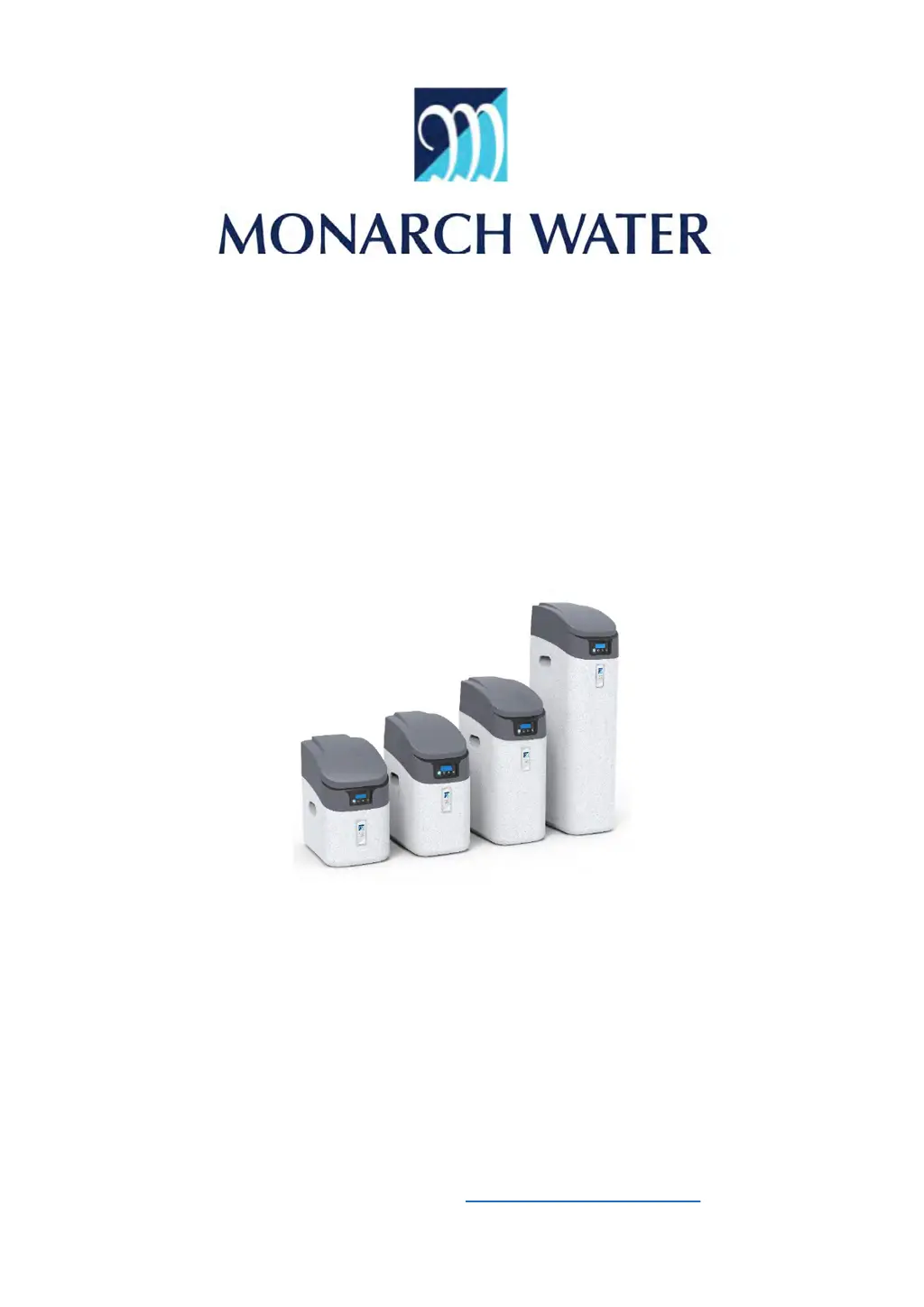

Parts and Service Guide
Europe
Effective November 2019
Monarch HE Series Water
Softeners
‘Suppliers to H.M. the Queen’s Estate at Sandringham’
T +44 (0)1986 784759 F +44 (0)1986 784769
info@monarchwater.co.uk www.monarchwater.co.uk

Table of Contents

Questions and Answers

  • A
    amynolanAug 22, 2025
    What to do if my Monarch Water Dispenser is using excessive salt?
    • C
      Christopher FrankAug 22, 2025
      If your Monarch Water Dispenser is using excessive salt, it could be due to a few reasons: * The salt setting may be improper. Check the salt usage and salt setting to ensure they are correctly configured. * There might be excessive water in the brine tank. Consult section #5 for troubleshooting this issue. * The programming could be incorrect. Review the programming and reset it as needed to match your water conditions and usage patterns.
  • L
    Lisa TorresAug 25, 2025
    What to do if my Monarch Water Dispenser has low water pressure?
    • D
      Dana WilliamsAug 25, 2025
      If you're experiencing low water pressure with your Monarch Water Dispenser, consider the following: * Iron or scale buildup in the line feeding the unit can restrict water flow. Clean the pipes to remove any deposits. * Iron buildup inside the valve or tank can also cause low pressure. Clean the control and add resin cleaner to clean the bed. Additionally, increase the regeneration frequency. * The inlet of the control might be plugged with foreign material. Remove the piston and clean the control valve to clear any obstructions.
  • C
    Catherine AndersonAug 26, 2025
    What to do if Monarch Water Dispenser has excessive water in brine tank / Softener running to overflow?
    • L
      Lauren HarrisonAug 27, 2025
      If your Monarch Water Dispenser has excessive water in the brine tank or is running to overflow, consider the following: * The injector or screen might be plugged. Clean these parts to ensure proper flow. * There could be foreign material in the brine valve. Clean the valve to remove any obstructions. * The drain line flow control might be plugged. Clean the flow control to ensure proper drainage. * The brine valve may have failed. Replace the brine valve if cleaning doesn't resolve the issue. * The programming could be incorrect. Check the programming and reset it as needed. * Check the injector assembly for possible rolled or twisted O-rings. Replace them if necessary.
  • J
    Jamie MillerAug 28, 2025
    What to do if my Monarch Water Dispenser has resin in drain line?
    • D
      Diana MillerAug 28, 2025
      If you find resin in the drain line of your Monarch Water Dispenser, here are a couple of possible causes: * There may be air in the water system. Check the well system for a properly functioning air eliminator control. * The drain line flow control (DLFC) button might be incorrect. Check for the proper flow rate to ensure it's correctly configured.
  • C
    Christopher LawrenceAug 29, 2025
    Why does my Monarch Water Dispenser control cycle continuously?
    • J
      Joseph OlsonAug 29, 2025
      If your Monarch Water Dispenser's control cycles continuously, it could be due to: * The timer not operating properly, in which case you should replace the timer. * Faulty micro switches or harness, requiring replacement of the faulty micro switch harness. * Faulty cycle cam operation, which may need replacement or reinstallation of the cycle cam.
  • G
    Gloria SmithSep 2, 2025
    Why does my Monarch Water Dispenser softener fail to regenerate?
    • N
      Natalie AvilaSep 2, 2025
      If your Monarch Water Dispenser softener fails to regenerate, consider these potential causes: * An interruption in electrical service to the unit. Ensure permanent electrical service by checking the fuse, plug, chain, or switch. Also, check and reset the time of day. * The controller is not operating properly. Replace the controller. * A defective valve drive motor. Replace the drive motor. * Improper programming. Check the programming and reset as needed.
  • J
    Jack BrownSep 4, 2025
    Why is there iron in the softened water from my Monarch Water Dispenser?
    • S
      Stephanie FrenchSep 4, 2025
      If you notice iron in the softened water from your Monarch Water Dispenser, it could be because: * The iron content exceeds recommended parameters. Consider adding an iron removal pre-filter system. * The resin bed is fouled. Check the backwash, brine draw, and brine tank fill. Increase the frequency of regeneration and backwash time. Ensure the softener does not regenerate at the same time the iron filter backwashes.
  • D
    Denise KingSep 6, 2025
    Why is there salt water in the service line of my Monarch Water Dispenser?
    • J
      James TaylorSep 6, 2025
      If you're experiencing salt water in the service line of your Monarch Water Dispenser, it could be due to: * A plugged injector system. Clean the injector and replace the screen. * The timer not operating properly. Replace the timer. * Foreign material in the brine valve. Clean or replace the brine valve. * Foreign material in the brine line flow control. Clean the brine line flow control. * Low water pressure. Raise the water pressure. * Improper programming. Check the programming and reset as needed.
  • T
    Thomas BeltranSep 8, 2025
    Why does my Monarch Water Dispenser softener fail to draw brine?
    • D
      Daniel BoyerSep 8, 2025
      If your Monarch Water Dispenser softener isn't drawing brine, it could be due to: * A plugged drain line flow control. Clean the drain line flow control. * A plugged injector. Clean or replace the injectors. * A plugged injector screen. Replace the screen. * Line pressure that is too low. Increase the line pressure to at least 20 psi at all times. * An internal control leak. Replace the seals and spacers and/or piston assembly. * Improper programming. Check programming, reset as needed.
  • L
    lindahaasSep 9, 2025
    What to do if the Main PCB is not working in Monarch Water Dispenser?
    • K
      Karen MurphySep 10, 2025
      If the Main PCB in your Monarch Water Dispenser is not working: * Check the electrical service and transformer to ensure there is power. * If there is power, the PCB may have failed and needs to be replaced.

Summary

General Installation and Setup

Planning and Plumbing

Steps for locating and connecting the water softener.

Electrical and Water Hardness

Connecting power and testing water hardness levels.

Controller Configuration

Setting the electronic controller's time and hardness.

Initial Softener Flush

Procedure for flushing the softener after installation.

Optional Accessories

Monarch Rapid-Fit Bypass

Details and order reference for the Rapid-Fit Bypass.

Model Conversion and Guides

Domestic to Horeca Conversion

Instructions for converting domestic models to Horeca.

Company Label Guide Chart

Chart identifying company labels for different units.

Product Performance and Specifications

HE Performance Testing

Performance data for HE series water softeners.

Default Unit Sizes

Table of default unit sizes and specifications.

Troubleshooting Guide

Water Quality Issues

Resolving issues with water softness, pressure, and iron content.

Salt, Brine, and Overflow Problems

Troubleshooting salt usage, brine tank, and overflow issues.

Control and Electrical Faults

Addressing control cycles, regeneration, and PCB problems.

Other Operational Issues

Resolving salt water in service lines and brine draw failures.

Exploded Views

System Exploded View

Exploded diagram of the 85HE system components.

Control Valve Exploded View

Exploded diagram of the 85HE control valve.

Power Head Exploded View

Exploded diagram of the 85HE power head assembly.
