Monark Ergomedic 828 E - Page 15

Monark Ergomedic 828 E
15

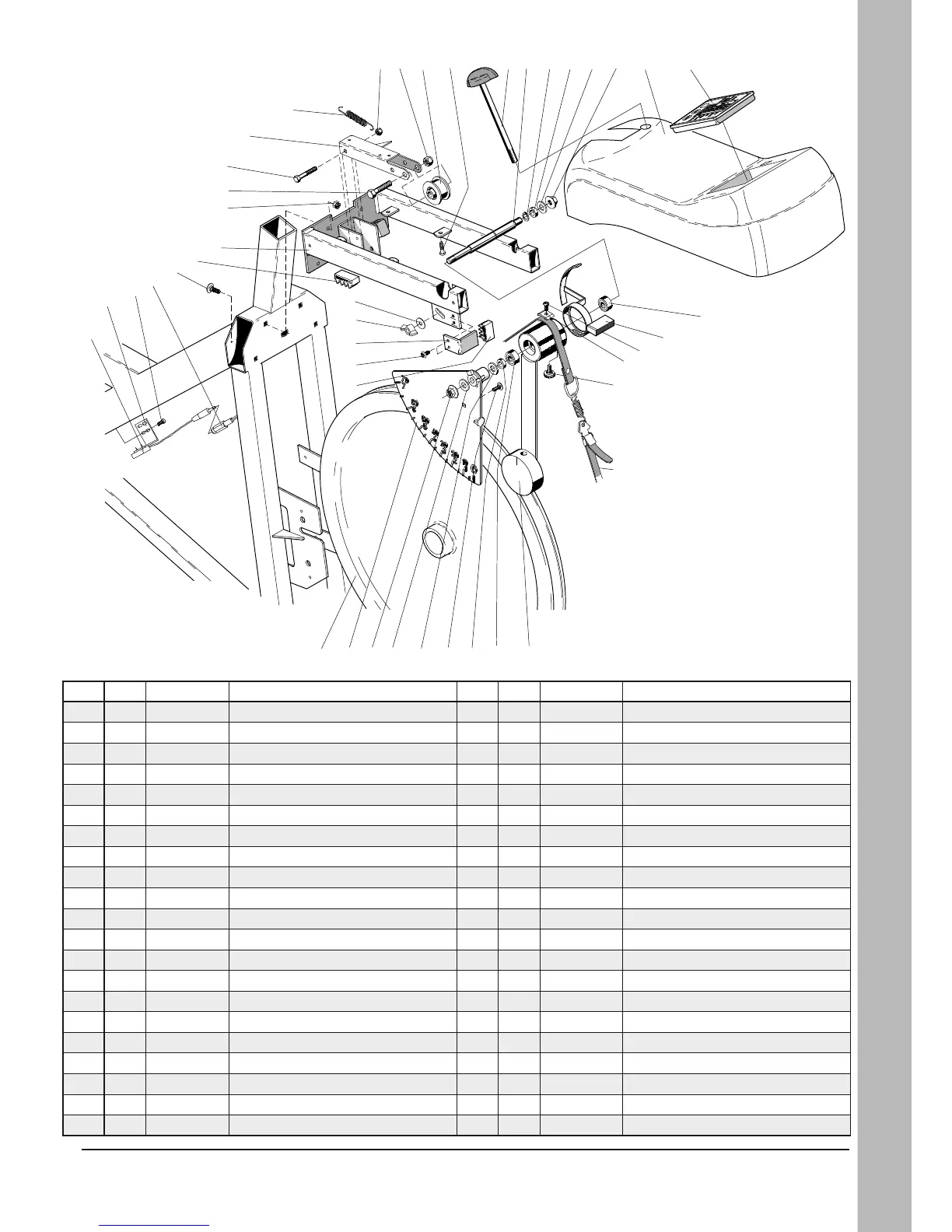

Spare parts
12
14
13
15
2
31
1
3
9
5
4
7
3 10 8 17 6 25 26 20 18 37 16 11
24
21
35
34
22
33
23
24
20271818371936
31
32
30
29
28
Pos. Qty. Art.No. Description Pos. Qty. Art.No. Description
1 1 9300-30 Frame for equipment 18 3 5866 Washer
2 4 9300-21 Screw MVBF 6x16 mm 1 9300-36 Meter panel, complete
4 5863 Washer 19 1 9339-100 -Meter panel
3 5 5843-9 Nut M6 20 2 9000-17 -Spacer
4 1 9300-22 Tension lever 21 1 9300-93 -Meter reader 7kp
5 1 14333-9 Screw M6x45 mm 22 1 9000-103 -Screw
6 1 9300-25 Tension screw M8, complete 23 1 9300-88 -Weight lever
7 1 9100-20 Spring 24 2 19001-6 -Ball bearing 6001-2Z
8 1 9100-26 Tension cylinder complete 25 1 9300-86 -Axle
9 1 14358 Screw M8x40 mm 26 1 9300-87 -Lock ring SgA 12
10 1 5844 Locking nut M8 27 1 9339-21 Screw
11 1 9300-170 Digitalmeter 28 1 5862 Washer
2 2142 Battery 14 x 50 mm 29 1 9000-102 Wing nut
12 1 9326-162 Crank sensor with cable 30 1 9300-94 Stop
2 9103-40 Screw for crank sensor 31 2 9300-99 Plastic stop
13 1 9126-75 Screw RXS B8 x 9.5 FZB 32 1 5671-9 Screw M5 x 10 mm
14 1 9326-166 Sensor holder 33 1 9103-62 Brake belt, complete
15 1 9326-263 Cable 620 mm 34 1 9300-92 Washer
5 9300-66 Holder for cable 35 1 5675-9 Mounting screw
16 1 9300-142 Instrument cover 36 1 9300-3 Brake wheel
17 4 5768 Mounting screw for cover 37 2 5799 Nut
