Monark Ergomedic 828 E - Spare Parts List

Monark Ergomedic 828 E
14

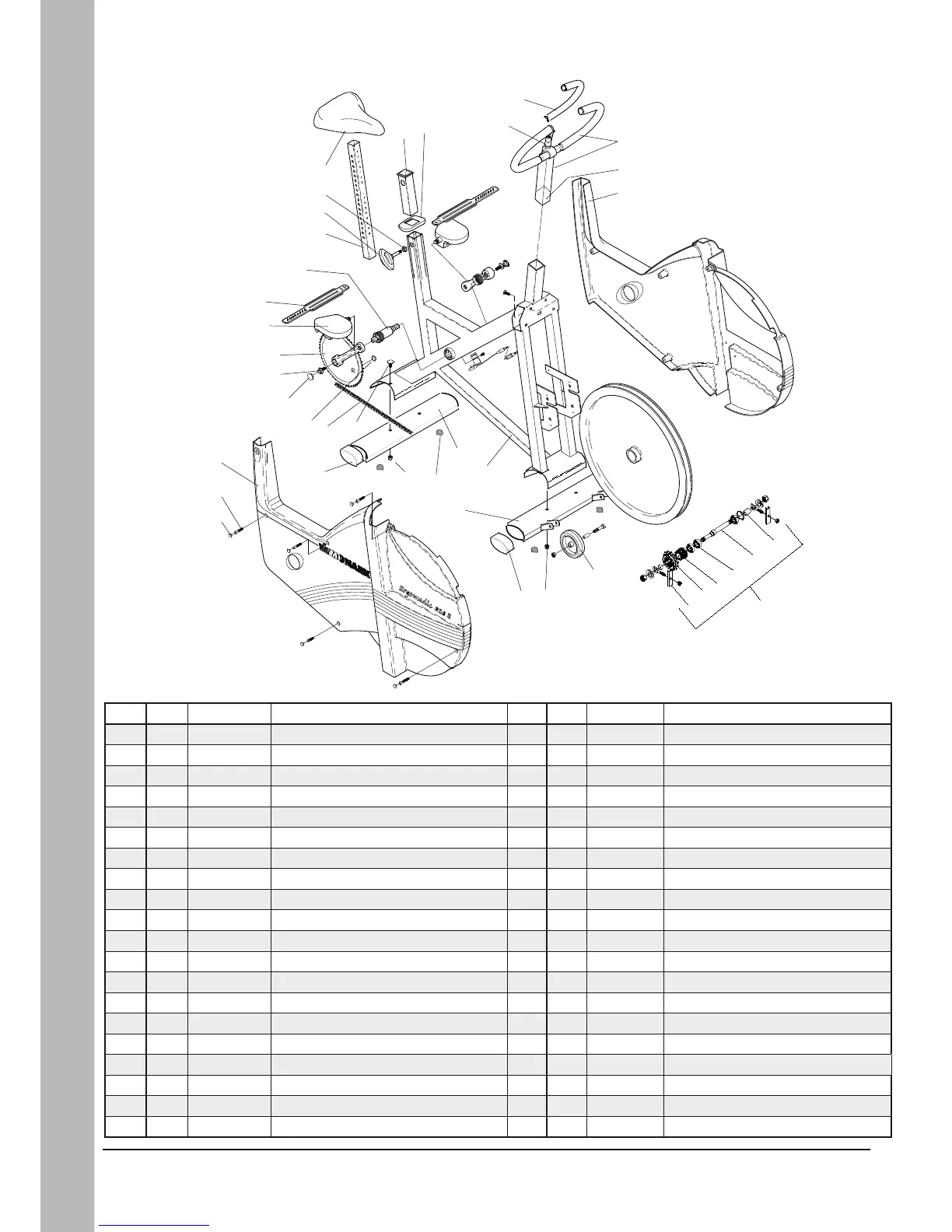

Spare parts
Spare parts
3
6
5
4
1
29
30
31
32
33
34
35
36
37
2
6
3
26
25
27
28
24
23
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
Pos. Qty. Art.No. Description Pos. Qty. Art.No. Description
1 1 9301-15 Support tube, front 20 1 9300-115 Bushing f. saddle post
2 1 9301-16 Support tube, rear 21 1 9300-123 Top cover
3 4 9328-51 Plastic cap, blue 22 1 9300-280 Handlebar complete
4 4 9328-26 Rubber foot 23 1 9100-180 -Lever M8
5 1 9328-37 Transport wheel compl. (pair) 24 1 9126-72 -Handgrip (pair)
6 4 5845 Locking nut M8 25 1 9300-291 Expander wedge
7 2 9300-12 Screw MVBF M8x16 mm 26 1 9300-61 Frame cover, left
8 1 9300-55 Chain 1/2 x 1/8”, 116 l 27 1 9300-60 Frame cover, right
9 1 9326-164 Magnet 28 4 5673-9 Mounting screw LKT-TT 5x12mm
10 2 8523-2 Dust cover 29 10 9306-12 Plastic plug
11 2 8523-115 Screw M6S 8.8 M8 x 20 FZB 30 1 9301-5 Frame
12 1 9300-430 Steel crank set, complete 31 1 9300-24 Wheel suspension complete set
13 1 9300-220 Pedal, (pair) 32 1 9000-12 -Chain adjuster (pair)
14 1 9300-207 Pedal strap, (pair) 33 1 9106-13 -Sprocket
15 1 8966-175 BB cartridge bearing, complete 34 1 9106-14 -Connection
16 1 9300-138 Saddle post 35 3 91001-6 -Bearing 6001 - 2z
17 1 9300-122 Locking screw 36 1 9300-118 -Axle
18 1 9300-134 Pressure washer 37 1 9322-117 -Bush, 23 mm
19 1 4994-5 Saddle 1 9339-98 Chest belt
1 9300-114 -Saddle bracket 1 9300-365 PC program
