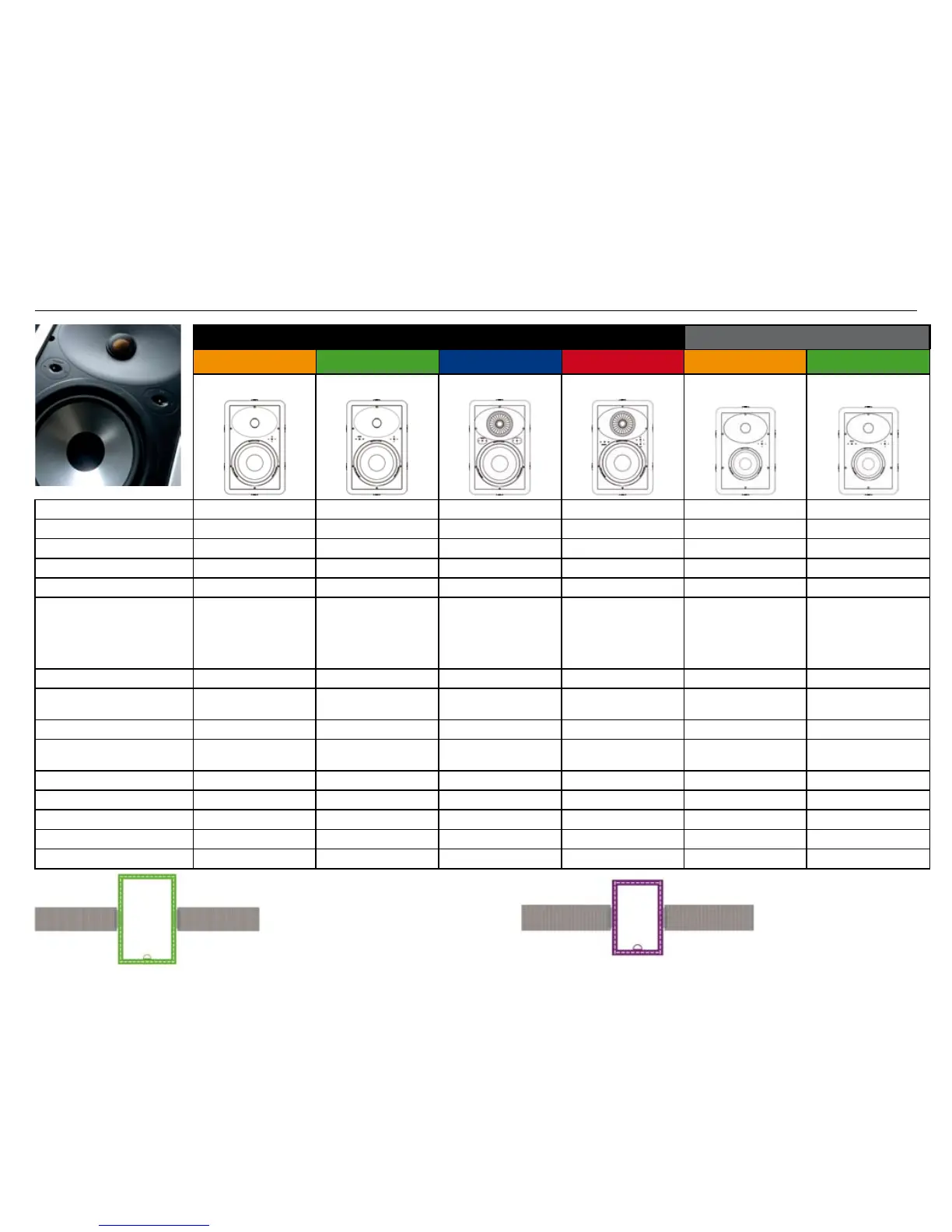

Monitor Audio 100 series User Manual

8” Full Range Speakers 6.5” Full Range Speakers
Good Better Best Flagship Good Better
W180 W280 W280LCR W380LCR W165 W265
Frequency Response
50Hz - 25KHz 45Hz - 30KHz 45Hz - 30KHz 45Hz - 30KHz 60Hz - 25KHz 55Hz -30KHz
Impedance (nominal)
6 Ohms 6 Ohms 6 Ohms 6 Ohms 6 Ohms 6 Ohms
Sensitivity (1W@1M)
90dB 90dB 90dB 90dB 88.5dB 88.5dB
Power Handling (R.M.S)
120 W 120 W 130 W 150 W 65 W 75 W
Recommended Amp
10 - 120 W 15 - 120 W 20 - 130 W 20 - 150 W 10 - 65 W 10 - 75 W
Driver Conguration
8˝ MMP II cone bass
driver
1˝ C-CAM gold tweeter
8˝ MMP II cone bass
driver
1˝ C-CAM gold tweeter
8˝ C-CAM cone bass driver
4˝ C-CAM inverted mid-
range driver
1˝ C-CAM gold tweeter
8˝ C-CAM cone bass driver
with RST
4˝ C-CAM inverted mid-
range driver
1˝ C-CAM gold tweeter
6.5˝ MMP II cone bass
driver
1˝ C-CAM gold tweeter
6.5˝ C-CAM cone bass
driver
1˝ C-CAM gold tweeter
IDC Driver Module
_ _
a a
_ _
Overall Diameter
16 5/8 x 10 5/8˝
(423 x 270mm)
16 5/8 x 10 5/8˝
(423 x 270mm)
16 5/8 x 10 5/8˝
(423 x 270mm)
16 5/8 x 10 5/8˝
(423 x 270mm)
14 1/2 x 9 13/16˝
(368 x 249mm)
14 1/2 x 9 13/16˝
(368 x 249mm)
Mounting Depth
3 7/8˝ (99mm) 3 7/8˝ (99mm) 3 7/8˝ (99mm) 3 7/8˝ (99mm) 3 9/16˝ (90mm) 3 9/16˝ (90mm)
Cut-out Hole Diameter
15 1/4 x 9 3/16˝
(387 x 234mm )
15 1/4 x 9 3/16˝
(387 x 234mm)
15 1/4 x 9 3/16˝
(387 x 234mm)
15 1/4 x 9 3/16˝
(387 x 234mm)
13 1/16 x 8 3/8˝
(332 x 212.5mm)
13 1/16 x 8 3/8˝
332 x 212.5mm
H.F. Level Switch (+3db/0dB/-3dB)
a a a a a a
Midrange Level Switch
_ _ _
a
_ _
Boundary Compensation switch
_
a a a
_
a
Pre-Construction Bracket
WB8 WB8 WB8 WB8 WB6 WB6
Timbre-Matching
Bronze / Radius Silver Silver Gold Bronze / Radius Silver
WB8 construction bracket
ts all 8˝ In-wall speakers
8˝ and 6.5˝ In-Wall speakers
WB6 construction bracket
ts all 6.5˝ In-wall speakers

Monitor Audio 100 series Specifications

General

Nominal Impedance	8 Ohms
Type	2-way
High Frequency Driver	25 mm C-CAM Gold Dome tweeter
Series	100
Recommended Amplifier Power	30 - 100 W
