Procedure
NOTE: If you are choosing to paint your In-Ceiling loudspeaker, we recommend you do this prior to
installation. We would also recommend using the paint mask for the baffle. Remove the mask after paint has
completely dried. Fit the grille membrane to the inside of the grille after painting.

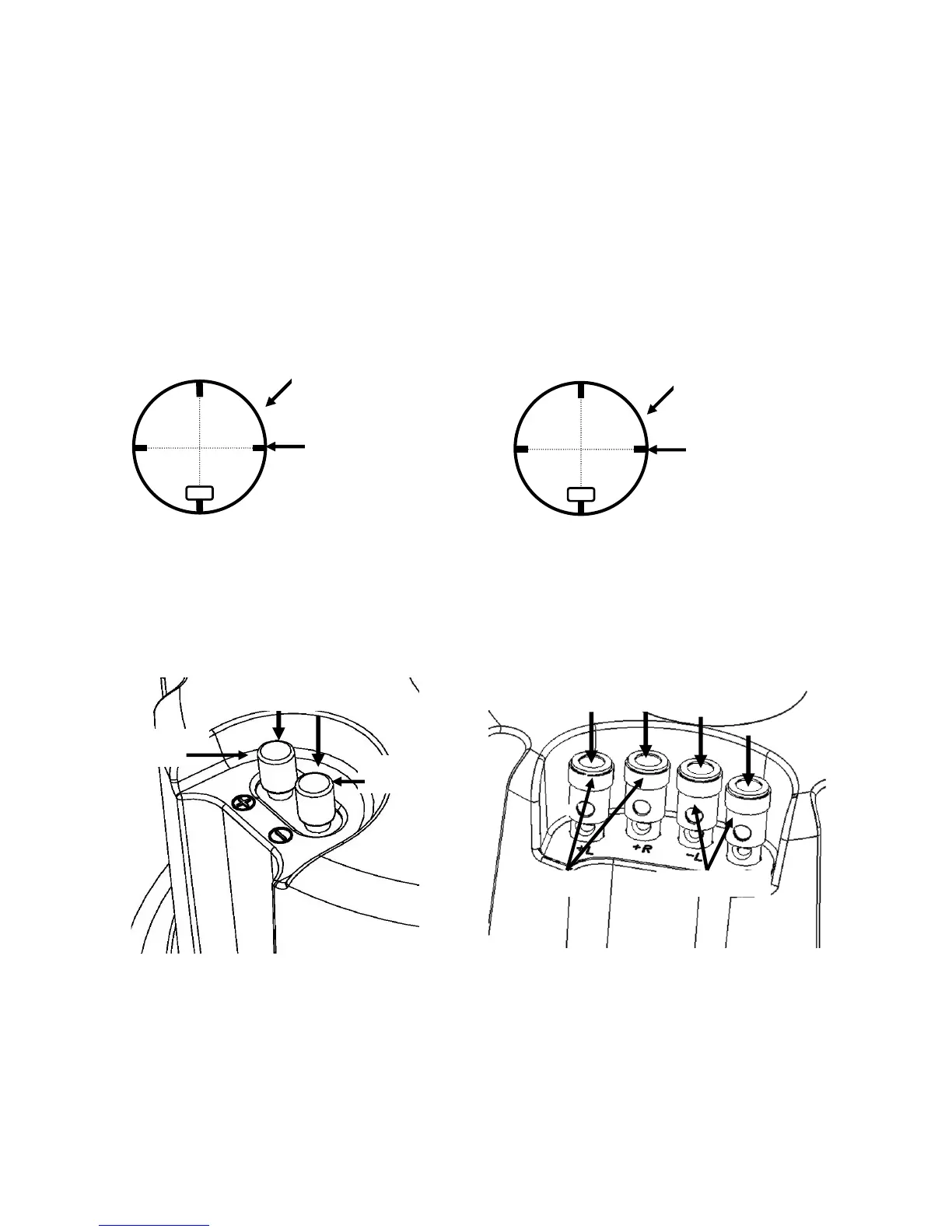

1. Use template to locate position of cut out. Fig 1 for BR, RS & GS In-Ceiling Products and Fig 2 for Radius In-
Ceiling products. The adhesive backing allows for repositioning a number of times.
2. Draw around the template to define the circumference of the cut out - 250mm ( 9
7
/
8
inches ) for BR, RS & GS
In-Ceiling products, 173mm (6
13
/
16
Inches) for Radius Inceiling products
3. Remove template and cut hole.
4. Locate speaker cable and connect by pushing the terminals in and releasing to clamp the cables as shown
below Fig 3 for Radius, BR, RS & GS In-Ceiling Products and Fig 4 for Radius Stereo In-Ceiling.
5. Fit back box into prepared hole and tighten fixing clamps. These will move outwards on tightening! DO NOT
OVERTIGHTEN! Once contact is made 2-3 turns are all that is required.
6. TO FINE-TUNE THE SPEAKERS PLEASE REFER TO PAGE 9.
Push down to fit cable
Red (Positive)
Black (Negative)
Fig 3
Fig 1
BR, RS, GS
In-Ceiling Template
Not to scale
Hole to be cut
250mm ( 9
7
/
8
”)
Diameter
Position of 4
fixing clamps
Fig 2
Radius In-Ceiling
Template
Not to scale
Hole to be cut
173mm (6
13
/
16
”)
Diameter
Position of 4
fixing clamps
Fig 4
Push down to fit cable
Red (Positive) Black (Negative)
