Satellite speaker wiring option 1
With this option, you connect the wiring for the main/satellite speakers directly to
the subwoofer. There is no performance advantage in wiring your system this way,
it may just be a factor of convenience, remembering to keep the speaker cables
approximately the same length to avoid different loading to the amplifier.
1 Connect the subwoofer Red (+) ‘high level output’ terminal to the Red (+)
terminal on the back of the left main / satellite speaker.
2 Connect the subwoofer Black (-) ‘high level output’ terminal to the Black (-)
terminal on the back of the main / satellite speaker.
3 Make a matching connection to the right channel main/satellite.

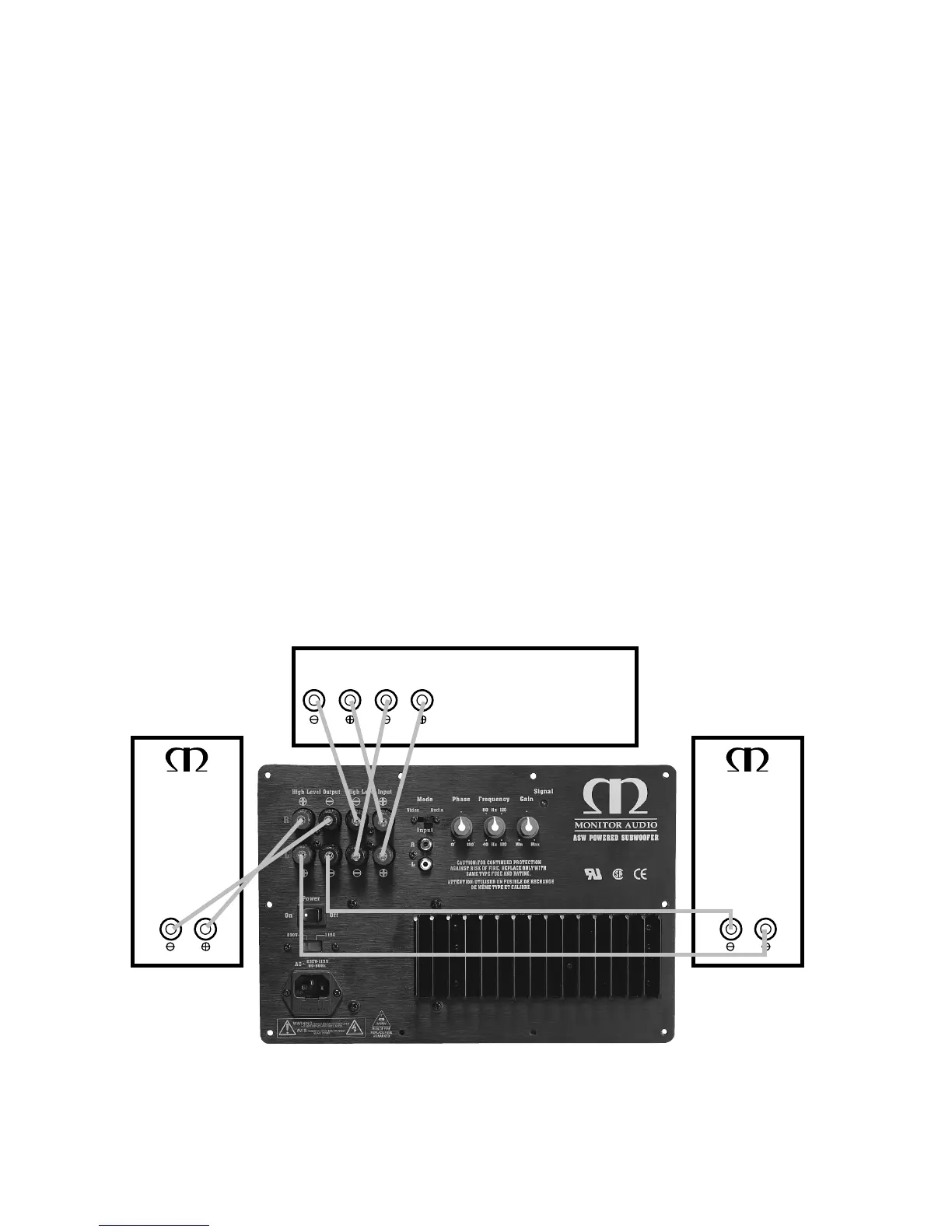

Fig. 2
