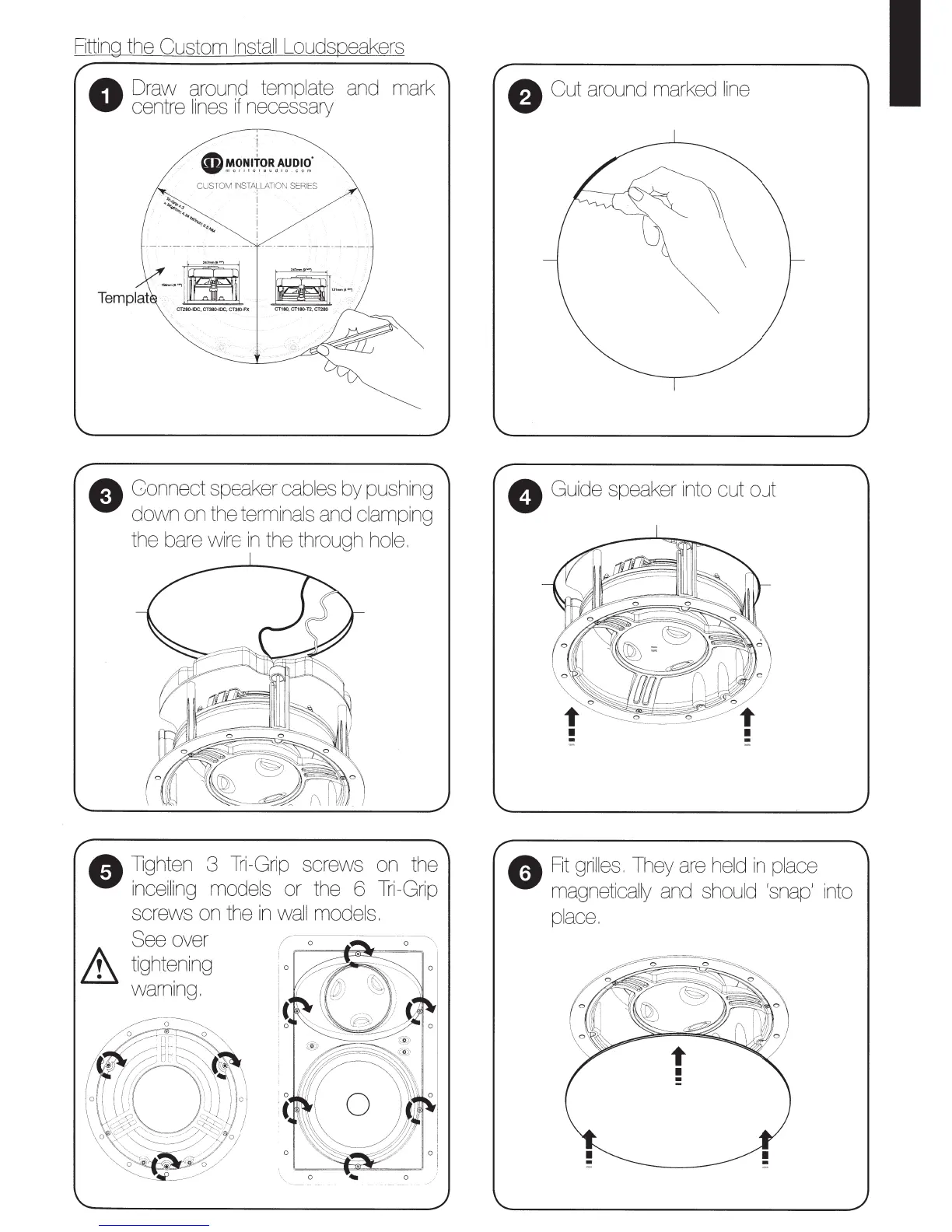

Fi tting the Custom Instal l Loudspeakers
0
Draw around template and mark
cen tr e l ines if necessary
I
0 ~C?~If<?~ . ~~~~C! ·
CUSTOM INS T A~LATION SERIES
i
I
i
i
m
·- · ~ J Wl - ,~
CT280-IOC,CT380-IDC.CT380-FX CT180,CT18<l-T2, <=n80
8 Connect speaker cables by pushing
down on the terminals and clamping
the bare wire in the through hole.
8 11gh t en 3 Tr i- Gr ip sc r ews on the
in ceil in g models or the 6 Tr i-Grip
sc re ws on th e in wa ll mode ls .
See ove r
& t ig ht~ning
warn 1n g.
f) Cut around marked li ne
0 Gu i de speake r into cu t out
G Fit gri l les. They are he ld in pl ace
magnetically and should 'snap' into
p lace.
•
-
