NOTE:
The "STANDARD" damper is to be used with
extension kits up to a total overall length of 73
inches and a 1 bend (90° elbow)
The "EXTENSION" damper must be used when
extension kit or kits exceed 20 inches and 2 or 3
bends are used.
Step 15: Recheck the Heater
Before proceeding, check again to be sure there are
no flammable materials close to the heater. Check to
be sure the heater is level.
Examine the flue pipe to be sure connections are tight.
Step 13: Install the Flue Pipe Holder
Place the ring of the flue pipe holder around the flue
pipe. The other side of the holder hooks in a slot
directly above the joint pipe at the rear of the heater
(see Figure 20).

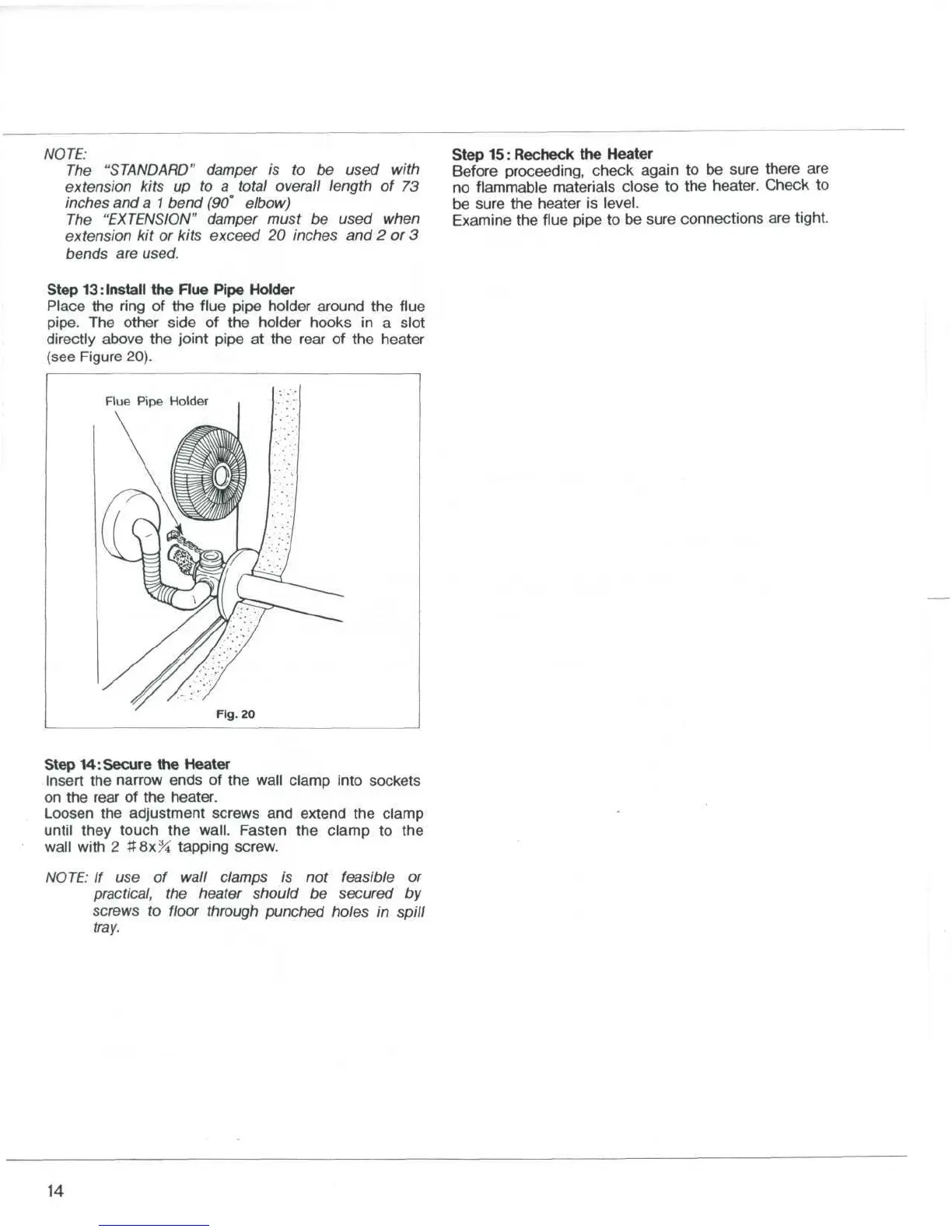

Flue Pipe Holder
Fig. 20
Step 14: Secure the Heater
Insert the narrow ends of the wall clamp into sockets
on the rear of the heater.
Loosen the adjustment screws and extend the clamp
until they touch the wall. Fasten the clamp to the
wall with 2 #8x% tapping screw.
NOTE: If use of wall clamps is not feasible or
practical, the heater should be secured by
screws to floor through punched holes in spill
tray.
