Part 1 | Section 1 | Motors and Elements (FG150)

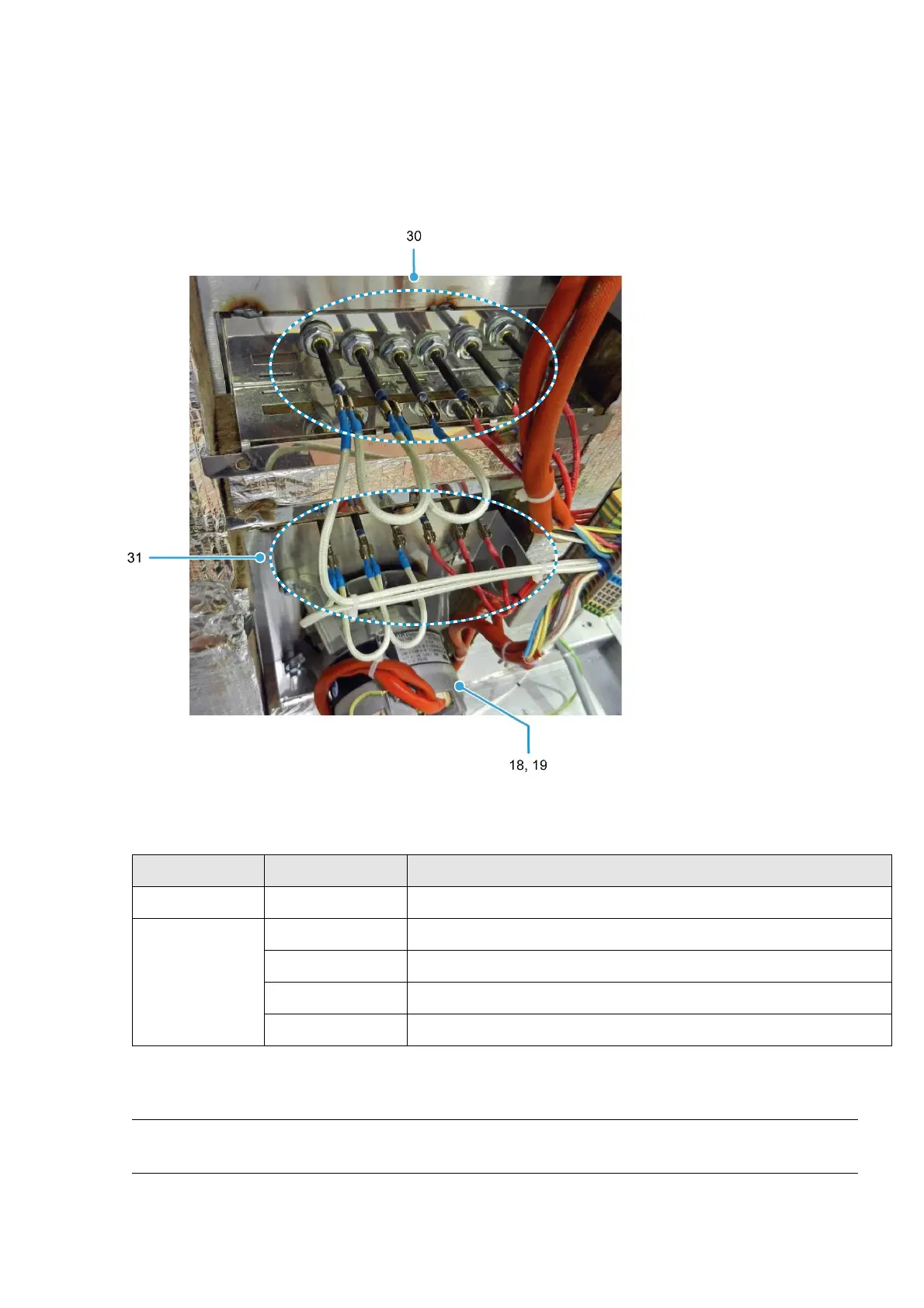

Figure 11: Motors and Elements (FG150) – 1
Table 4: Item numbers in Figure 11
Item Number Part Number Part Description
18, 19
(1)
B720-74-005 Fan motors
30, 31 B847-04-068 Heating element 240 Vac for 8 kW oven
B847-04-073 Heating element 220 Vac for 8 kW oven
B847-04-067 Heating element 240 Vac for 7 kW oven
B847-04-074 Heating element 220 Vac for 7 kW oven
(1)
Top not shown.
NOTE
Part numbers are referenced from electrical drawing M1500E25-75100 in the Electrical Manual.
