Part 2 | Section 4 | Water/Steam System (FG159)

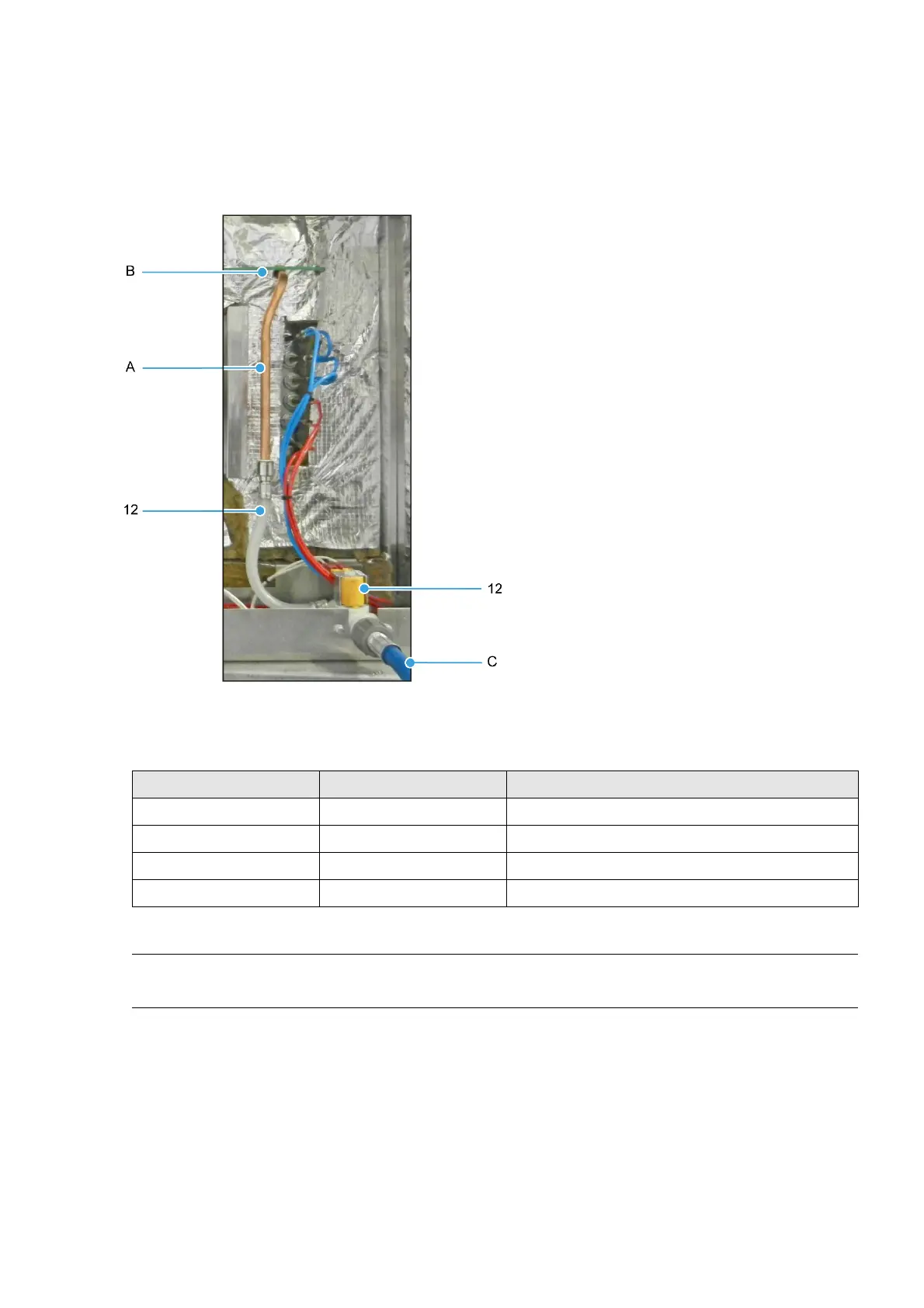

Figure 22: Water/Steam System (FG159) – 1
Table 14: Item numbers in Figure 22
Item Number Part Number Part Description
12 158-17-00400 Water inlet assembly (including hose)
A A900-34-253 Copper pipe (10 mm OD x 20 SWG)
B A900-34-321 Bulkhead coupling (under insulation)
C A900-34-087 Hose – blue
NOTE
Part numbers are referenced from electrical drawing M159E25-75000 in the Electrical Manual.
