Installation and Operation Manual Eco Convection Ovens | 4/5/7/10-Tray | Steam
FG1BX-UK-MAN-0100 | Rev. A23 (March 2023) MONO
67
Part 3 | Section 4 | Water/Steam System (FG158)

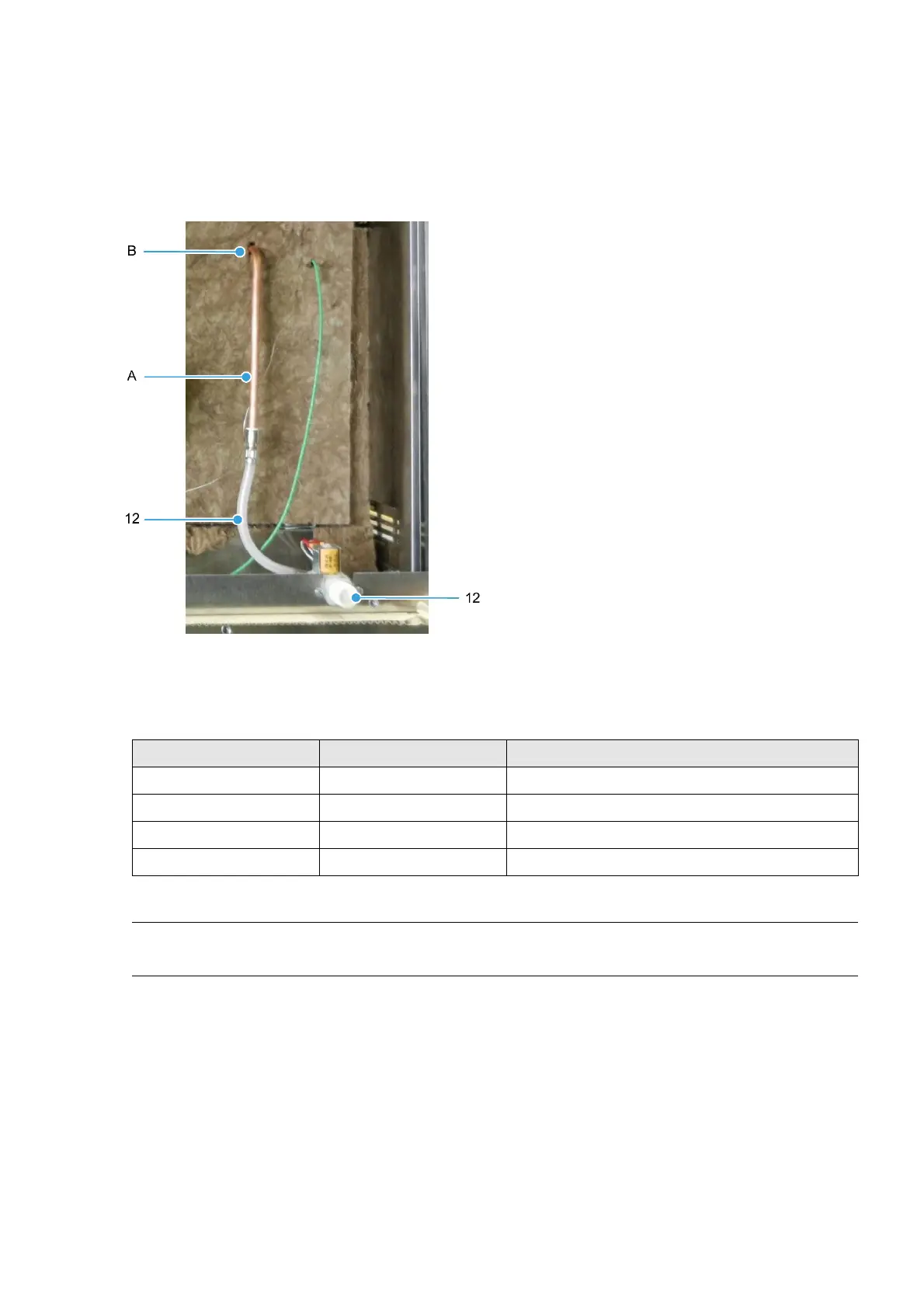

Figure 29: Water/Steam System (FG158) – 1
Table 20: Item numbers in Figure 29
Item Number Part Number Part Description
12 158-17-00400 Water inlet assembly (including hose)
A A900-34-253 Copper pipe (10 mm OD x 20 SWG)
B A900-34-321 Bulkhead coupling (under insulation)
N/A A900-34-087 Hose – blue (not shown)
NOTE
Part numbers are referenced from electrical drawing M158E25-75200 in the Electrical Manual.
